| Model | DTF600A | Brand | ZYJJ | Appearance | Light Cyan | Ink Type | DTF Ink | Cartridge | Continuous Ink Supply System |
| Printhead | XP600 * 2 | Ink Capacity | 1000ML | Ink Color | K,C,M,Y,LC,LM,W | Paper Type | PTE Membrane | Heating Method | Two-Stage Heating |
| Print Direction | Bi / Uni-Direction | Nozzle Config | 1080 / 6 Rows | Print Size | 600mm | Print Software | Better Print | Mapping Software | Maintop |
| Connection Port | 3.0USB Port | Print Method | Continuous Roll | Operating System | Windows 7/10/11 | Package Size | 1800 * 750 * 640mm | Body Size | 1720 * 680 * 570mm |
| Gross Weight | 131.5kg（130 + 1.5） | Net Weight | 130kg | Power Req. | AC220V / 110V +/-10% 50/60HZ 1000W |
Printing Speed | 4Pass: 8m²/h 6Pass: 5㎡/h 8Pass: 3.8㎡/h |
Print Resolution | 4Pass: 540dpi 6Pass: 720dpi 8Pass: 1440dpi |
Swipe →

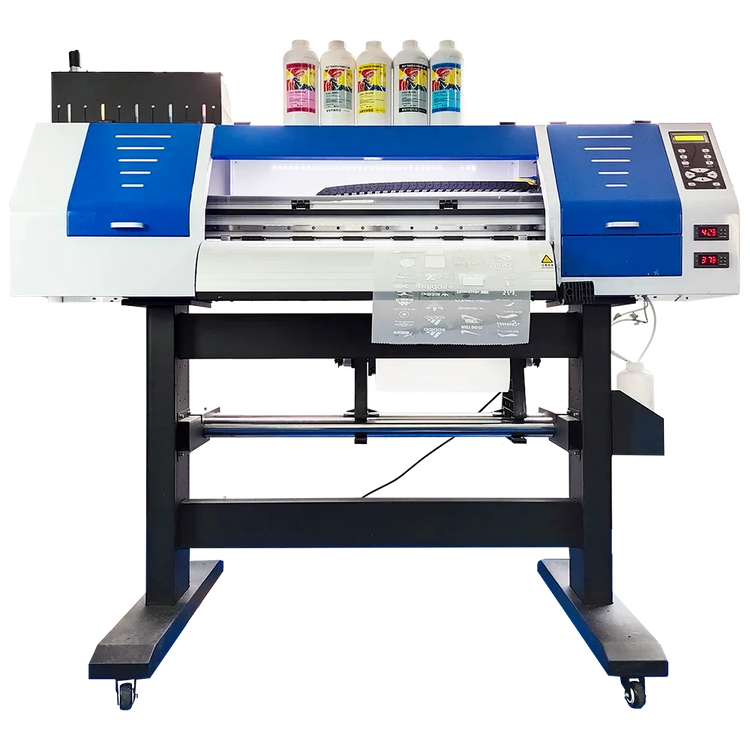

DTF600A Wide Format DTF Printer Features
1
Smart Ink Circulation System
Unlike the white ink circulation system, this ink circulation system keeps the ink flowing continuously and reduces nozzle clogging.
2
High Precision Aluminum Platforms
The internal aluminum alloy frame and slide rail ensure more stable lateral accuracy while printing quietly.
3
Intelligent Ink Supply System
Intelligent switch blocking, no ink flow after stopping. With white ink stirring system, stirring at intervals after shutdown.
4
Printhead Ink Cart Compartment
Easy to disassemble design for easy replacement and cleaning. Built-in multi-slots, can be replaced and adjusted at will.
1
2
3
4
5
6
7
8
5
Printhead Cleaning Station
Built-in print head cleaning bin for easy maintenance after long printing downtime. Automatic/manual cleaning mode is selectable.
6
Smart Suction/Temperature Regulation
Free to adjust suction strength, better adapt to material printing. The heated platform ensures the film is free of excess moisture.
7
Waste Ink Processing Unit
Solves Issues of Damaged Pipelines Caused by Old-style Buckles. Reduce ink tube breakage and ink leakage issues.
8
Adjustable Roller Device
Manually adjustable roll fixtures to switch film rolls at will. Built-in detailed scale, accurate to the millimeter.

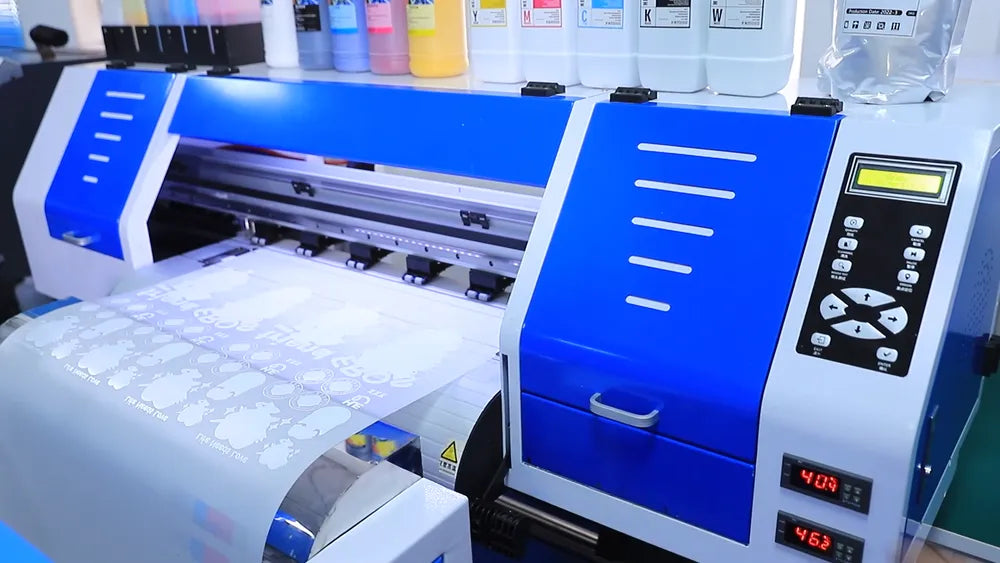

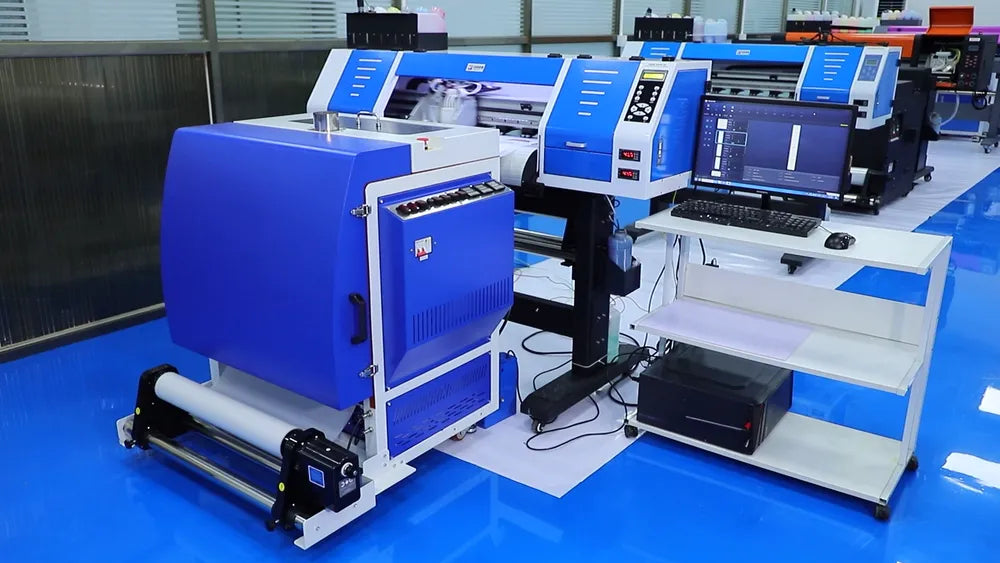

Product Video
Printing Process 1
Printing Process 2
Printing Process 3
Printing Process 1
Printing Process 2
Printing Process 3
Sustained Production Through Stable Operations

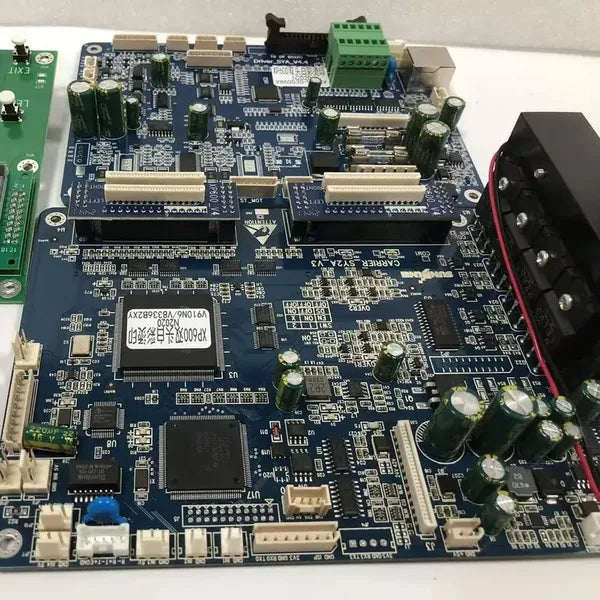

Adopts high quality electronic components to ensure stable output even in long time continuous work and reduce the risk of downtime. Support long time 24/7 operation. Meet the production requirements.

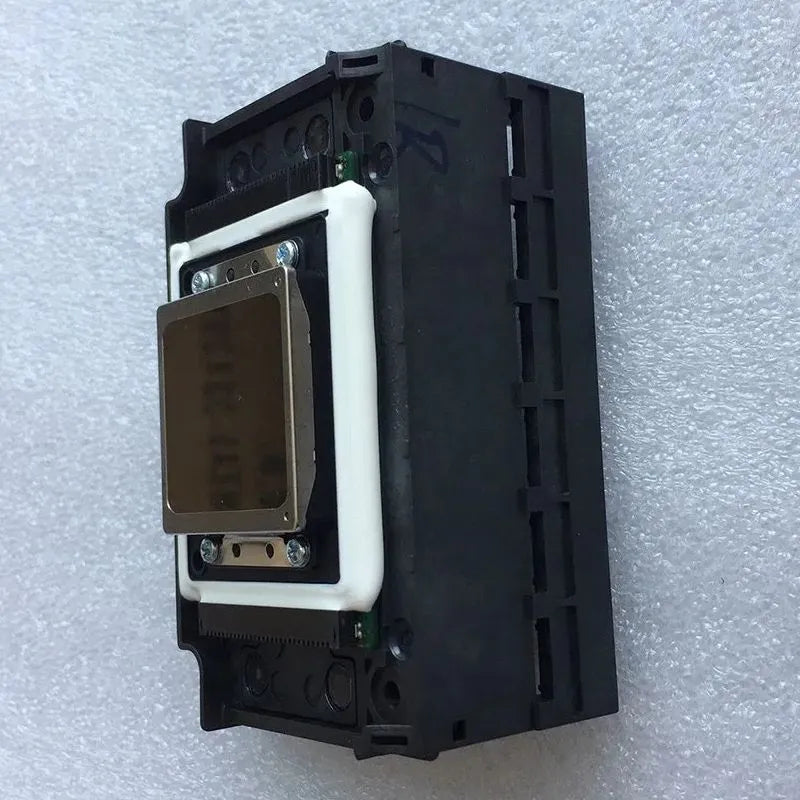

Original Printheads, Quality Verified
Brand new & original printhead boasting longevity and exceptional stability. Not an assembled/refurbished unit, ensuring a low failure rate. Original serial number/anti-counterfeit authentication provided. We guarantee a replacement for any non-artificial damage within one year.
Wide-Format DTF Printing Equipment Comparison
DTF600A
$2,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)27%
Printing Stability (8h Continuous)61%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)23%
Stable Printing, Value Money
More stable printing at the same width, suitable for small-scale production. Consider the optimal solution of price and performance.
DTF600B
$4,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)40%
Printing Stability (8h Continuous)70%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)36%
Fast Printing, Medium Efficiency
Combine print speed with control over production capacity. The choice for small- to medium-scale production.
DTF600T
$6,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)85%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)90%
Layer Printing (1 Layer Per 33%)100%
Operation Simplicity (1 - 10 Level)75%
Maintenance Freq. (Lower = Better)36%
Daily Output (30m²/h * 8h/day)80%
Most Efficient, Most Powerful
Wider color gamut support and faster printing speeds to accommodate all high-volume production needs.
DTF600A
$2,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)27%
Printing Stability (8h Continuous)61%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)23%
Stable Printing, Value Money
More stable printing at the same width, suitable for small-scale production. Consider the optimal solution of price and performance.
DTF600B
$4,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)40%
Printing Stability (8h Continuous)70%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)36%
Fast Printing, Medium Efficiency
Combine print speed with control over production capacity. The choice for small- to medium-scale production.
DTF600T
$6,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)85%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)90%
Layer Printing (1 Layer Per 33%)100%
Operation Simplicity (1 - 10 Level)75%
Maintenance Freq. (Lower = Better)36%
Daily Output (30m²/h * 8h/day)80%
Most Efficient, Most Powerful
Wider color gamut support and faster printing speeds to accommodate all high-volume production needs.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| DTF600A DTF Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Bracket | 1 Set |
| Printhead XP600 | 2 Pcs | Ink Damper |
16 Pcs (6 Included, 10 Spares) |
Product Manuals | 1 Pcs |
| Feeder System + Secondary Ink Tank | 2 Set | Accessories Kit | 1 Kit | Product Certificate + Warranty Card | 2 Pcs |
| Waste Ink Device | 1 Set | Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line |
| 1000ML Ink Set (C/M/Y/K/W*2) | 1 Set | Accessory Screw Bag | 1 Set | Power Cable | 1 Line |

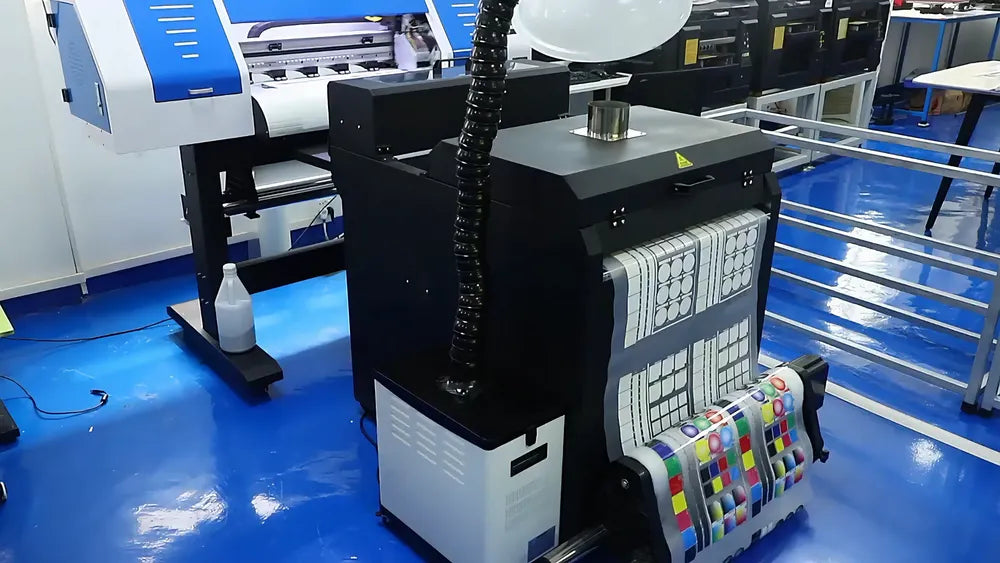

💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does DTF600A Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements.
Does It Support Installment?
Installment payments are not currently supported online. Please contact us if you wish to pay in installments.
Can The Print Head Of The Printer Be Replaced?
This printer fixes the printer head of the XP600 series, so it is not possible to change the printer head. You can check out other printers with different printheads to find one that suits you better.
Does It Need Ventilation?
If you are purchasing a kit with a jitterbug, then it needs to be vented. If it's just the printer, you can consider venting or not depending on the situation.
Is Professional Engineer Installation Required?
We will provide full installation instruction to you. There is no need for you to have an engineer visit your home. We can call an engineer to your home for free if required.
Is The Set With The Powder Shaker Easy To Install?
It's not going to be hard to install, a jitterbug is going to be easier to install than a printer, it's just going to be more steps.
How Much Space Needs To Be Reserved?
You can make an estimate based on the package dimensions above. Based on a length of 180cm, you will need at least 200 - 230cm of space for the printer.
Do I Need To Wait For The First Boot?
It takes some time to check before the first start-up, if not, the start-up is normally around 3-5 minutes.
Do You Provide ICC Profiles?
Provides ICC and RIP presets for commonly used materials; redoing linearity and ICC is recommended when using third-party inks/films.
Can I Use Third-Party Ink?
Feel free to use it, please take care to perform replacement cleaning and change ICC curves.
Which Design Software Is Supported?
AI / PS / CorelDRAW export common formats (PNG / TIFF / PDF); RIP import can be.
How To Prevent White Ink Printhead Clogs?
Built-in circulation and automatic agitation; daily/weekly maintenance according to SOPs significantly reduces risk.
Daily/Weekly/Monthly Maintenance Tips?
Day: nozzle inspection, wiping nozzle scraper; week: waste ink bin/cover station deep cleaning; month: line/pump inspection and datum calibration.
What Is The Lifespan Of Various Wear Parts?
Squeegees/sponges are replaced according to wear and tear, and dampers/ink tubes are replaced according to length and condition; printheads are precision parts, and their life and maintenance are related to ink quality.
What If The Downtime Exceeds One Week?
Perform long term shutdown moisturizing/sealing process as per manual, do line and nozzle restoration before restart.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does DTF600A Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements.
Does It Support Installment?
Installment payments are not currently supported online. Please contact us if you wish to pay in installments.
Can The Print Head Of The Printer Be Replaced?
This printer fixes the printer head of the XP600 series, so it is not possible to change the printer head. You can check out other printers with different printheads to find one that suits you better.
Does It Need Ventilation?
If you are purchasing a kit with a jitterbug, then it needs to be vented. If it's just the printer, you can consider venting or not depending on the situation.
Is Professional Engineer Installation Required?
We will provide full installation instruction to you. There is no need for you to have an engineer visit your home. We can call an engineer to your home for free if required.
Is The Set With The Powder Shaker Easy To Install?
It's not going to be hard to install, a jitterbug is going to be easier to install than a printer, it's just going to be more steps.
How Much Space Needs To Be Reserved?
You can make an estimate based on the package dimensions above. Based on a length of 180cm, you will need at least 200 - 230cm of space for the printer.
Do I Need To Wait For The First Boot?
It takes some time to check before the first start-up, if not, the start-up is normally around 3-5 minutes.
Do You Provide ICC Profiles?
Provides ICC and RIP presets for commonly used materials; redoing linearity and ICC is recommended when using third-party inks/films.
Can I Use Third-Party Ink?
Feel free to use it, please take care to perform replacement cleaning and change ICC curves.
Which Design Software Is Supported?
AI / PS / CorelDRAW export common formats (PNG / TIFF / PDF); RIP import can be.
How To Prevent White Ink Printhead Clogs?
Built-in circulation and automatic agitation; daily/weekly maintenance according to SOPs significantly reduces risk.
Daily/Weekly/Monthly Maintenance Tips?
Day: nozzle inspection, wiping nozzle scraper; week: waste ink bin/cover station deep cleaning; month: line/pump inspection and datum calibration.
What Is The Lifespan Of Various Wear Parts?
Squeegees/sponges are replaced according to wear and tear, and dampers/ink tubes are replaced according to length and condition; printheads are precision parts, and their life and maintenance are related to ink quality.
What If The Downtime Exceeds One Week?
Perform long term shutdown moisturizing/sealing process as per manual, do line and nozzle restoration before restart.
Why Choose Us
Medium-Sized Package
Violence Collision Test
Small-Sized Package
Anti-Collision Test
Warranty
Two-year limited warranty for the entire unit (excluding easily damaged parts).
Support
Remote diagnostics and video guidance, with a 12-hour response time.
Training
Start-up installation and basic training; provide maintenance SOPs and video tutorials.
Production
Professionally managed assembly ensures flawless execution from the outside in.
Accreditation
Provide CE / RoHS / ISO / EMC / LVD / OEKO TEX Verified certificates.
Inspection
Comprehensive Testing to Ensure Reliable and Consistent Performance.
