Medium-Sized Package
Anti-Collision Test
| Model | DTF600T | Brand | ZYJJ | Appearance | Dark Grayish Blue | Ink Type | DTF Ink | Cartridge | Continuous Ink Supply System |
| Printhead | I3200 * 2 | Ink Capacity | 1000ML | Ink Color | K,C,M,Y,W, R,G,B,OR |
Paper Type | PTE Membrane | Heating Method | Two-Stage Heating |
| Print Direction | Bi / Uni-Direction | Nozzle Config | 3200 / 8 Rows | Print Size | 600mm | Print Software | Honson | Mapping Software | Maintop |
| Connection Port | 1000 Megabit Ethernet Port |
Print Method | Continuous Roll | Operating System | Windows 7/10/11 | Package Size | 1880 * 880 * 740mm | Body Size | 1750 * 750 * 620mm |
| Gross Weight | 245kg | Net Weight | 215kg | Power Req. | AC220V / 110V +/-10% 50/60HZ 1000W |
Printing Speed | 4Pass: 25.5m²/h 6Pass: 22㎡/h 8Pass: 18㎡/h |
Print Resolution | 4Pass: 540dpi 6Pass: 720dpi 8Pass: 1440dpi |
Swipe →

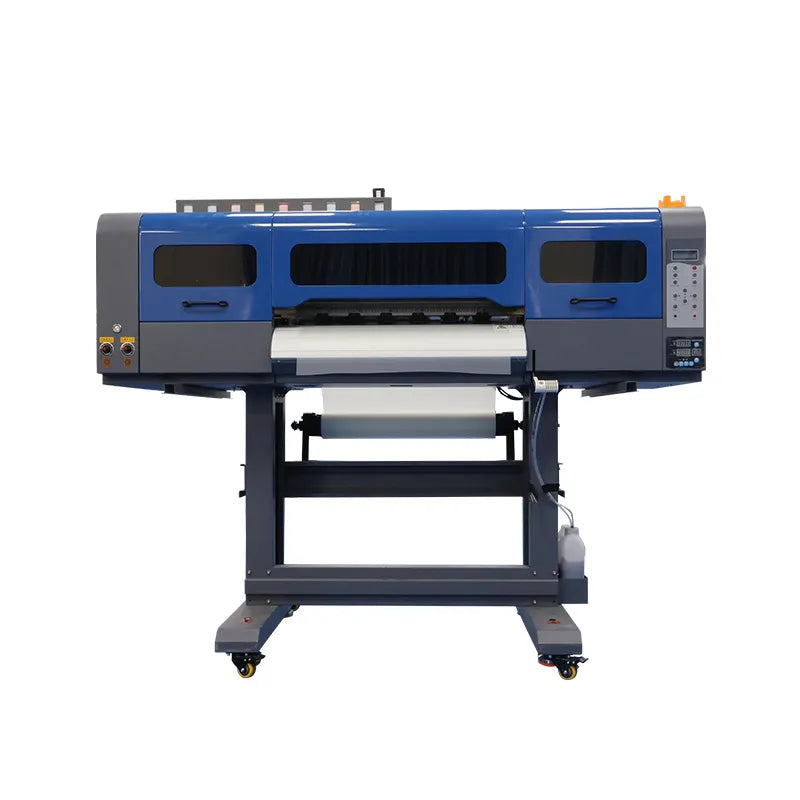

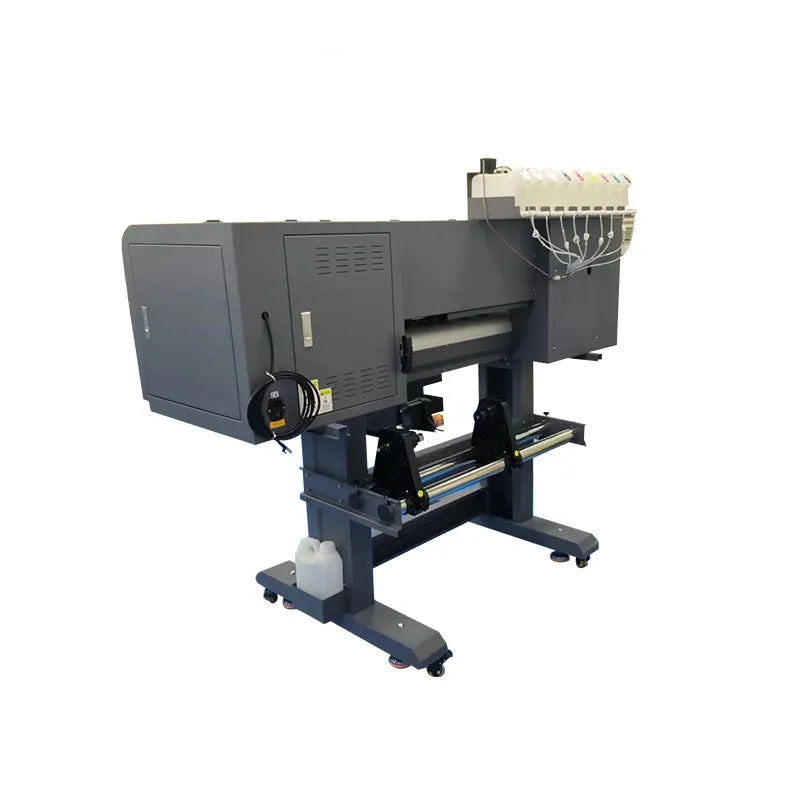

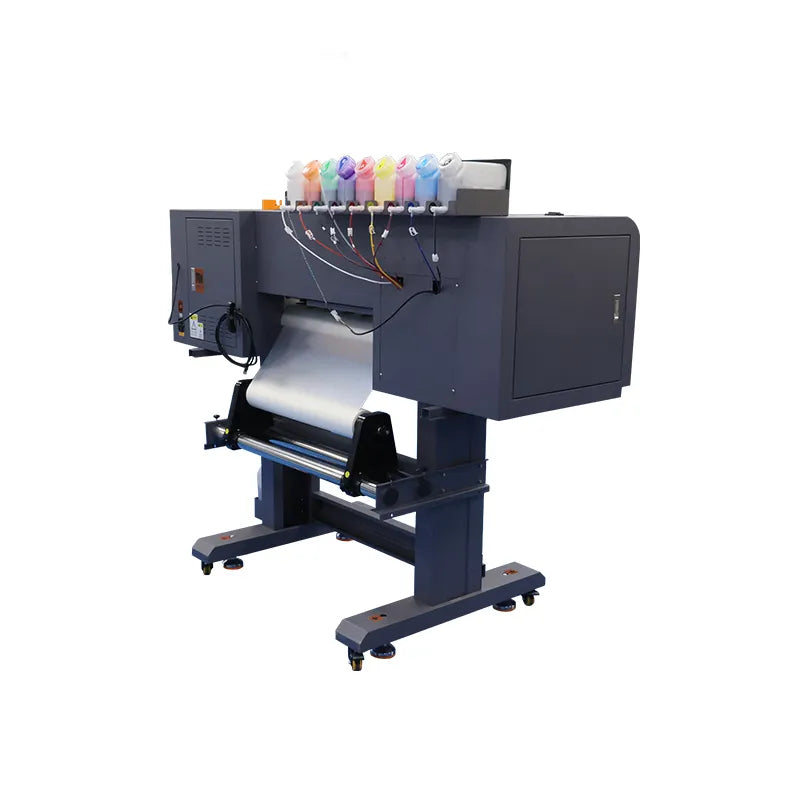

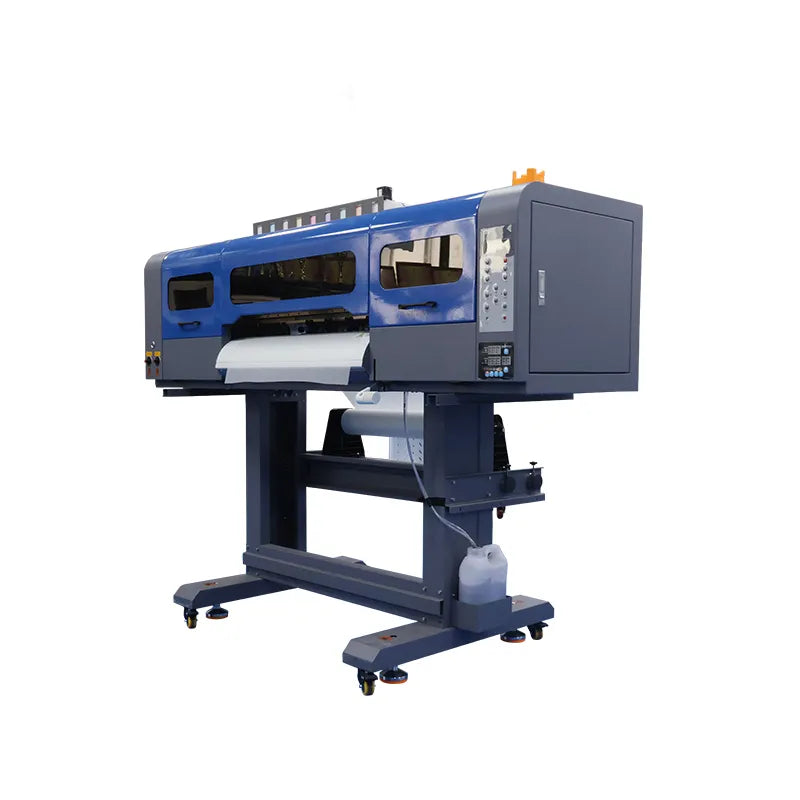

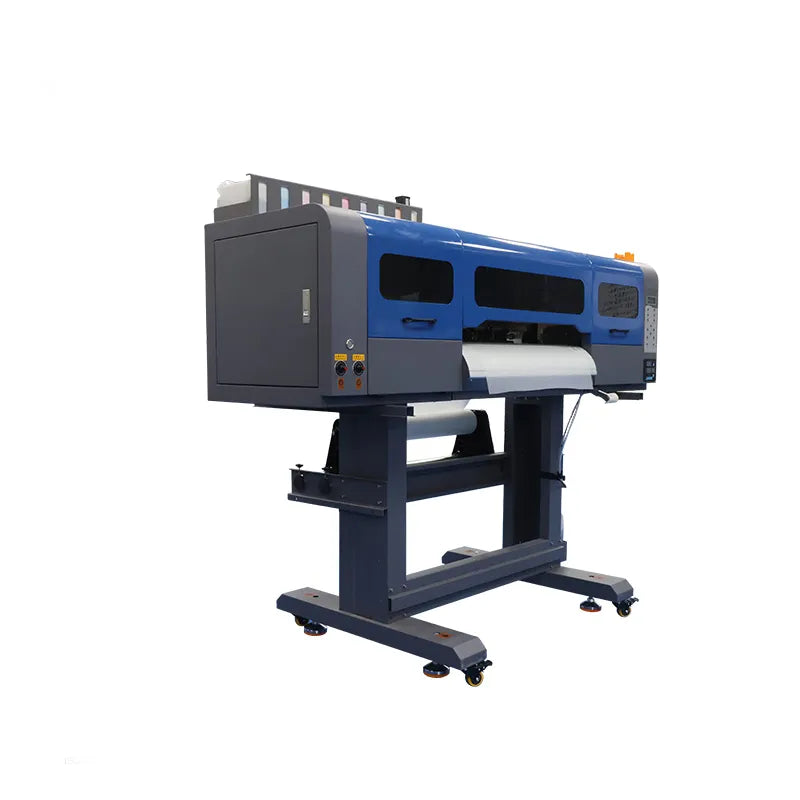

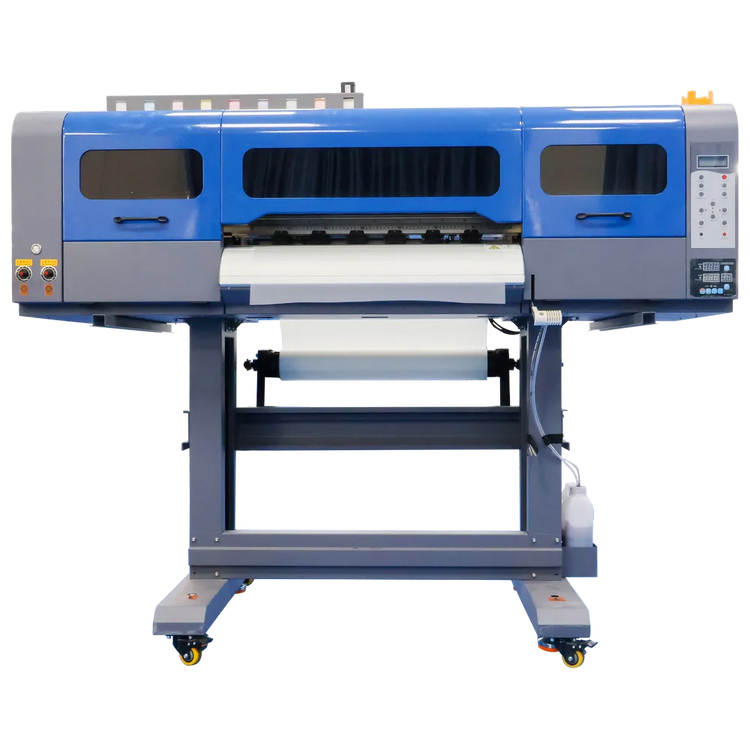

DTF600T Wide Format DTF Printer Features
1
Equipped Advanced Printer Boards
Adopts Honson's top boards for stronger and more stable performance. Efficiently complete the job.
2
Smart Paper Sensing System
With paper sensing system, you can detect whether there is paper or not.
3
Ink Station Adjustment System
Ink stack can be manually adjusted height, more convenient maintenance.
4
Emergency Switching System
Equipped with emergency switch, fault can be arbitrary emergency stops.
5
High Quality Alloy Slide Rail Frame
High-quality materials combined with a stable structure ensure quiet and reliable operation.
1
2
3
4
5
6
7
8
9
10
6
Smart Ink Control System
Equipped with ink chuck to prevent ink from flowing back when the equipment is closed.
7

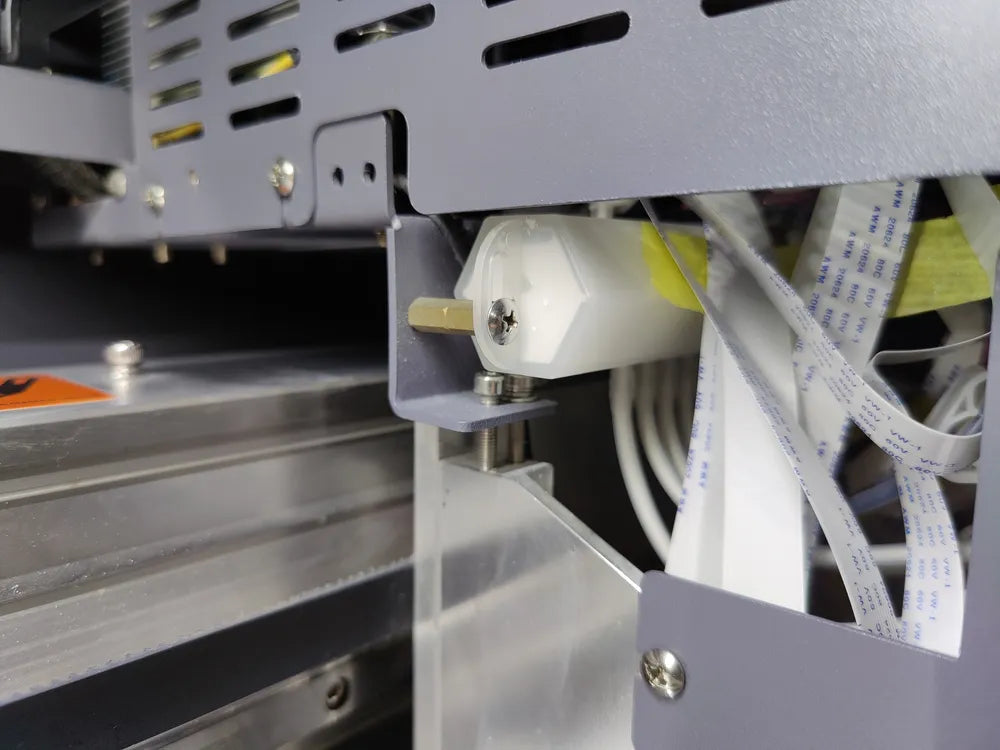

Smart Ink Circulation System
One-touch ink recirculation ensures that ink flows at all times and reduce ink sedimentation.
8
Ink Channel Circulation Switch
Dual white ink channel switch for more efficient white ink output, increasing speed and production.
9

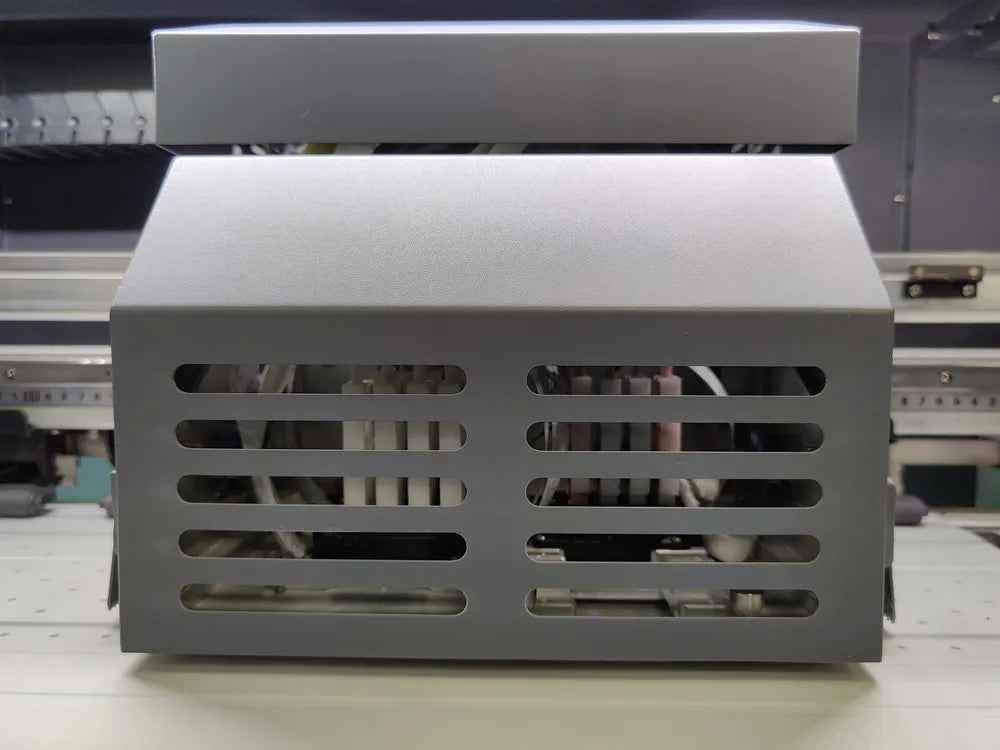

Printhead Cleaning Warehouse
One-touch access to the print head cleaning mode eliminates manual cleaning with a simple step.
10
Smart Heated & Suction System
Heating and vacuum system to ensure the film is moisture-free, aligned, and prints smoothly.
-

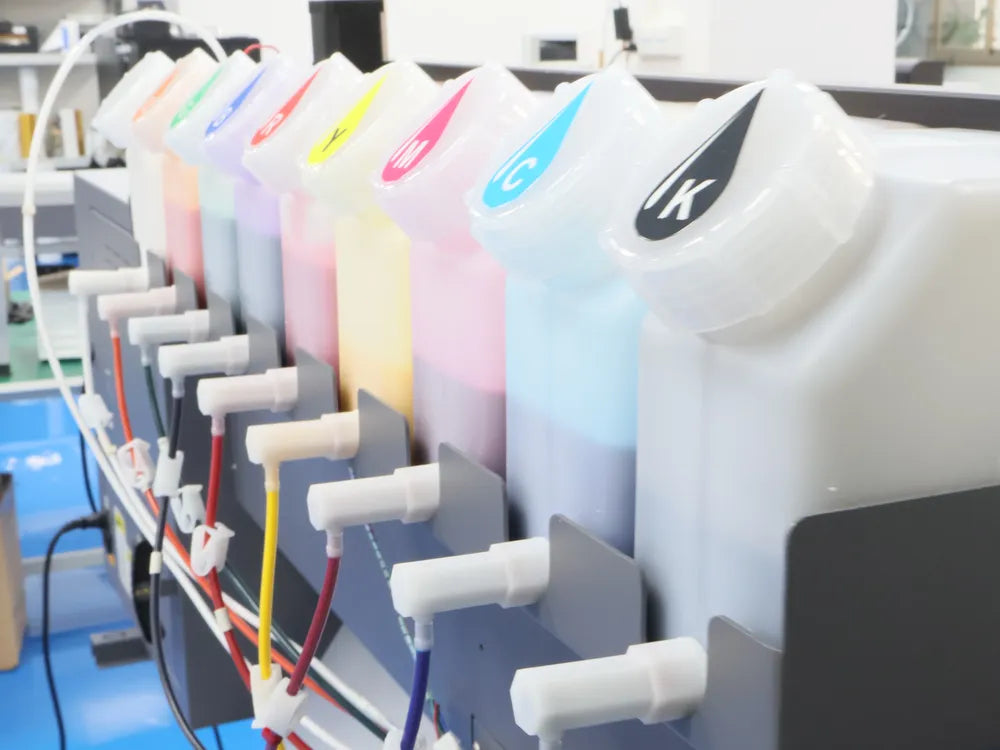

Large Capacity Output
High-Capacity Ink Tank Reduces The Frequency Of Refills. Built-In White Ink Circulation Effectively Prevents White Ink Sedimentation.
-
Expandable Print Head
Expandable Ink Cart Design, Supports Additional Printheads To Improve Output. Anti-Collision Design At Both Ends Reduces Film Slides.
-
Ink Supply Splitter
Equipped with a built-in ink supply splitter unit, it ensures a stable and continuous ink supply during high-volume printing, mitigating the risk of clogging.
-

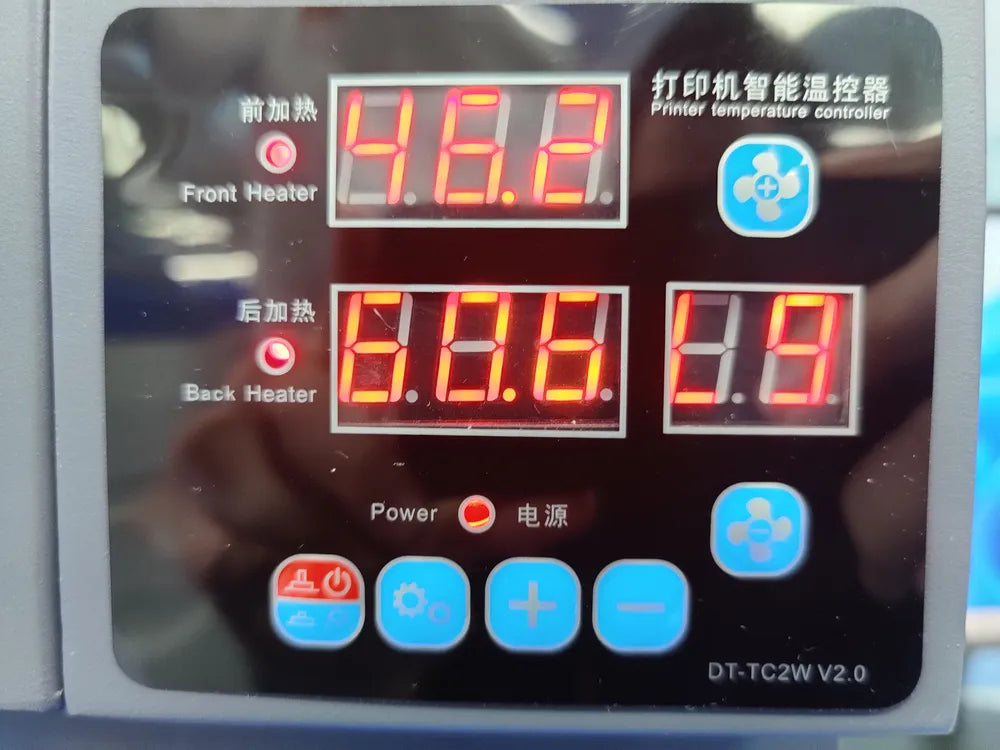

Front/Rear Dual Heating
Front-And-Rear Section Heating Systems Ensure A Moisture-Free Membrane Surface, Prevents Ink Bleeding After Being Covered By White Ink.

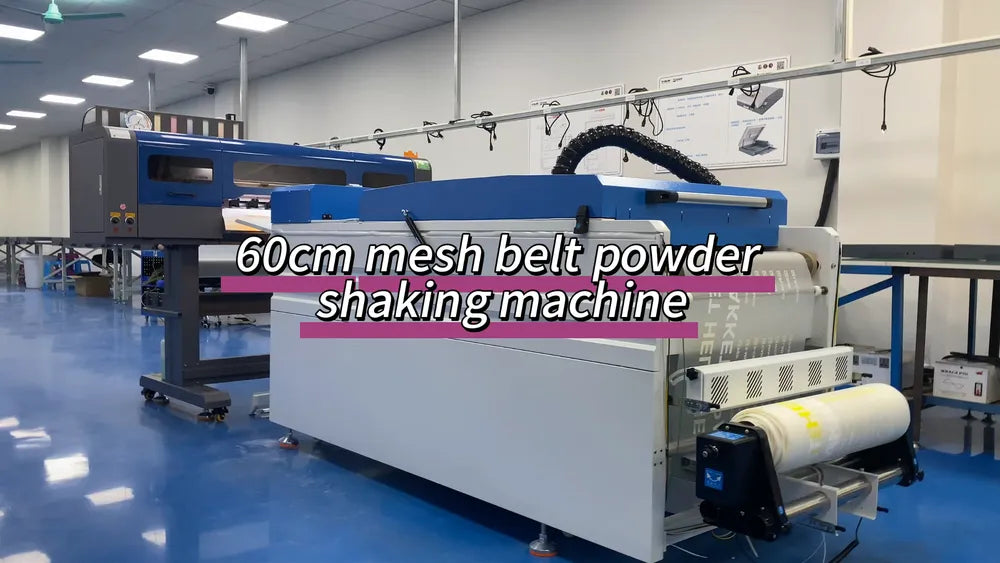

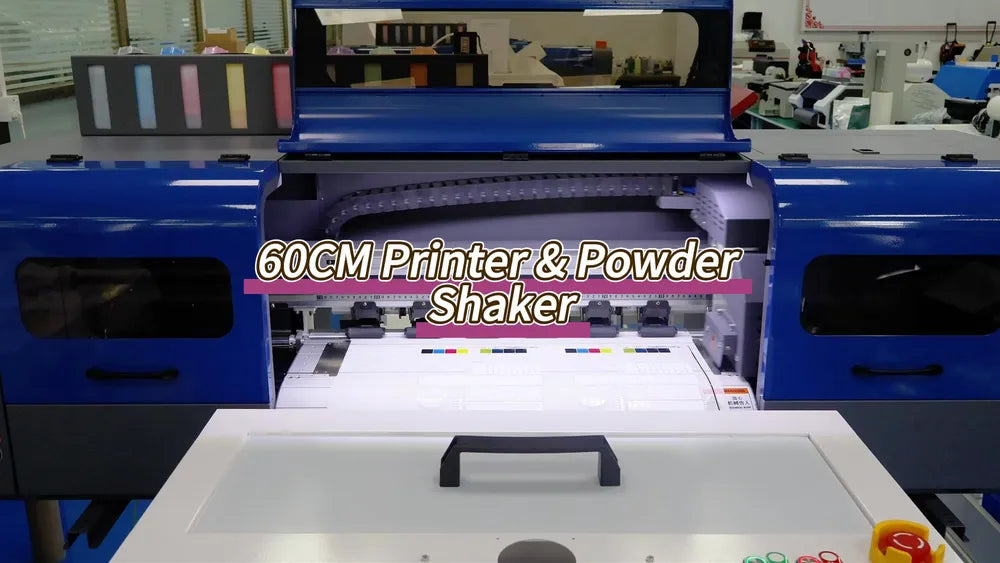

Product Video

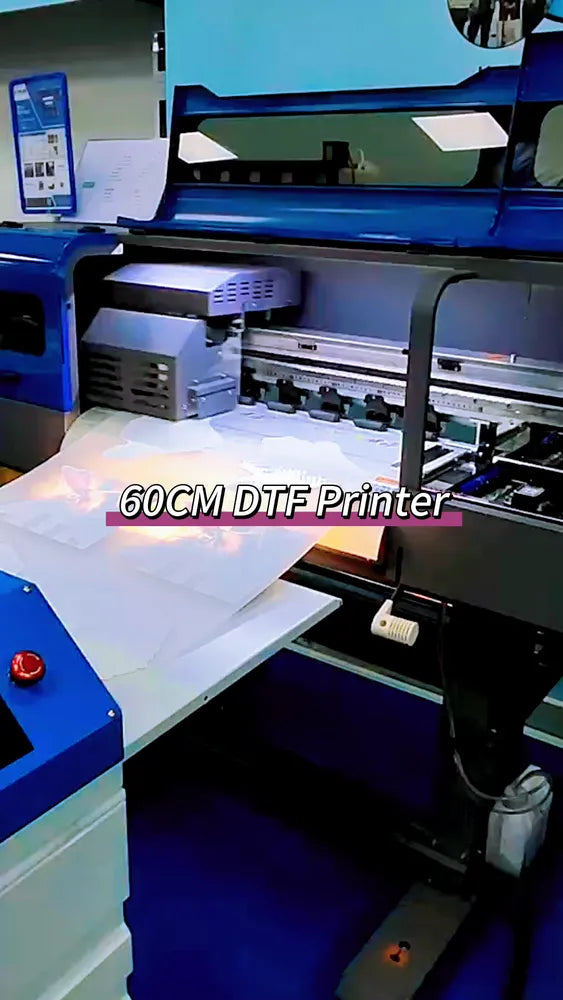

Set 2 Printing Process Show
Vertical Screen Clip
Set 3 Printing Process Show
Set 2 Printing Process Show
Vertical Screen Clip
Set 3 Printing Process Show
Feel The Difference In Color Levels!
Vivid Colors
Bright, Rich, Lifelike Tones
Sharp Contrast
Clear Lines, Stronger Details
High Brightness
Vibrant Glow, Eye-Catching Finish
Vivid Colors
Bright, Rich, Lifelike Tones
Sharp Contrast
Clear Lines, Stronger Details
High Brightness
Vibrant Glow, Eye-Catching Finish
Crisp Lines
Precise Edges, No Bluring
Durable Print
Long-Lasting, Fade-Resistant
Smooth Gradients
Natural Blending Without Banding
Crisp Lines
Precise Edges, No Bluring
Durable Print
Long-Lasting, Fade-Resistant
Smooth Gradients
Natural Blending Without Banding
Wide-Format DTF Printing Equipment Comparison
DTF600T
$6,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)85%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)90%
Layer Printing (1 Layer Per 33%)100%
Operation Simplicity (1 - 10 Level)75%
Maintenance Freq. (Lower = Better)36%
Daily Output (30m²/h * 8h/day)80%
Most Efficient, Most Powerful
Wider color gamut support and faster printing speeds to accommodate all high-volume production needs.

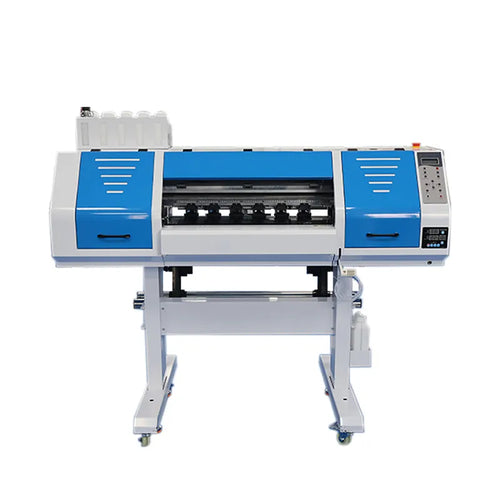

DTF600B
$4,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)40%
Printing Stability (8h Continuous)70%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)36%
Fast Printing, Medium Efficiency
Combine print speed with control over production capacity. The choice for small- to medium-scale production.

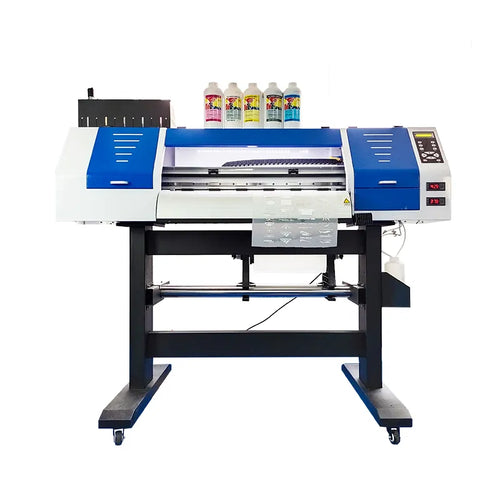

DTF600A
$2,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)27%
Printing Stability (8h Continuous)61%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)23%
Stable Printing, Value Money
More stable printing at the same width, suitable for small-scale production. Consider the optimal solution of price and performance.
DTF600T
$6,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)85%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)90%
Layer Printing (1 Layer Per 33%)100%
Operation Simplicity (1 - 10 Level)75%
Maintenance Freq. (Lower = Better)36%
Daily Output (30m²/h * 8h/day)80%
Most Efficient, Most Powerful
Wider color gamut support and faster printing speeds to accommodate all high-volume production needs.
DTF600B
$4,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)40%
Printing Stability (8h Continuous)70%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)36%
Fast Printing, Medium Efficiency
Combine print speed with control over production capacity. The choice for small- to medium-scale production.
DTF600A
$2,900.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 30m²/h)27%
Printing Stability (8h Continuous)61%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)50%
Daily Output (30m²/h * 8h/day)23%
Stable Printing, Value Money
More stable printing at the same width, suitable for small-scale production. Consider the optimal solution of price and performance.
Production Capacity & Cost Analysis
| Coverage | Pcs/hr | Sq.m/day | Time/Pcs | Ink $/Pcs |
Film $/Pcs |
Powder $/Pcs |
Total $/Pcs |
ROI Hint |
|---|---|---|---|---|---|---|---|---|
| Low (~30%) |
240 | 300 | 1.2 min | 0.26 | 0.60 | 0.30 | 1.16 | Best Value |
| Medium (~60%) |
214 | 268 | 1.3 min | 0.42 | 0.60 | 0.30 | 1.32 | Balanced |
| High (~90%) |
191 | 234 | 1.6 min | 0.62 | 0.60 | 0.30 | 1.52 | Price-Up |
| Full (100%) |
168 | 206 | 2.0 min | 0.72 | 0.60 | 0.30 | 1.62 | Premium |
Actual production capacity and cost depend on factors such as substrate size, pretreatment methods, operational efficiency, and energy consumption.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| DTF600T DTF Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Printhead I3200 | 2 Pcs |
| Bracket | 1 Set | Ink Damper | 18 Pcs (9 Included, 9 Spares) |
Product Manuals | 1 Pcs |
| Feeder System | 1 Set | Accessories Kit | 1 Kit | Product Certificate + Warranty Card | 2 Pcs |
| Waste Ink Device | 1 Set | Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line |
| 1000ML Ink Set (C/M/Y/K/W/R/G/B/OR) | 1 Set | Assembly Accessory Bag | 1 Set | Power Cable | 1 Line |
| Maintenance Kit (Cleaning Solution & Moisturizer) | 1 Set | Printhead Cable | 18 Pcs (9 Included, 9 Spares) |
Connectors (Y-Tee + Straight) | 2 Pack |

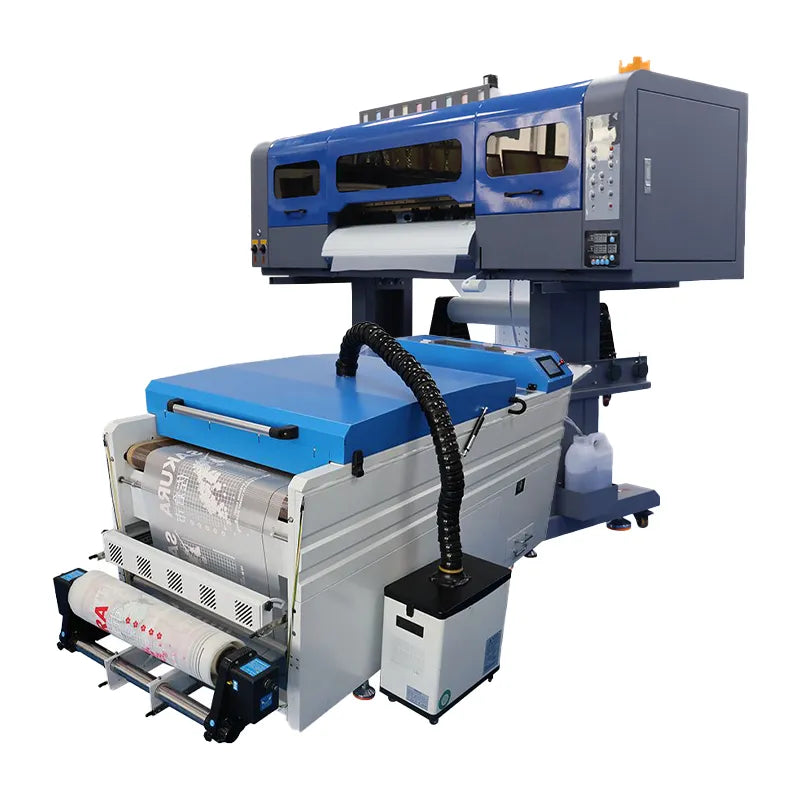

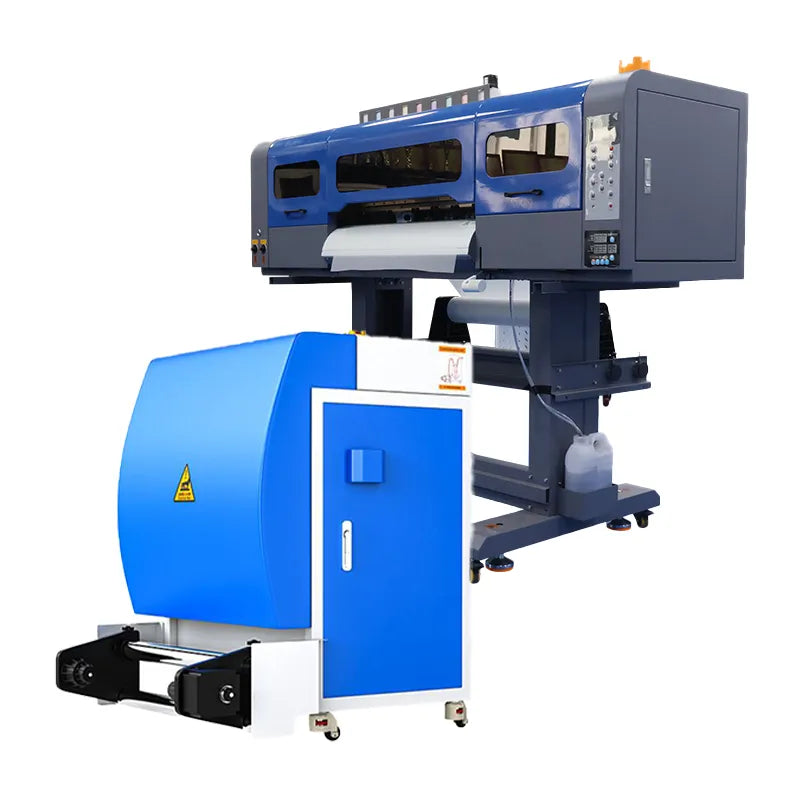

💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does DTF600T Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
Installment payments are not currently supported for online purchases. Please contact us if you wish to pay in installments.
What Is The Delivery Time?
Standard delivery is 15–25 working days, depending on order quantity and customization needs.
What Are the Space Requirements?
The recommended space requirement is about 3.0 m × 2.5 m (≈7.5 ㎡). Although the packaging size of the printer is 1.88 m × 0.88 m × 0.74 m, additional clearance is necessary for safe operation, ventilation, and maintenance. It is advised to leave at least 0.5 m on each side, 1.0 m at the front for material loading and user operation, and 0.6 m at the back for cabling and cooling. This setup ensures smooth workflow, easy servicing, and long-term stable performance.
Is Professional Engineer Installation Required?
You can do this remotely by following the manual/video, and if you need to come to your home, you can make an appointment (depending on area arrangements). Don't worry, we provide very detailed information.
Is Professional Electrician Installation Required?
Ordinary factory/studio power is sufficient; wiring and leveling according to the manual is sufficient to turn on the machine.
Is On-Site Installation Provided?
Yes, we provide on-site installation and training services for enterprise clients to ensure smooth setup.
How Long Does It Take From Power Up To Complete Printing?
First power-up (with printhead wetting/nozzle check) is about 10-15 minutes; daily re-power-up is faster. Printing averages 2-3 minutes depending on software settings.
Do You Provide ICC Profiles?
Provides ICC and RIP presets for commonly used materials; redoing linearity and ICC is recommended when using third-party inks/films.
Can I Use Third-Party Ink?
It is recommended to use supplies and ICCs that have been verified by the machine; unverified inks may affect stability and warranty terms.
Which Design Software Is Supported?
AI / PS / CorelDRAW export common formats (PNG / TIFF / PDF); RIP import can be.
How To Prevent White Ink Printhead Clogs?
Built-in circulation and automatic agitation; daily/weekly maintenance according to SOPs significantly reduces risk.
Daily/Weekly/Monthly Maintenance Tips?
Day: nozzle inspection, wiping nozzle scraper; week: waste ink bin/cover station deep cleaning; month: line/pump inspection and datum calibration.
What Is The Lifespan Of Various Wear Parts?
Squeegees/sponges are replaced according to wear and tear, and dampers/ink tubes are replaced according to length and condition; printheads are precision parts, and their life and maintenance are related to ink quality.
What If The Downtime Exceeds One Week?
Perform long term shutdown moisturizing/sealing process as per manual, do line and nozzle restoration before restart.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does DTF600T Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
Installment payments are not currently supported for online purchases. Please contact us if you wish to pay in installments.
What Is The Delivery Time?
Standard delivery is 15–25 working days, depending on order quantity and customization needs.
What Are the Space Requirements?
The recommended space requirement is about 3.0 m × 2.5 m (≈7.5 ㎡). Although the packaging size of the printer is 1.88 m × 0.88 m × 0.74 m, additional clearance is necessary for safe operation, ventilation, and maintenance. It is advised to leave at least 0.5 m on each side, 1.0 m at the front for material loading and user operation, and 0.6 m at the back for cabling and cooling. This setup ensures smooth workflow, easy servicing, and long-term stable performance.
Is Professional Engineer Installation Required?
You can do this remotely by following the manual/video, and if you need to come to your home, you can make an appointment (depending on area arrangements). Don't worry, we provide very detailed information.
Is Professional Electrician Installation Required?
Ordinary factory/studio power is sufficient; wiring and leveling according to the manual is sufficient to turn on the machine.
Is On-Site Installation Provided?
Yes, we provide on-site installation and training services for enterprise clients to ensure smooth setup.
How Long Does It Take From Power Up To Complete Printing?
First power-up (with printhead wetting/nozzle check) is about 10-15 minutes; daily re-power-up is faster. Printing averages 2-3 minutes depending on software settings.
Do You Provide ICC Profiles?
Provides ICC and RIP presets for commonly used materials; redoing linearity and ICC is recommended when using third-party inks/films.
Can I Use Third-Party Ink?
It is recommended to use supplies and ICCs that have been verified by the machine; unverified inks may affect stability and warranty terms.
Which Design Software Is Supported?
AI / PS / CorelDRAW export common formats (PNG / TIFF / PDF); RIP import can be.
How To Prevent White Ink Printhead Clogs?
Built-in circulation and automatic agitation; daily/weekly maintenance according to SOPs significantly reduces risk.
Daily/Weekly/Monthly Maintenance Tips?
Day: nozzle inspection, wiping nozzle scraper; week: waste ink bin/cover station deep cleaning; month: line/pump inspection and datum calibration.
What Is The Lifespan Of Various Wear Parts?
Squeegees/sponges are replaced according to wear and tear, and dampers/ink tubes are replaced according to length and condition; printheads are precision parts, and their life and maintenance are related to ink quality.
What If The Downtime Exceeds One Week?
Perform long term shutdown moisturizing/sealing process as per manual, do line and nozzle restoration before restart.
Why Choose Us
Medium-Sized Package
Violence Collision Test
Small-Sized Package
Anti-Collision Test
Warranty
Two-year limited warranty for the entire unit (excluding easily damaged parts).
Support
Remote diagnostics and video guidance, with a 12-hour response time.
Training
Start-up installation and basic training; provide maintenance SOPs and video tutorials.
Production
Professionally managed assembly ensures flawless execution from the outside in.
Accreditation
Provide CE / RoHS / ISO / EMC / LVD / OEKO TEX Verified certificates.
Inspection
Comprehensive Testing to Ensure Reliable and Consistent Performance.
