| Model | PL800 | Brand | ZYJJ | Ink Type | Pigment Ink | Cartridge | Continuous Ink Supply System |
Technical Application | DOD Micro Piezo Inkjet |
| Printhead | L805 | Ink Capacity | 250ML | Ink Color | K,C,M,Y,LC,LM | Paper Type | Label Paper | Heating Method | Front Heating |
| Print Size | 210mm / A4 | Print Software | PS, RIP | Connection Port | 3.0USB Port | Package Size | 640 * 390 * 340mm | Body Size | 470 * 300 * 290mm |
| Gross Weight | 30kg | Net Weight | 25kg | Power Req. | AC220V / 110V +/-10% 50/60HZ 60W |
Printing Speed | 4Pass: 3.7m²/h 6Pass: 2.47㎡/h 8Pass: 1.85㎡/h |
Print Resolution | 4Pass: 540dpi 6Pass: 720dpi 8Pass: 1440dpi |
Swipe →

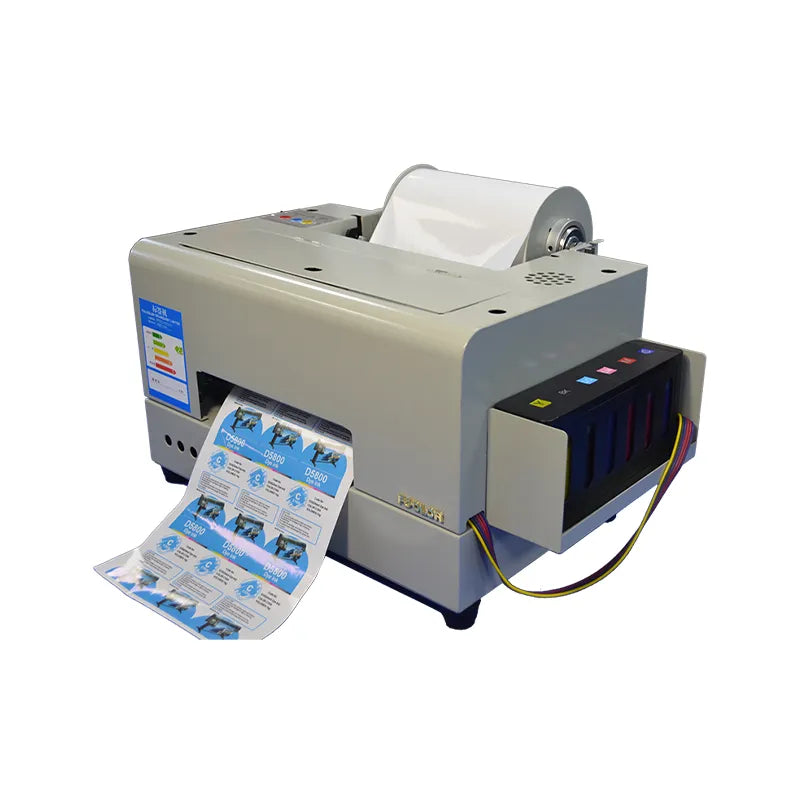

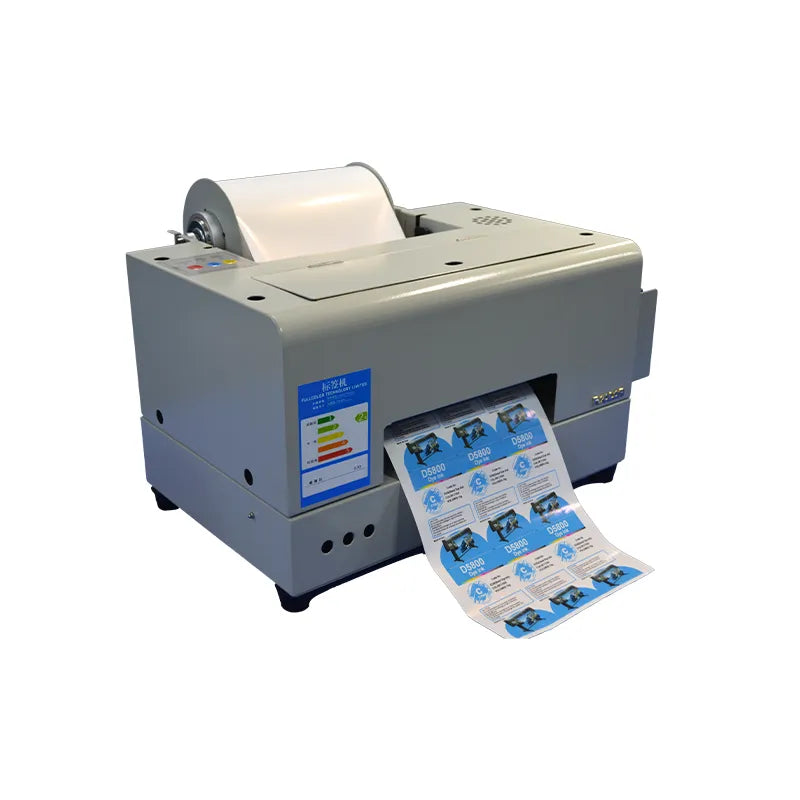

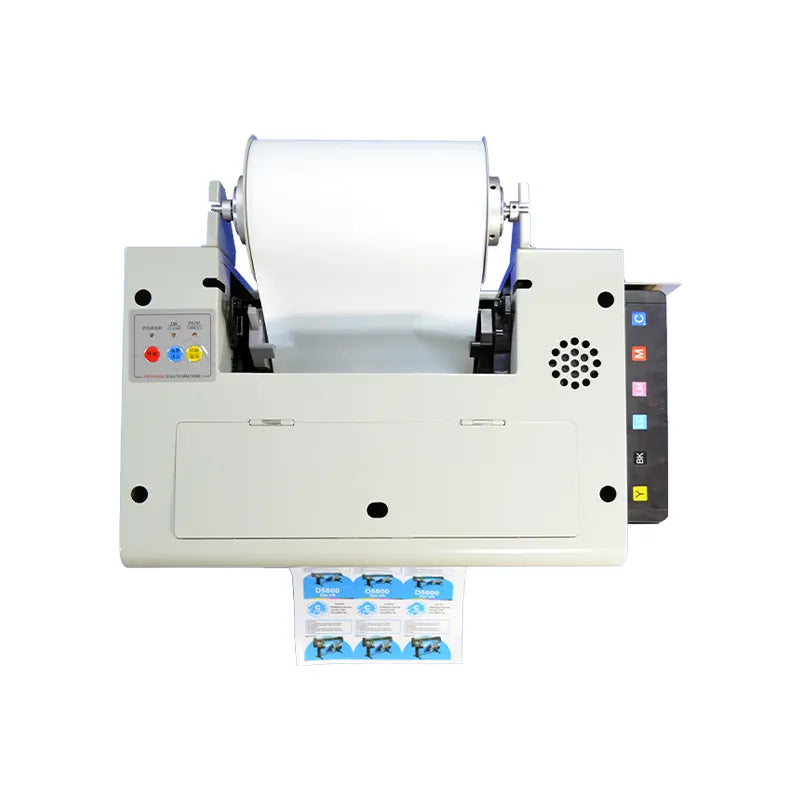

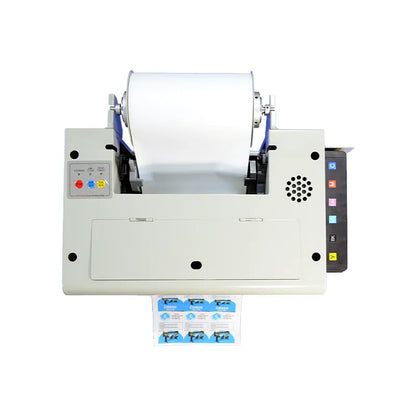

PL800 Label Printer Features
1
Using Epson L805 Printhead
The label printer uses the Epson L805 printhead, featuring Micro Piezo technology for high precision, vivid colors, and stable output. The Official Licensed Copy Is Numbered.
2
High-Capacity Ink Supply

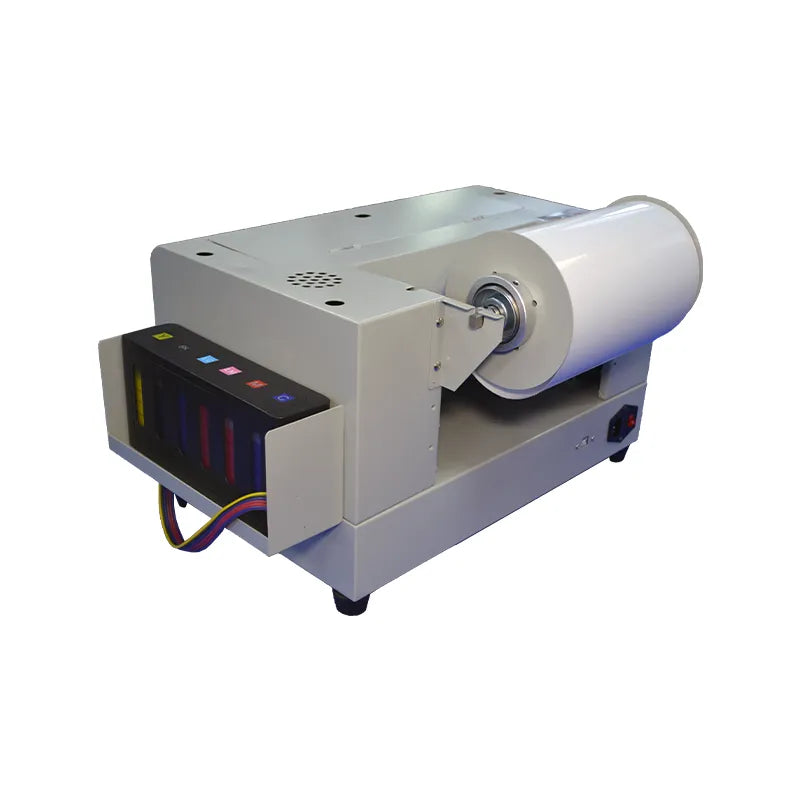

The external high-capacity ink supply system realizes continuous printing and reduces the number of ink refills. And the capacity can be further expanded.
1
2
3
4
3
Single Heating Assistance
An external heating plate is provided for heating assistance and can be detached at any time. It can be expanded into a platform with a cutter for quick access to finished products.
4
Customizable Appearance Styles

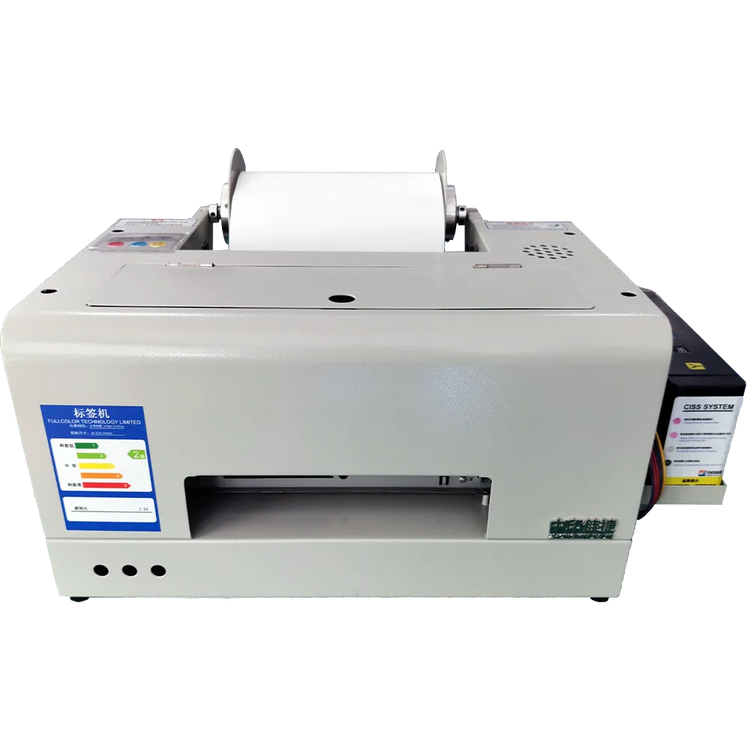

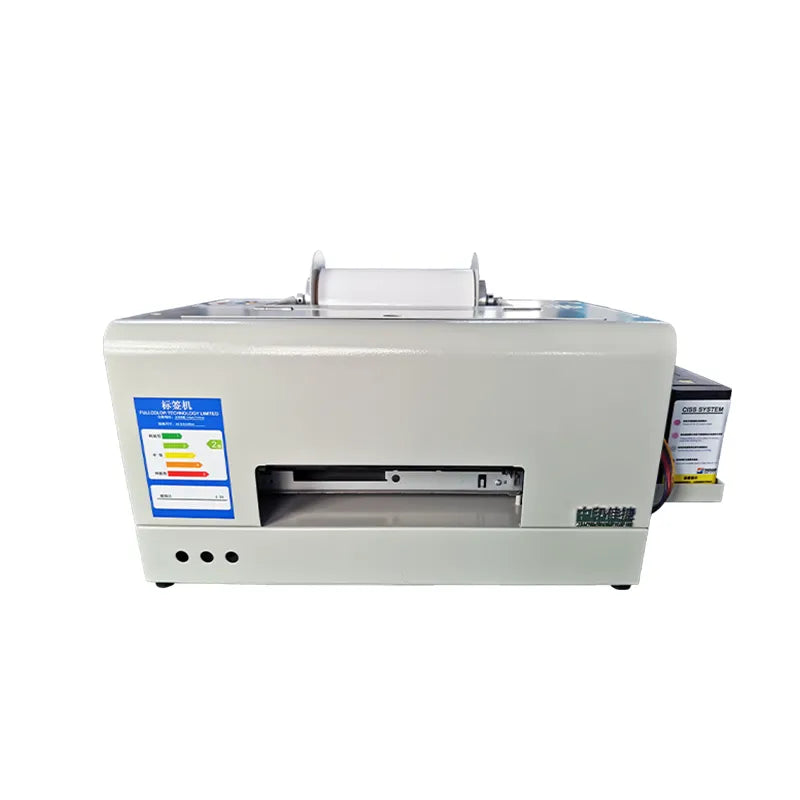

The default is Iron Gray sheet metal as shown. Sheet metal color can be changed, if you need to change the overall appearance of the sheet metal design, you can contact us to make sure.
Product Video

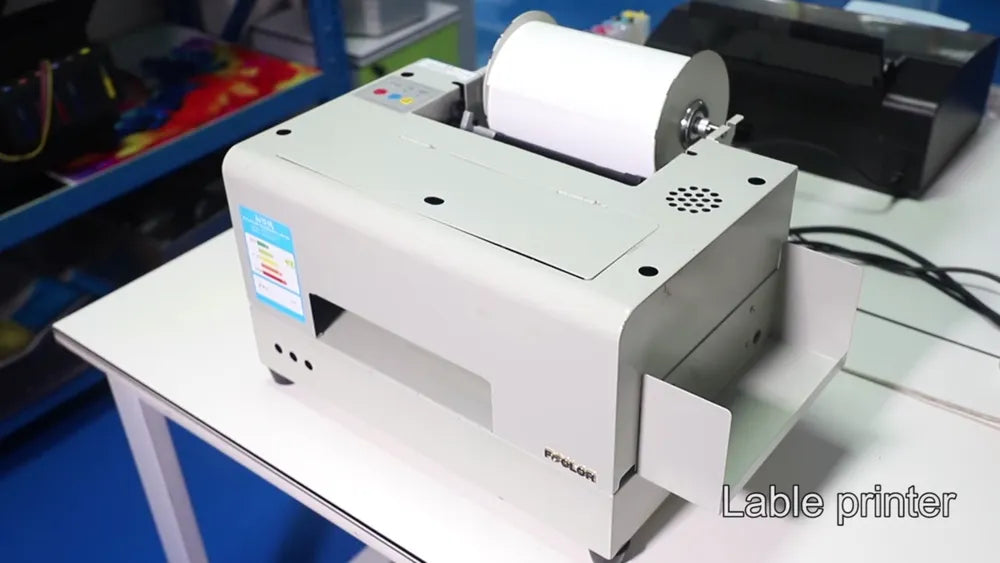

Full Printing Process Show 1

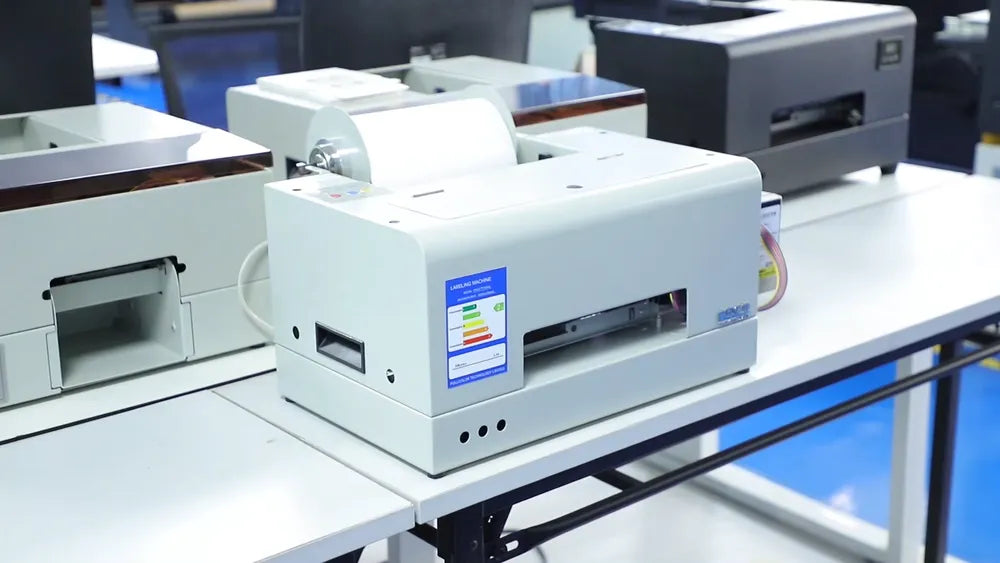

Full Printing Process Show 2
Full Printing Process Show 1
Full Printing Process Show 2
Label Printing Machines Comparison
PL800
$1,050.00
Printing Width (0 - 600mm)35%
Printing Speed (4Pass: 1 - 10m²/h)37%
Printing Stability (8h Continuous)64%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)32%
A4 Entry Level For Novice Tryers
With appropriate stability and low maintenance frequency needs. The price is more suitable for beginners.
PL1800
$1,600.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)46%
Printing Stability (8h Continuous)72%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)40%
A3 Entry Level, Stable And Efficient
Sheet metal design structure makes printing more stable. Low maintenance frequency is required while speed is guaranteed.
PL350
$1,600.00
Printing Width (0 - 600mm)58%
Printing Speed (4Pass: 1 - 10m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)57%
Daily Output (10m²/h * 8h/day)52%
Larger Print Area, Faster Speeds
Efficiently complete the label printing work, two styles to choose from, so that the label printing more diverse.
PL800
$1,050.00
Printing Width (0 - 600mm)35%
Printing Speed (4Pass: 1 - 10m²/h)37%
Printing Stability (8h Continuous)64%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)32%
A4 Entry Level For Novice Tryers
With appropriate stability and low maintenance frequency needs. The price is more suitable for beginners.
PL1800
$1,600.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)46%
Printing Stability (8h Continuous)72%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)40%
A3 Entry Level, Stable And Efficient
Sheet metal design structure makes printing more stable. Low maintenance frequency is required while speed is guaranteed.
PL350
$1,600.00
Printing Width (0 - 600mm)58%
Printing Speed (4Pass: 1 - 10m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)57%
Daily Output (10m²/h * 8h/day)52%
Larger Print Area, Faster Speeds
Efficiently complete the label printing work, two styles to choose from, so that the label printing more diverse.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| PL800 Label Printer (Built-in Printhead) | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Heating Tray + Paper Retaining Tray | 2 Pcs |
| Brackets + Insurance Device | 2 Pcs | Ink Damper |
8 Pcs (6 Included, 2 Spares) |
Product Manuals | 1 Pcs |
| Continuous Ink Supply System | 1 Set | Accessories Kit | 1 Kit | Product Certificate + Warranty Card | 2 Pcs |
| Reels | 1 Pcs | Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable + Power Cable | 2 Line |
| 250ML Ink Set (C/M/Y/K/LC/LM) | 1 Set | Accessory Screw Bag | 1 Set | Cleaning Solution + Moisturizer Liquid | 2 Bottle (250ml Each) |
💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does PL800 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements.
Does It Support Installment?
Installment payments are not currently supported online. Please contact us if you wish to pay in installments.
Can The Print Head Of The Printer Be Replaced?
The printer comes with a RIP and ink supply system that are fixed and matched to the factory configuration. If you need a customized printhead model, please communicate and evaluate it with us before placing your order.
What Should I Do If I Print The Wrong Number Of Passes?
This is usually related to mapping errors and ICC curves that don't match, so please re-map and test with new curves.
What Should I Do If I Get An Error In Printing?
This is related to incorrect software settings and device hardware errors. Please make sure that the software is consistent with the settings in the manual. Also check for hardware problems based on the error code.
What To Do If The Printed Colors Are Pale?
This could be due to an incorrect color ICC profile, incorrect ink sequence settings in the software, or a clogged printhead. Please troubleshoot the issue step by step.
What About Blurry Printing?
If a similar issue arises, please contact us. We need to assess the extent of the blurriness to determine the current status of the device.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does PL800 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements.
Does It Support Installment?
Installment payments are not currently supported online. Please contact us if you wish to pay in installments.
Can The Print Head Of The Printer Be Replaced?
The printer comes with a RIP and ink supply system that are fixed and matched to the factory configuration. If you need a customized printhead model, please communicate and evaluate it with us before placing your order.
What Should I Do If I Print The Wrong Number Of Passes?
This is usually related to mapping errors and ICC curves that don't match, so please re-map and test with new curves.
What Should I Do If I Get An Error In Printing?
This is related to incorrect software settings and device hardware errors. Please make sure that the software is consistent with the settings in the manual. Also check for hardware problems based on the error code.
What To Do If The Printed Colors Are Pale?
This could be due to an incorrect color ICC profile, incorrect ink sequence settings in the software, or a clogged printhead. Please troubleshoot the issue step by step.
What About Blurry Printing?
If a similar issue arises, please contact us. We need to assess the extent of the blurriness to determine the current status of the device.
