| Model | PL350 | Brand | ZYJJ | Appearance | Light Cyan | Ink Type | Pigment, Dye, UV Ink | Cartridge | Continuous Ink Supply System |
| Printhead | XP600 | Ink Capacity | 250ML | Ink Color | K,C,M,Y,LC,LM | Paper Type | Label Paper | Heating Method | Front Heating / UV Curing |
| Print Direction | Bi / Uni-Direction | Nozzle Config | 1080 / 6 Rows | Print Size | 350mm | Print Software | Better Print | Mapping Software | Maintop |
| Connection Port | 3.0USB Port | Print Method | Continuous Roll | Operating System | Windows 7/10/11 | Package Size | 890 * 470 * 370mm | Body Size | 825 * 355 * 330mm |
| Gross Weight | 37kg（35.5 + 1.5） | Net Weight | 31.2kg | Power Req. | AC220V / 110V +/-10% 50/60HZ 100W |
Printing Speed | 4Pass: 6m²/h 6Pass: 4㎡/h 8Pass: 3.2㎡/h |
Print Resolution | 4Pass: 540dpi 6Pass: 720dpi 8Pass: 1440dpi |
Swipe →

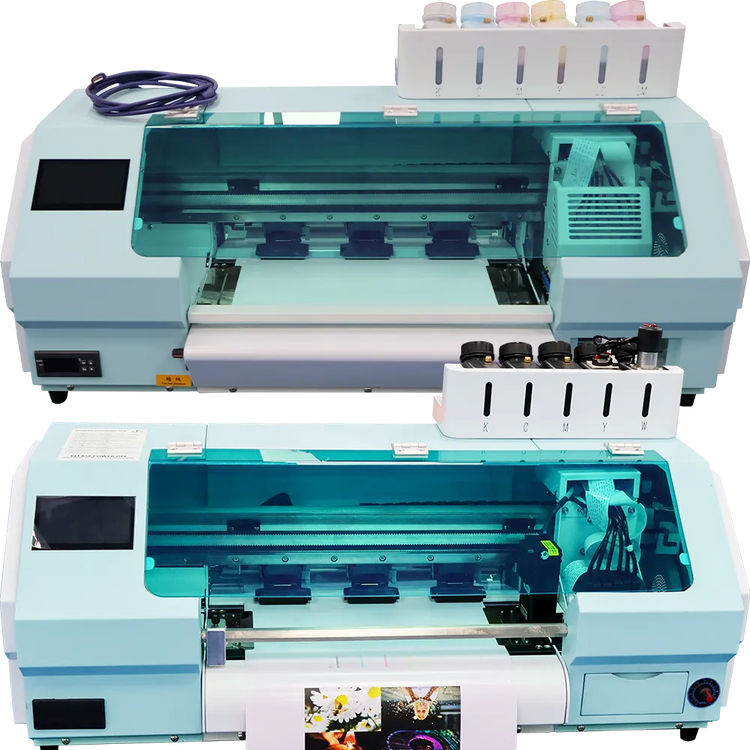

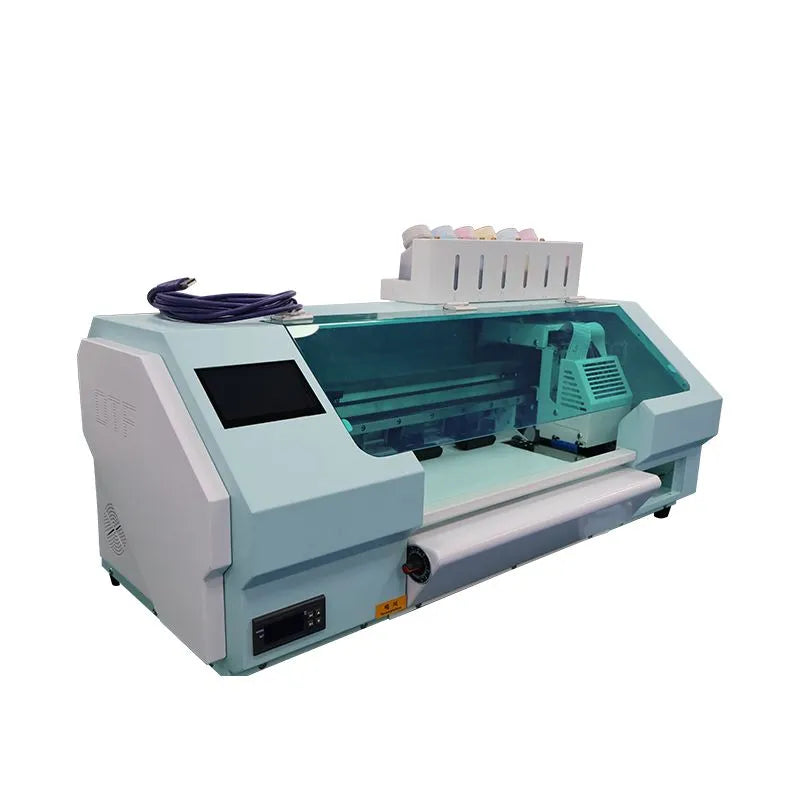

PL350 Label Printer Features
1
Smart Customizable Control Panel
Touchscreen operation with different functionalities for the standard and UV models. Easier and more effortless to operate.
2
Supports Multi-Type Ink Printing
The standard model supports the use of pigment, dye, and sublimation inks, while the UV model supports the use of UV inks only.
3
Diverse Printhead Assembly
The printhead assembly is self-adjusting and offers ample space, allowing for highly customizable. The UV model comes standard with a UV lamp.
1
2
3
4
5
6
4
Multi-Type Manual Cutter
The standard model uses a paper-tearing cutter, while the UV model uses a manual horizontal cutter, making it easy to obtain materials in one step.
5
Smart Suction / Temp Regulation
Both models allow for free adjustment of suction power, and the auxiliary heating function helps to reduce moisture on the paper.
6
Customizable Appearance Styles
Any color and sheet metal style can be customized. Change of color can be changed at will, sheet metal changes need to be confirmed by contacting us.
Product Video

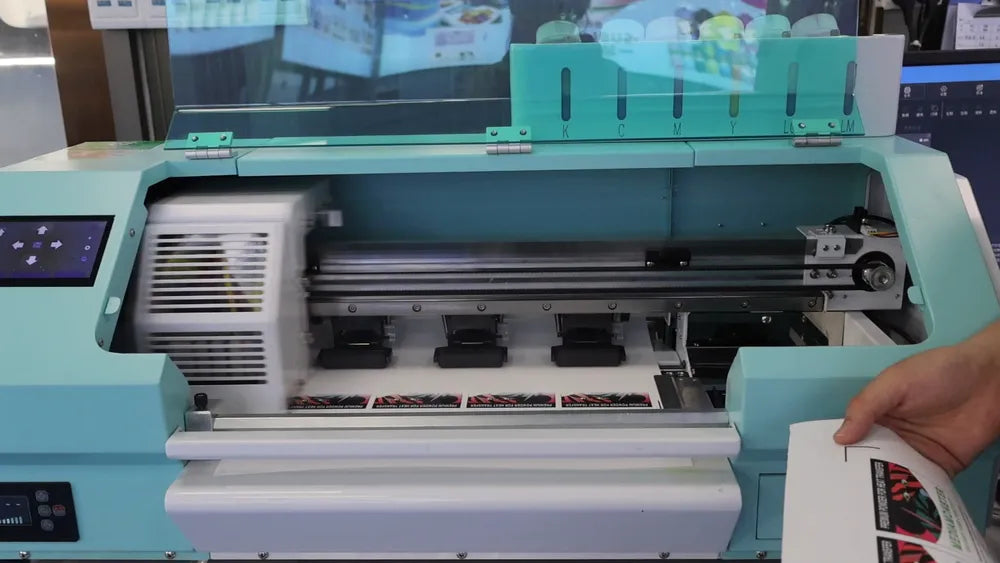

Standard Edition - Printing Demo

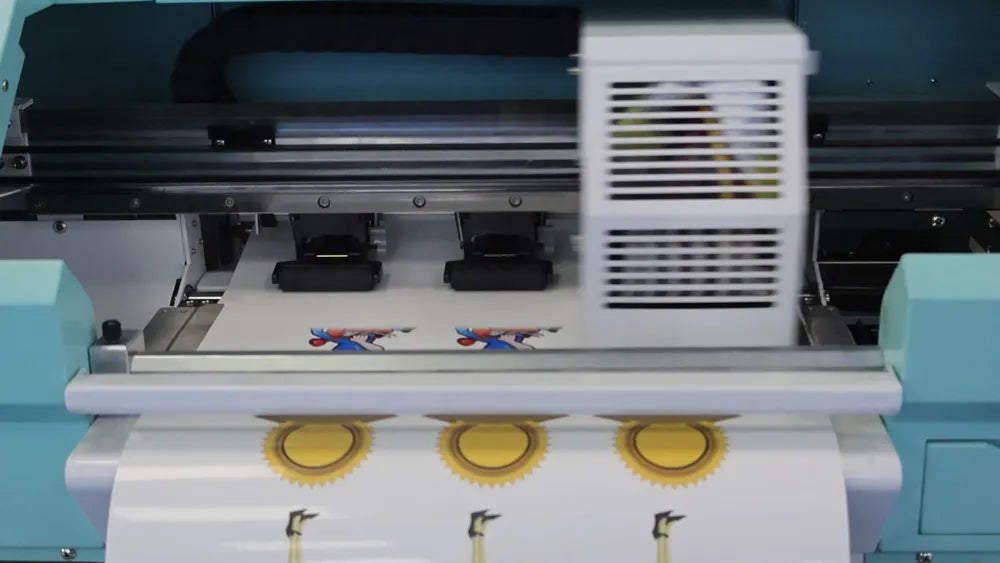

Standard Edition - Print Detail Demo
Standard Edition - Printing Demo
Standard Edition - Print Detail Demo

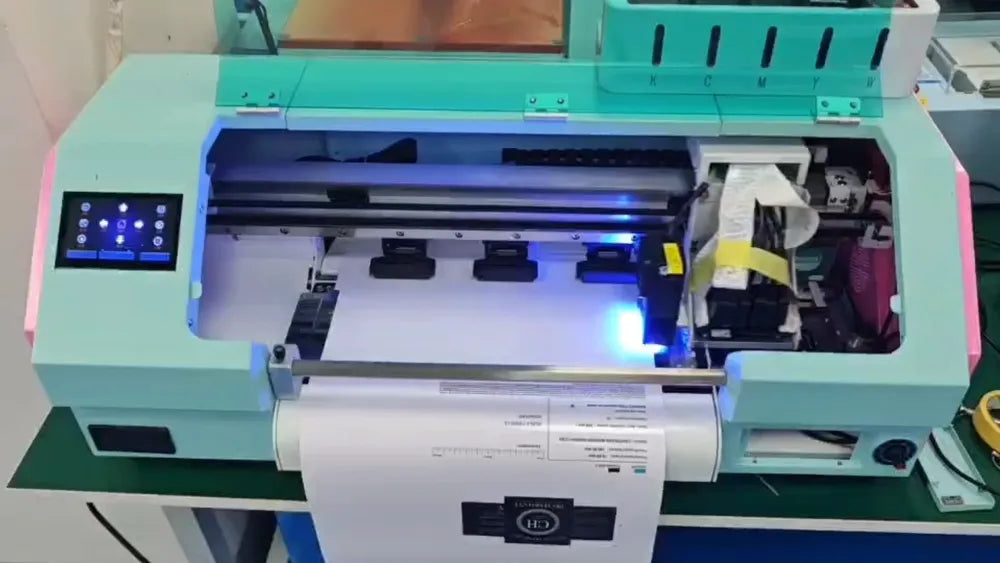

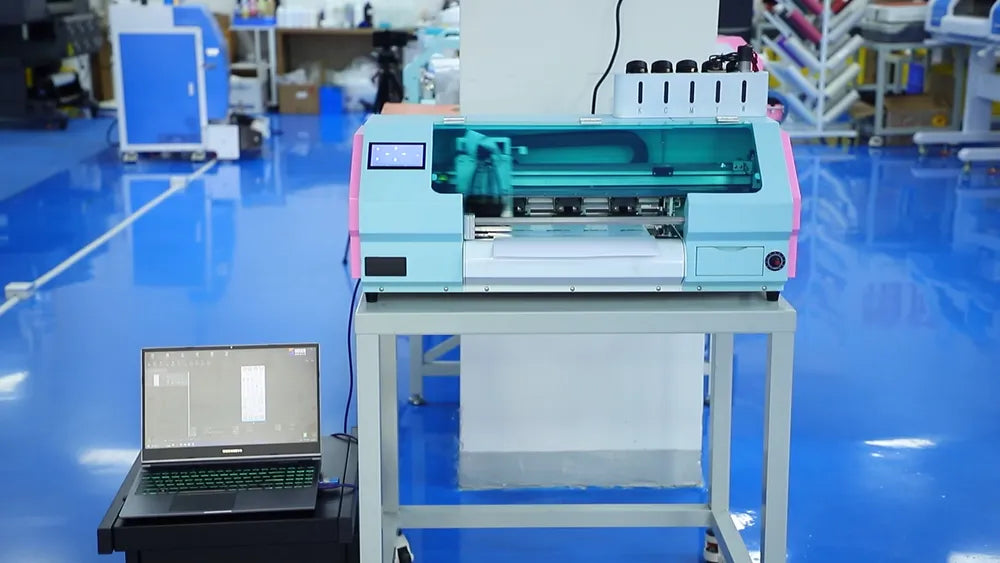

UV Edition - Printing Demo
UV Edition - Sample Printing Test
UV Edition - Printing Demo
UV Edition - Sample Printing Test
Label Printing Machines Comparison
PL350
$1,600.00
Printing Width (0 - 600mm)58%
Printing Speed (4Pass: 1 - 10m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)57%
Daily Output (10m²/h * 8h/day)52%
Larger Print Area, Faster Speeds
Efficiently complete the label printing work, two styles to choose from, so that the label printing more diverse.
PL1800
$1,600.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)46%
Printing Stability (8h Continuous)72%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)40%
A3 Entry Level, Stable And Efficient
Sheet metal design structure makes printing more stable. Low maintenance frequency is required while speed is guaranteed.
PL800
$1,050.00
Printing Width (0 - 600mm)35%
Printing Speed (4Pass: 1 - 10m²/h)37%
Printing Stability (8h Continuous)64%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)32%
A4 Entry Level For Novice Tryers
With appropriate stability and low maintenance frequency needs. The price is more suitable for beginners.
PL350
$1,600.00
Printing Width (0 - 600mm)58%
Printing Speed (4Pass: 1 - 10m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)57%
Daily Output (10m²/h * 8h/day)52%
Larger Print Area, Faster Speeds
Efficiently complete the label printing work, two styles to choose from, so that the label printing more diverse.
PL1800
$1,600.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)46%
Printing Stability (8h Continuous)72%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)40%
A3 Entry Level, Stable And Efficient
Sheet metal design structure makes printing more stable. Low maintenance frequency is required while speed is guaranteed.
PL800
$1,050.00
Printing Width (0 - 600mm)35%
Printing Speed (4Pass: 1 - 10m²/h)37%
Printing Stability (8h Continuous)64%
Color Support (1 Color Per 10%)60%
Maintenance Freq. (Lower = Better)45%
Daily Output (10m²/h * 8h/day)32%
A4 Entry Level For Novice Tryers
With appropriate stability and low maintenance frequency needs. The price is more suitable for beginners.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| PL350 Label Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Limiter | 1 Pcs |
| Printhead XP600 | 1 Pcs | Ink Damper |
8 Pcs (6 Included, 2 Spares) |
Product Manuals | 1 Pcs |
| Continuous Ink Supply System | 1 Set | Accessories Kit | 1 Kit | Product Certificate + Warranty Card | 2 Pcs |
| Waste Ink Device | 1 Set | Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line |
| 250ML Ink Set (C/M/Y/K/LC/LM) (Pigment / Dye Sublimation / UV) | 1 Set (Four Types To Choose From) |
Accessory Screw Bag | 1 Set | Power Cable | 1 Line |
💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does PL350 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements.
Does It Support Installment?
Installment payments are not currently supported online. Please contact us if you wish to pay in installments.
Can The Print Head Of The Printer Be Replaced?
The printer comes with a RIP and ink supply system that are fixed and matched to the factory configuration. If you need a customized printhead model, please communicate and evaluate it with us before placing your order.
What Should I Do If I Print The Wrong Number Of Passes?
This is usually related to mapping errors and ICC curves that don't match, so please re-map and test with new curves.
What Should I Do If I Get An Error In Printing?
This is related to incorrect software settings and device hardware errors. Please make sure that the software is consistent with the settings in the manual. Also check for hardware problems based on the error code.
What To Do If The Printed Colors Are Pale?
This could be due to an incorrect color ICC profile, incorrect ink sequence settings in the software, or a clogged printhead. Please troubleshoot the issue step by step.
What About Blurry Printing?
If a similar issue arises, please contact us. We need to assess the extent of the blurriness to determine the current status of the device.
