| Model | UVDTF600 | Brand | ZYJJ | Print Width | 600mm | Ink Type | LED UV Ink |
| Printhead | I3200U1 * 4 | Ink Capacity | 1000ML | Ink Color | K,C,M,Y,W LC,LM,LB,R+V +G(Glue) |
Paper Type | PET Transparent A Film + PVC General B Film |
| Printing Accuracy | 2.0PL Ink Dot | Board | Honson | Cartridge | Continuous Ink Supply System | Heater | Front Lamination Roller |
| Print Direction | Bi / Uni- Direction |
Connection Port | 1000 Megabit Ethernet Cable Interface |
Laminating Film Method | Constant Temperature Heating (Automatic) |
Retractable System | Dual Power Retractable System |
| Work Environment Requirements |
Temperature 15-35°C Humidity 40% - 70% |
Printing Software | MainTop | RIP Software | Photoprint | Power Req. | AC220V / 110V +/-10% 50/60HZ 1200W |
| Print Method | LED UV Roll To Roll | Operating System | Windows 7/10/11 | Package Size | 2530 * 970 * 1925mm | Body Size | 2100 * 900 * 1300mm |
| Gross Weight | 400kg | Net Weight | 360kg | Printing Speed | 4Pass: 10m²/h 6Pass: 7.4m²/h 8Pass: 5m²/h |
Maximum Print Resolution | 2400dpi |
Swipe →
UVDTF600 Direct To Film UV Printer Features
1
Multiple Printhead Configurations
Equipped with four advanced printheads and a high-speed printing board, it achieves faster printing speeds and stable operation.
2
Auto Peeling & Lamination Integrated
The improved structural design ensures more stable peeling and lamination, smooth film running, continuous non-drifting operation.
3
Low & Full Ink Alert System
Newly upgraded audible alarm when ink is insufficient or too full, and the limiter can be turned on at the touch of a button.
4
White Ink Stirrer, Circulation System
The cartridge comes with a white ink stirrer and white ink circulation function with adjustable circulation rate.
5
External Auxiliary Unit
Comes with two external auxiliary units containing water cooling tanks and air pumps. For enhanced heat dissipation and enhanced adsorption.
1
2
3
4
5
6
7
8
9
10
6
Triple Auxiliary Heating System
In addition to the platform auxiliary heat and front heating plate, the new upgrade rubber roller heating function, can do hot stamping silver process.
7
Dual Side Water-Cooled UV Lamp
Double-side water-cooled UV lamps, efficiency is higher than air-cooled. External water-cooling box is available for high production requirements.
8
Upgraded Platform Adsorption Function
New upgraded platform suction wind vacuum adsorption function, quiet, small vibration. Adjustable size, can area independent adsorption.
9
Individual Cleaning Compartments
Separate ink cart cleaning compartment. Dual cleaning modes of automatic and manual. Can be timed for automatic cleaning.
10
Personalized Brand Customization
Unlike other UV DTF equipment, this machine supports one-time branding customization. It can be tailored with your personalized design scheme.
-

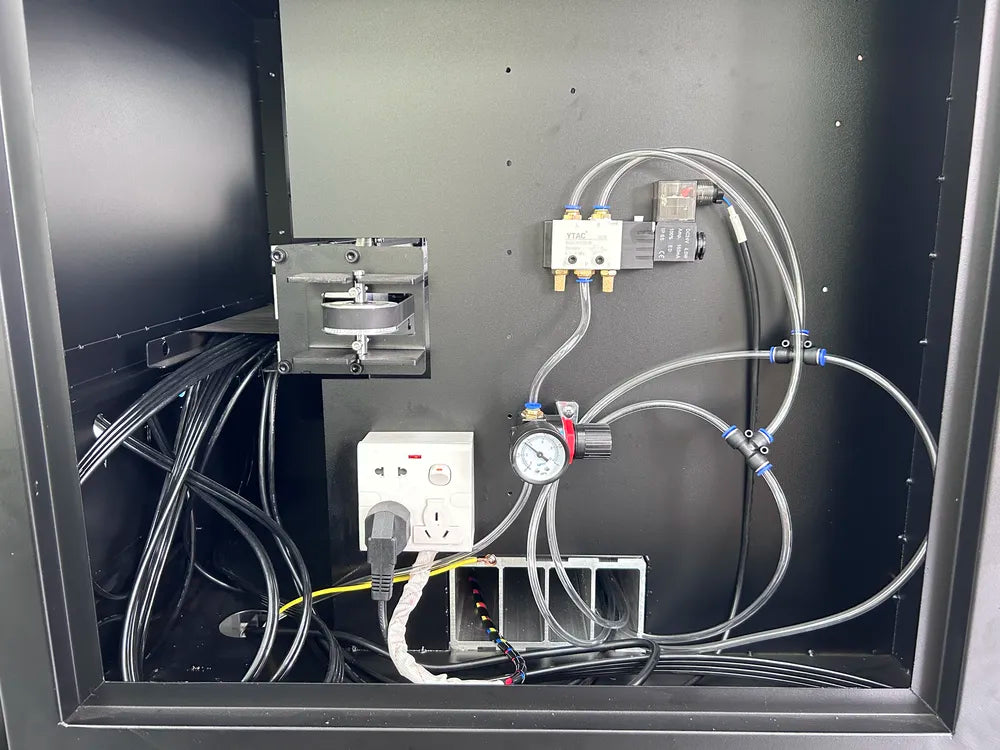

Left Module Harness Area
-

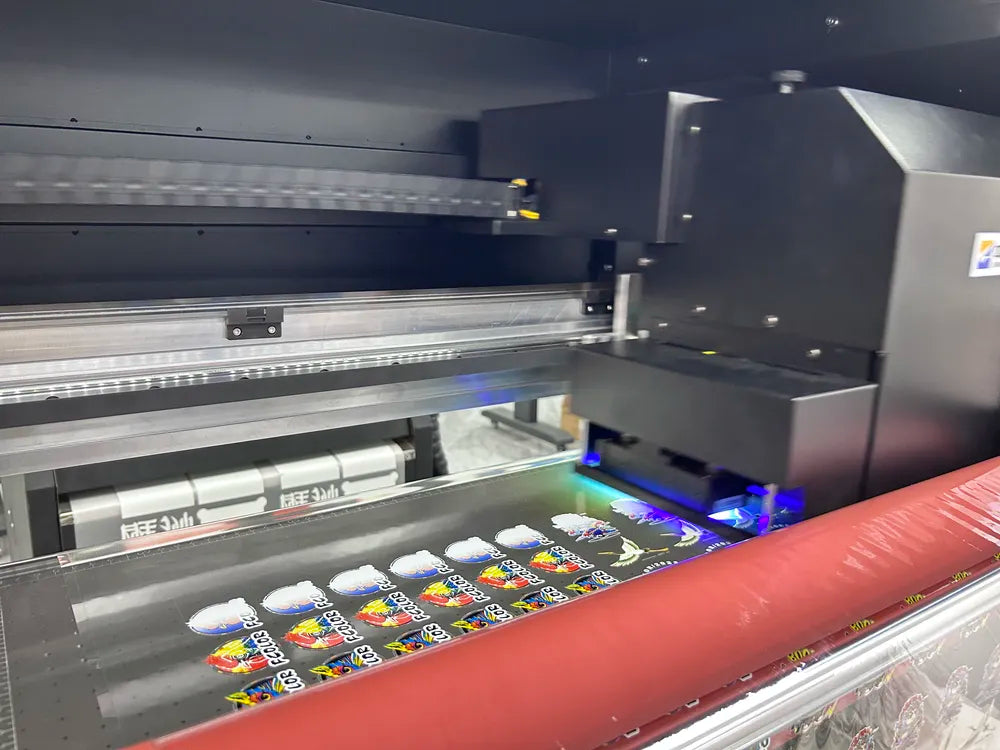

Printhead And UV Lamp Area
-

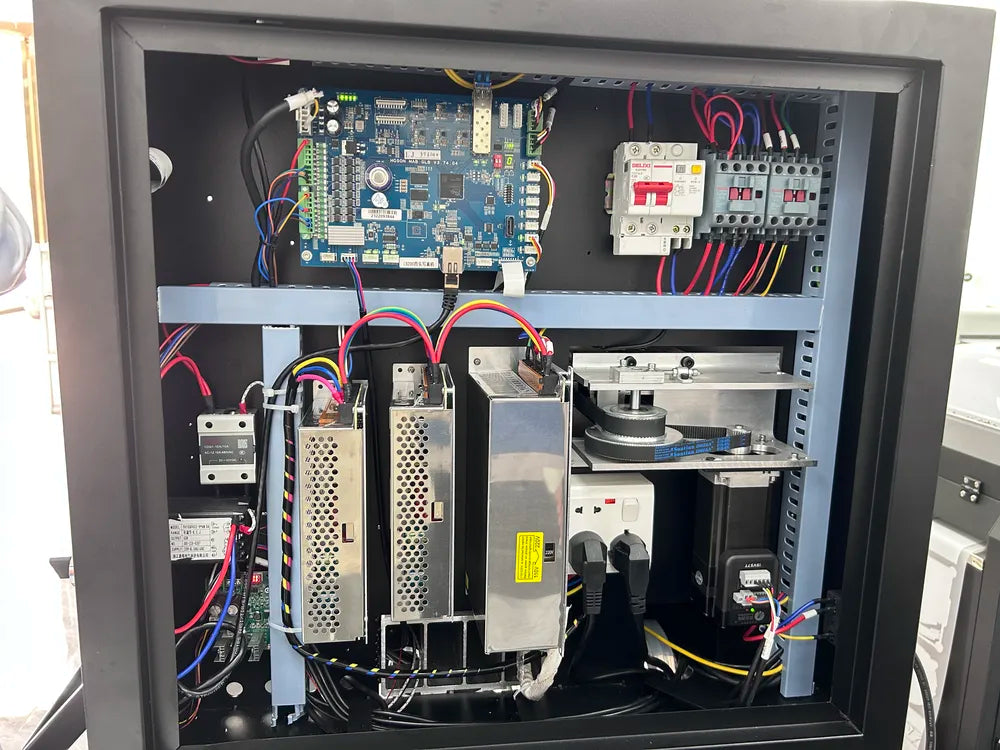

Right Module Harness Area
-

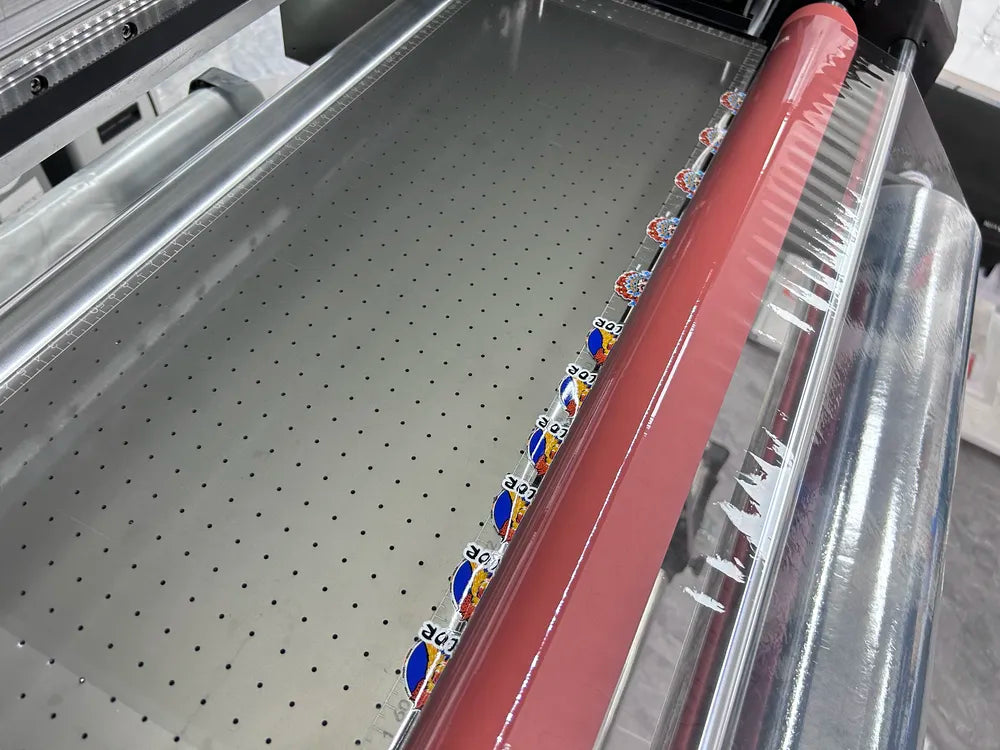

Printing Platform
-

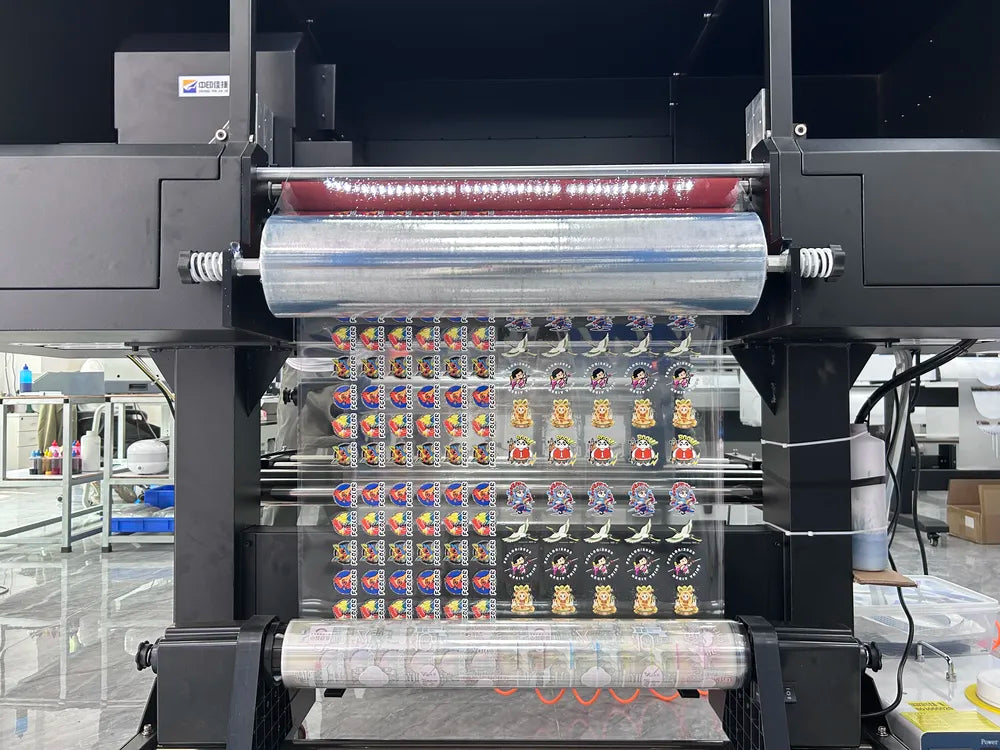

Laminating Roller
-

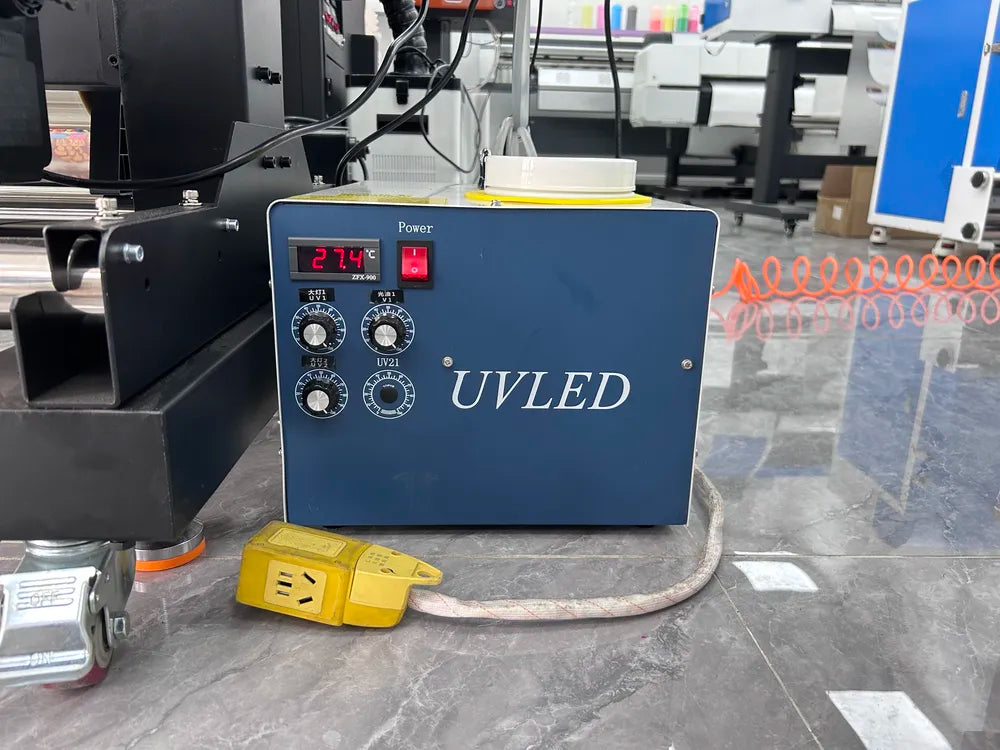

Water Cooler
Product Video

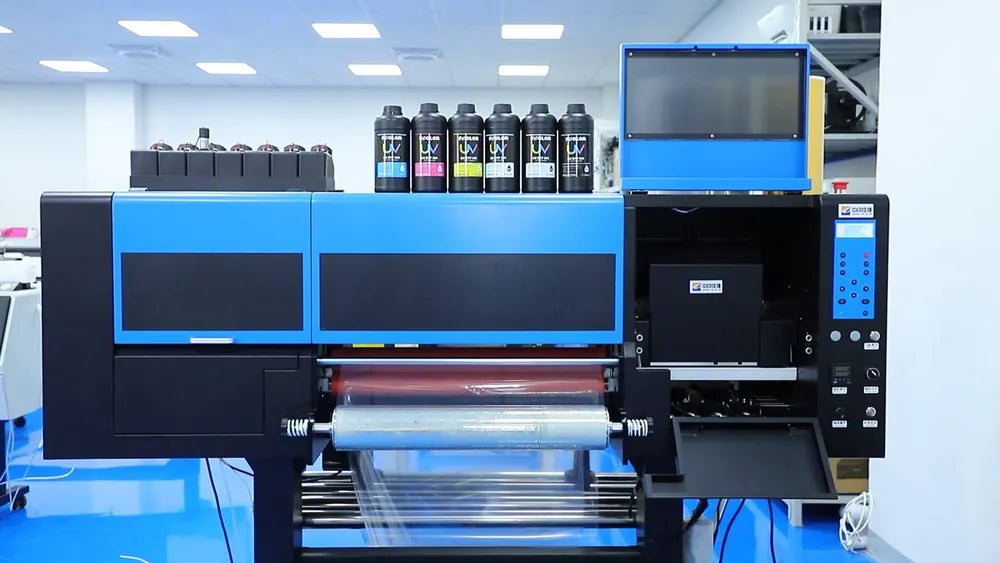

Printer Introduction Clip 1
Printer Introduction Clip 2
Printer Introduction Clip 3
Printer Introduction Clip 1
Printer Introduction Clip 2
Printer Introduction Clip 3
Support Embossed Texture Print
With four I3200U1 printheads, the UV DTF Printer has the ability to print embossed three-dimensional textures. This can be accomplished by simply adjusting the printing method.
Multi-Layer Overspray Cured In Segments
Applying a brief, low-power curing step after each varnish layer, followed by a complete, high-power curing at the end, can prevent over-leveling and delamination between layers.
Varnish Multi-Spray Technology
This process consumes a significant amount of varnish. The strategy involves applying multiple overlapping varnish layers, essentially printing repeatedly in the same location. To achieve a thicker feel, increase the number of varnish layers or the amount of ink applied per layer.
Thickness Can Be Increased
Can Do Partial Gloss Feel
Only Certain Printhead Support
Supports Hot Stamping Print
Hot stamping UV sticker printing can be realized with hot stamping varnish and metallic foil film. At the same time, you can precisely control the metal area to realize "localized spot gold".
Expandable To More Specialized Films
UV hot stamping stickers can be divided into: mirror gold, brushed gold, laser gold and so on according to the different films used. Have more printing possibilities.
Can Be Combined With Relief Carving
UV DTF transfer stickers can be combined with hot stamping and embossing process to produce more beautiful UV DTF transfer stickers. However, the cost will be increased accordingly.
More Visually Textured
More Higher Expandability
Can Do Silver Stamping
UV DTF Printing Equipment Comparison
UVDTF600
$11,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 10m²/h)100%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)100%
Layer Printing (1 Layer Per 25%)100%
Operation Simplicity (1 - 10 Level)78%
Maintenance Freq. (Lower = Better)34%
Daily Output (10m²/h * 8h/day)94%
High-Speed, Multi-Color, Stable Printing
The first choice for large business orders to quickly increase productivity for timely delivery. Compatible with more business needs.

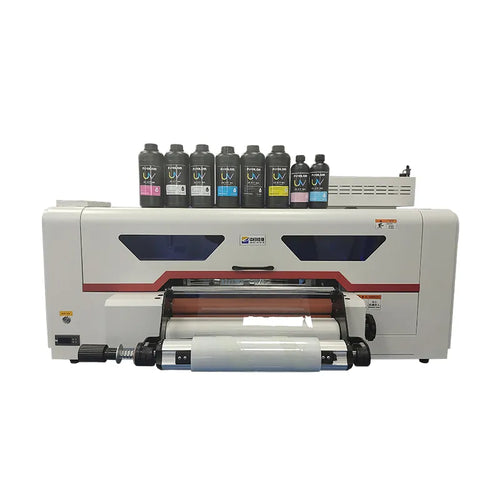

UVDTF420
$4,800.00
Printing Width (0 - 600mm)70%
Printing Speed (4Pass: 1 - 10m²/h)52%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)80%
Layer Printing (1 Layer Per 25%)75%
Operation Simplicity (1 - 10 Level)74%
Maintenance Freq. (Lower = Better)43%
Daily Output (10m²/h * 8h/day)47%
Stable Printing, Support More Color Output
Desktop machine with three printhead configuration. Multi-color printing and stable, suitable for expansion of printing business.

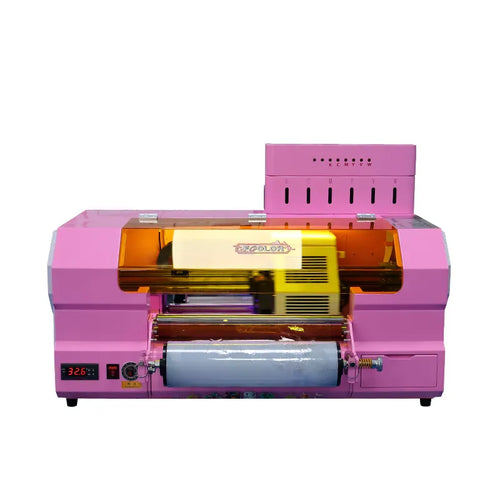

UVDTF300
$3,250.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)25%
Printing Stability (8h Continuous)63%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 25%)25%
Operation Simplicity (1 - 10 Level)82%
Maintenance Freq. (Lower = Better)65%
Daily Output (10m²/h * 8h/day)20%
Entry-Level Equipment, Cost-Effective
Small desktop tabletop, UV printing and laminating all-in-one machine. Can meet the needs of small batch production.
UVDTF600
$11,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 10m²/h)100%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)100%
Layer Printing (1 Layer Per 25%)100%
Operation Simplicity (1 - 10 Level)78%
Maintenance Freq. (Lower = Better)34%
Daily Output (10m²/h * 8h/day)94%
High-Speed, Multi-Color, Stable Printing
The first choice for large business orders to quickly increase productivity for timely delivery. Compatible with more business needs.
UVDTF420
$4,800.00
Printing Width (0 - 600mm)70%
Printing Speed (4Pass: 1 - 10m²/h)52%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)80%
Layer Printing (1 Layer Per 25%)75%
Operation Simplicity (1 - 10 Level)74%
Maintenance Freq. (Lower = Better)43%
Daily Output (10m²/h * 8h/day)47%
Stable Printing, Support More Color Output
Desktop machine with three printhead configuration. Multi-color printing and stable, suitable for expansion of printing business.
UVDTF300
$3,250.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)25%
Printing Stability (8h Continuous)63%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 25%)25%
Operation Simplicity (1 - 10 Level)82%
Maintenance Freq. (Lower = Better)65%
Daily Output (10m²/h * 8h/day)20%
Entry-Level Equipment, Cost-Effective
Small desktop tabletop, UV printing and laminating all-in-one machine. Can meet the needs of small batch production.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| UVDTF600 UV DTF Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Printhead I3200U1 | 4 Pcs |
| Air Pump | 1 Unit | Water Cooler | 1 Unit | Printhead Wiring | 1 Set (Install/Spare) |
| Waste Ink Device | 1 Set | Ink Damper | 20 Pcs (10 Included, 10 Spare) |
Bracket | 1 Set |
| Product Manuals | 1 Pcs | Product Certificate + Warranty Card | 2 Pcs | Continuous Ink Supply System | 1 Set (Built-In) |
| Accessories Kit | 1 Kit | 1000ML Ink Set | 1 Set | Cleaning Fluid | 1 Bottle (500ml) |
| Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line | Power Cable | 1 Line |
| Limit Sensor | 1 Pcs | Roll Paper Long Tube | 1 Set | Connector | 1 Set |
💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does UVDTF600 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
Do I Get Film With The Purchase Of This Printer?
We do not support gifting films at this time, but may add them in subsequent events, so please keep an eye out for them.
Can I Customize This Printer To Replace Just The Printheads?
We also have a version of this printer with an XP600 printhead, but it's not yet available in our store. Please contact us if you're interested.
Are The Front And Rear Rollers Also Covered Under Warranty?
Yes, we will replace it once for free under warranty, but you will need to pay for shipping.
Can I Expand The Ink Cartridge Capacity Of This Printer?
This unit has reached its maximum ink capacity value and is not supported for replacement at this time.
What Should I Do If The Color Is Light After Printing?
This is usually related to the ICC curve for the print color being configured incorrectly, try replacing it. If the ICC is configured correctly, then it is a quality problem with the print head, please request a warranty.
What Should I Do If The Print Appears Blurry?
Please recalibrate the parameters to see the changes, and also prepare different patterns for testing, during which the software settings should be recorded.
What If I Print The Incorrect Number Of Passes?
Please replace the correct ICC curve configuration.
What Should I Do If I Get An Error In Printing?
Please try to adjust the software settings, if most of the software settings report an error, it means there is a problem with the hardware of the device. Please contact an engineer for warranty.
What Checks Need To Be Done Before Using A UV DTF Printer?
You should check the condition of the print head, the ink level, the adequacy of the cleaning fluid, the front and rear rollers, and the indicator lights to see if they are working properly.
What Are The Protective Measures When Using UV Lamps?
It is strictly prohibited to look directly at the UV light source, and you should wear anti-UV goggles; avoid opening the hatch cover when the machine is working.
How To Determine The UV Lamp Needs To Be Replaced?
When curing is degraded, colors are dark, or prints show signs of not drying, the lamp energy should be tested and replaced at the manufacturer's recommended intervals.
Can I Use Non-Original Ink?
Yes, but you need to use an ink that matches the UV light band.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does UVDTF600 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
Do I Get Film With The Purchase Of This Printer?
We do not support gifting films at this time, but may add them in subsequent events, so please keep an eye out for them.
Can I Customize This Printer To Replace Just The Printheads?
We also have a version of this printer with an XP600 printhead, but it's not yet available in our store. Please contact us if you're interested.
Are The Front And Rear Rollers Also Covered Under Warranty?
Yes, we will replace it once for free under warranty, but you will need to pay for shipping.
Can I Expand The Ink Cartridge Capacity Of This Printer?
This unit has reached its maximum ink capacity value and is not supported for replacement at this time.
What Should I Do If The Color Is Light After Printing?
This is usually related to the ICC curve for the print color being configured incorrectly, try replacing it. If the ICC is configured correctly, then it is a quality problem with the print head, please request a warranty.
What Should I Do If The Print Appears Blurry?
Please recalibrate the parameters to see the changes, and also prepare different patterns for testing, during which the software settings should be recorded.
What If I Print The Incorrect Number Of Passes?
Please replace the correct ICC curve configuration.
What Should I Do If I Get An Error In Printing?
Please try to adjust the software settings, if most of the software settings report an error, it means there is a problem with the hardware of the device. Please contact an engineer for warranty.
What Checks Need To Be Done Before Using A UV DTF Printer?
You should check the condition of the print head, the ink level, the adequacy of the cleaning fluid, the front and rear rollers, and the indicator lights to see if they are working properly.
What Are The Protective Measures When Using UV Lamps?
It is strictly prohibited to look directly at the UV light source, and you should wear anti-UV goggles; avoid opening the hatch cover when the machine is working.
How To Determine The UV Lamp Needs To Be Replaced?
When curing is degraded, colors are dark, or prints show signs of not drying, the lamp energy should be tested and replaced at the manufacturer's recommended intervals.
Can I Use Non-Original Ink?
Yes, but you need to use an ink that matches the UV light band.
