Medium-Sized Package
Anti-Collision Test
| Model | UVDTF420 | Brand | ZYJJ | Print Width | 420mm | Ink Type | LED UV Ink |
| Printhead | XP600 * 3 | Ink Capacity | 500ML | Ink Color | K,C,M,Y,W,LC,LM+V | Paper Type | PET Transparent A Film + PVC General B Film |
| Printing Accuracy | 3.5PL Ink Dot | Board | Honson | Cartridge | Continuous Ink Supply System | Heater | Front Lamination Roller |
| Print Direction | Bi / Uni- Direction |
Connection Port | 1000 Megabit Ethernet Cable Interface |
Laminating Film Method | Constant Temperature Heating (Automatic) |
Retractable System | Dual Power Retractable System |
| Work Environment Requirements |
Temperature 18-25°C Humidity 45% - 65% |
Printing Software | MainTop | RIP Software | MainTop | Power Req. | AC220V / 110V +/-10% 50/60HZ 1000W |
| Print Method | LED UV Roll To Roll | Operating System | Windows 7/10/11 | Package Size | 1450 * 900 * 920mm | Body Size | 1350 * 720 * 700mm |
| Gross Weight | 190kg | Net Weight | 155kg | Printing Speed | 4Pass: 5.2m²/h 6Pass: 4m²/h 8Pass: 2-3m²/h |
Maximum Print Resolution | 1440dpi |
Swipe →

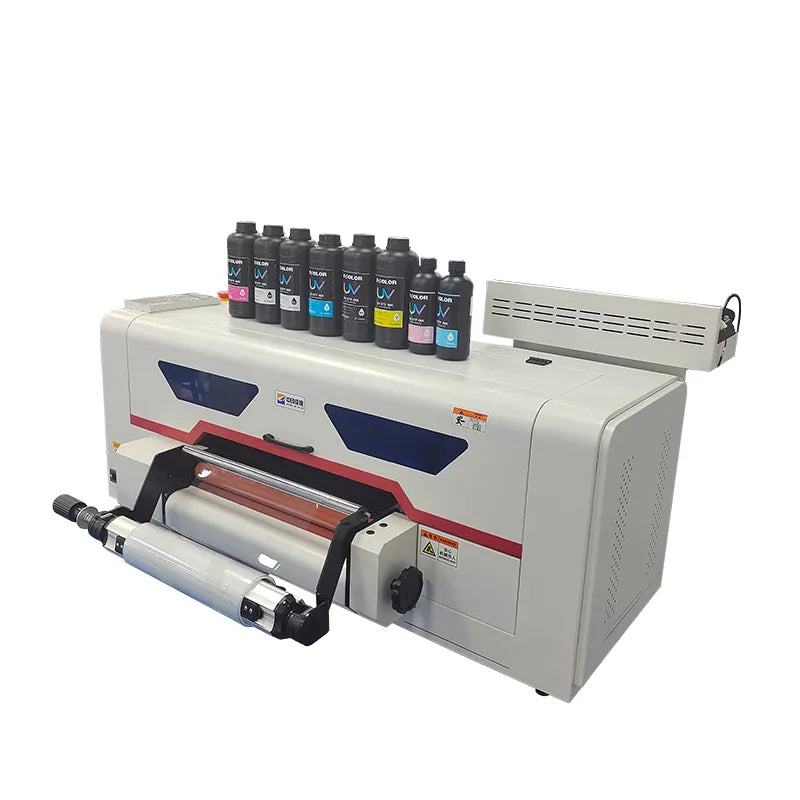

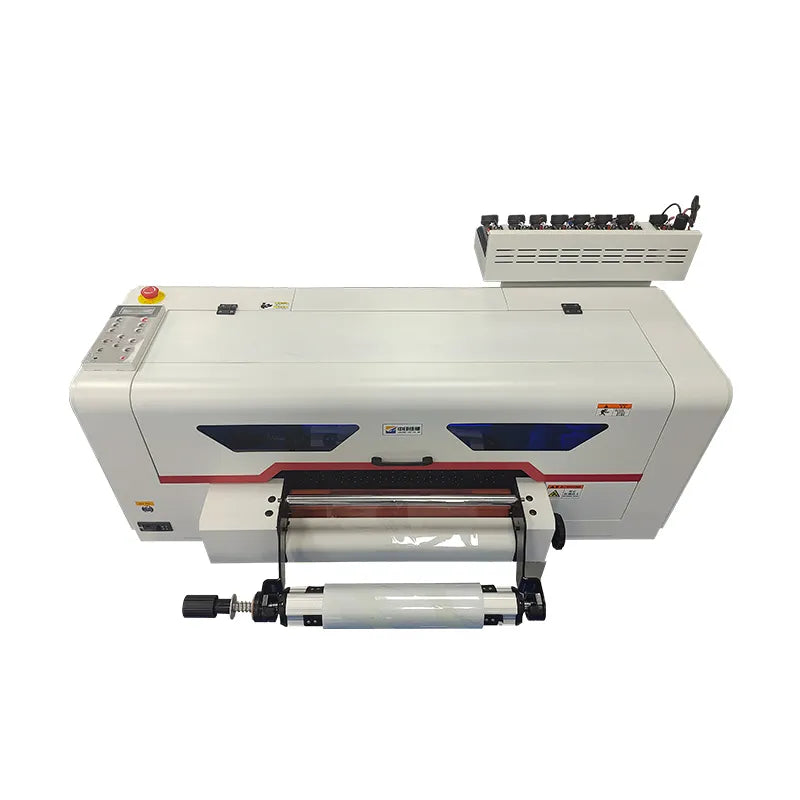

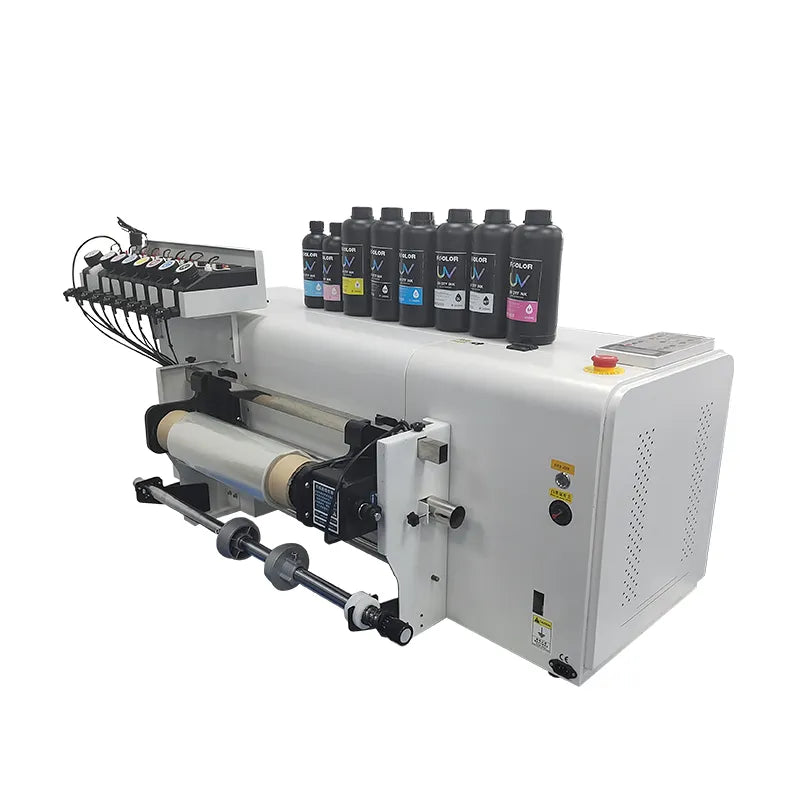

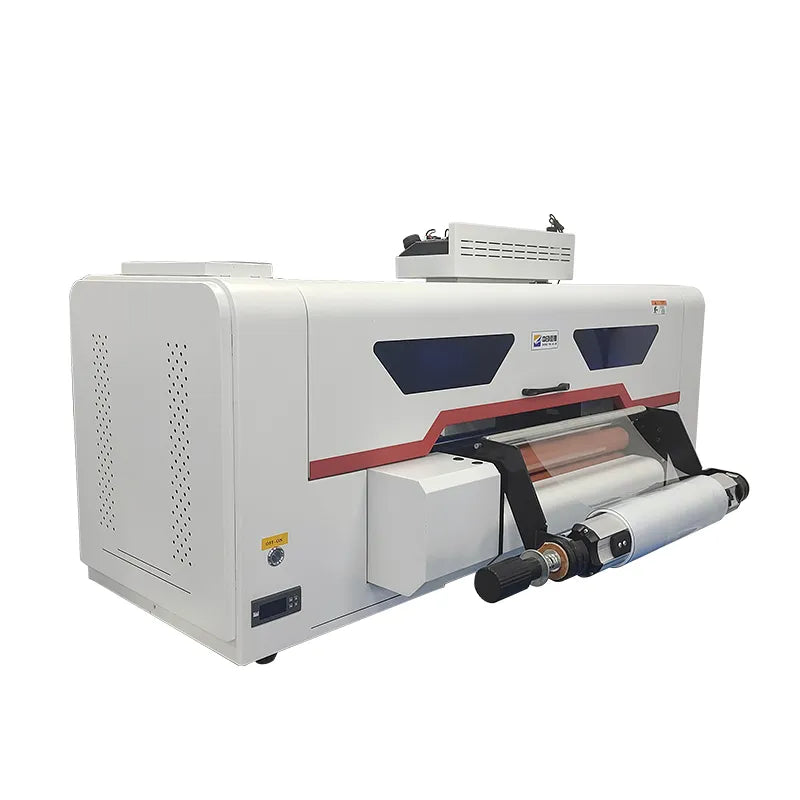

UVDTF420 Direct To Film UV Printer Features
1
Multiple Printhead Configurations
Fitted with 3 printheads, up to 4 can be assembled in the ink cart. Fast and stable printing.
2
Auto Peeling & Lamination Integrated
Newly upgraded one-piece structure for printing small-sized films without offset.
3
Low & Full Ink Alert System
An audible alert sounds when there is not enough ink or when the ink is too full.
4
White Ink Stirrer, Circulation System
White ink stirrer and white ink circulation can be turned on at the touch of a button.
1
2
3
4
5
6
7
8
5
Dual Auxiliary Heating System
Platform heating combined with a front heating plate improves lamination and ink curing efficiency.
6
Dual Side Air-Cooled UV Lamp
Air-cooled UV lamps on both sides to slow down the curing temperature and assist in heat dissipation.
7
Platform Suction & Heating Function
One button to turn on platform heating and vacuum adsorption. Strength adjustment is possible.
8
Customizable Sheet Metal Exterior
Can be customized with any color or style of sheet metal, no additional charge for color changes.
-

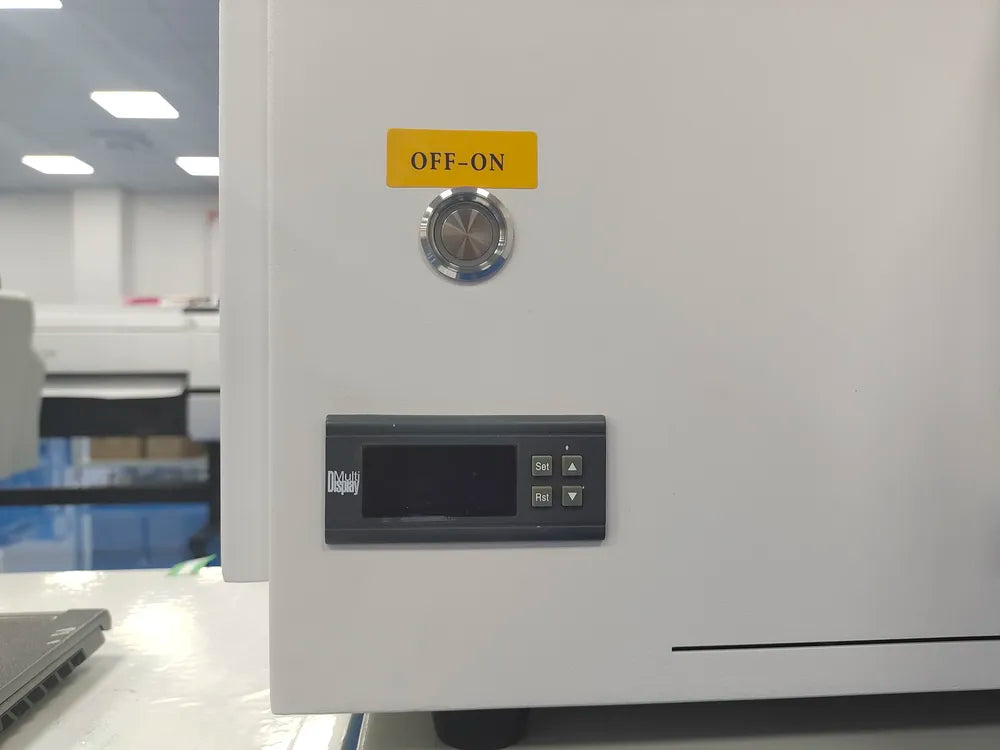

Air Suction, Heating Switch
-

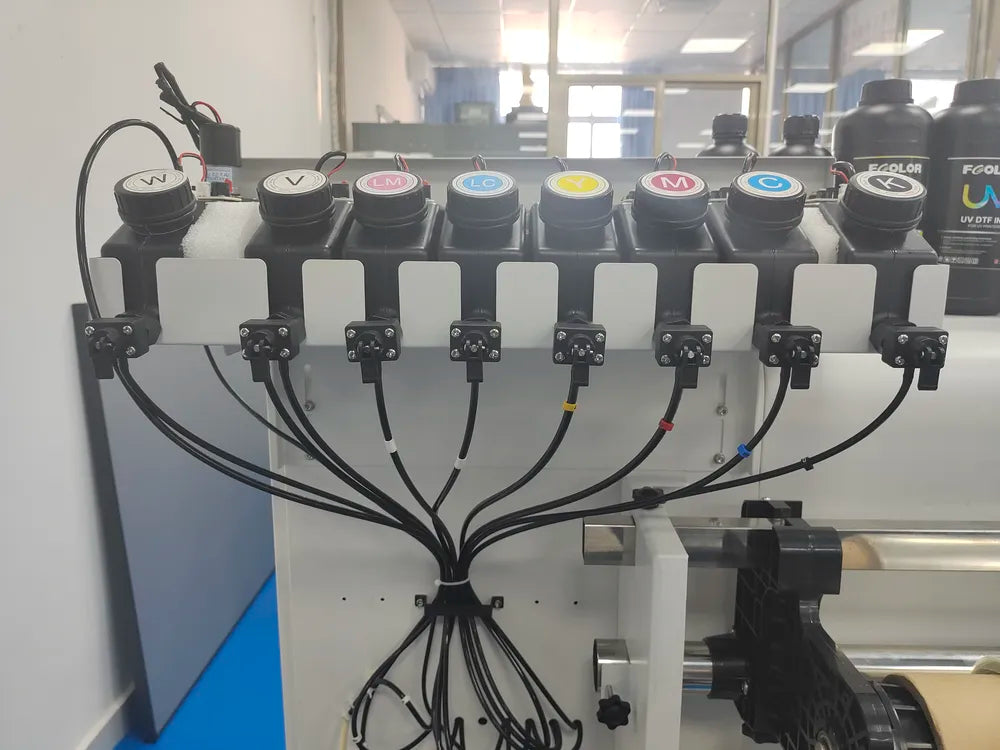

Ink Cartridge Area
-

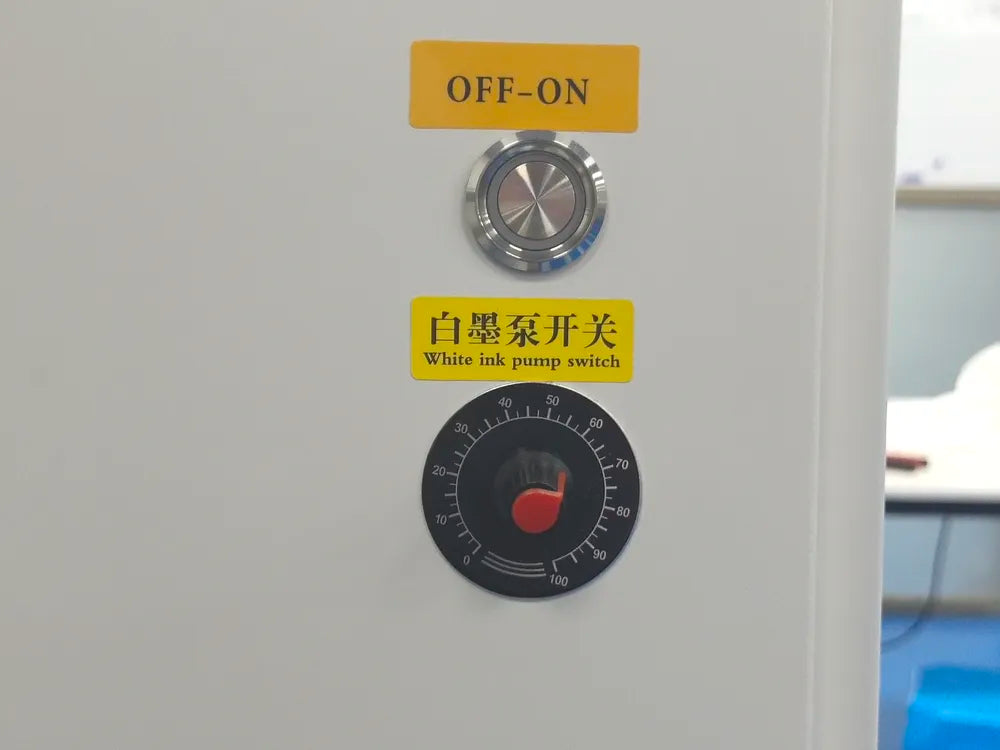

White Ink Circulation Switch
-

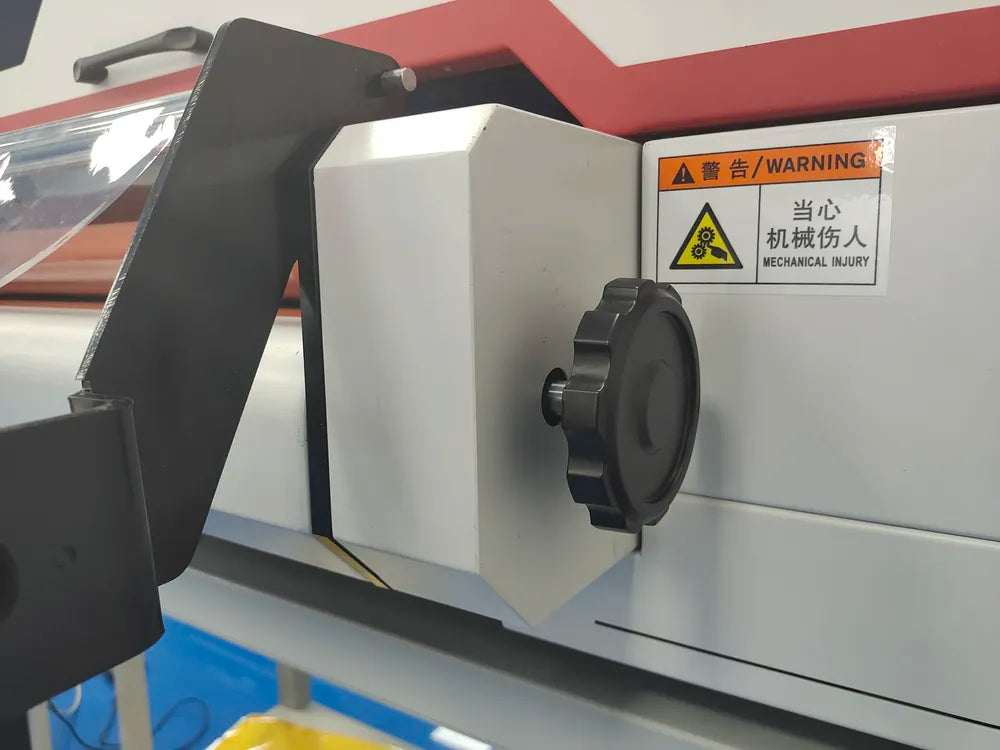

Paper Twister Switch
-

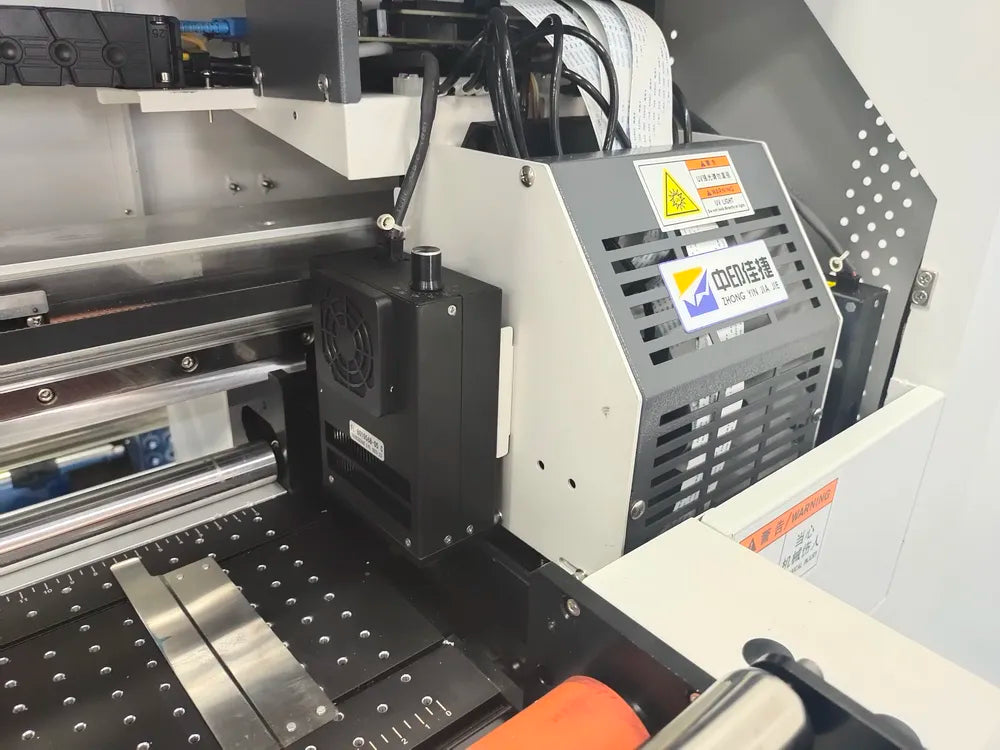

Printhead & UV Lamp Area
-

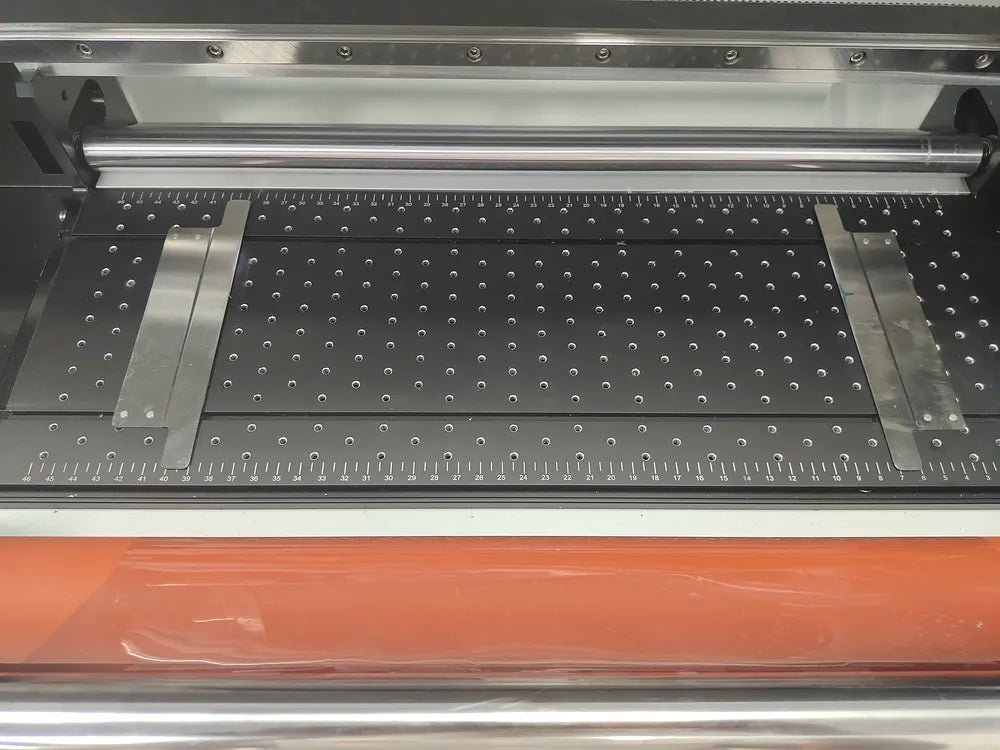

Printing Platform

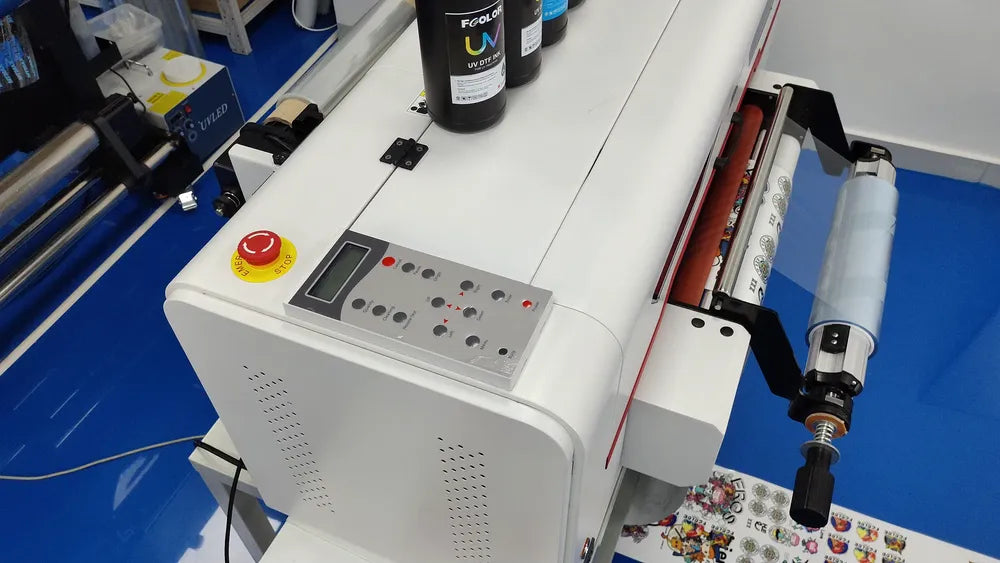

Product Video

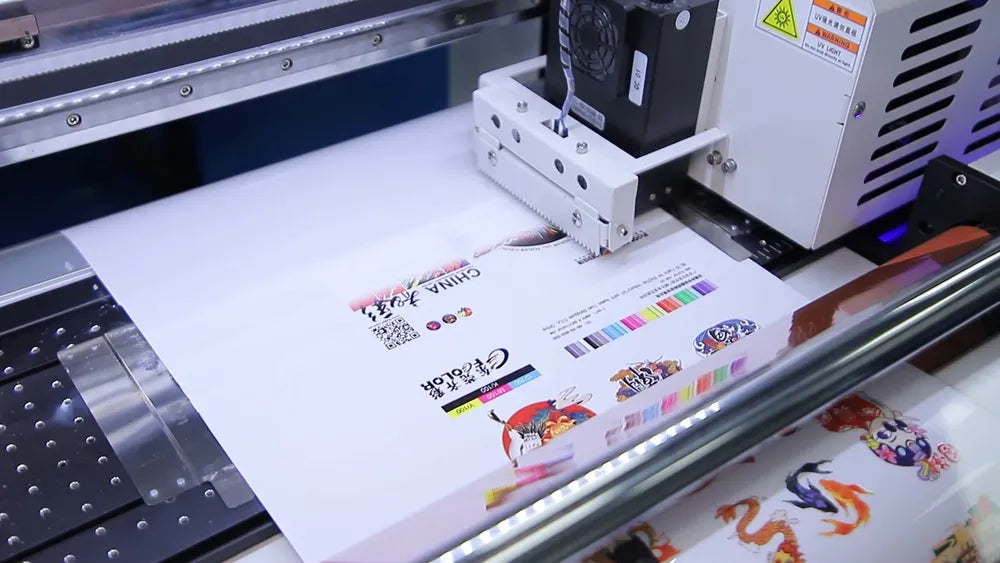

Full Printing Process Show
Printer Introduction Clip
Full Printing Process Show
Printer Introduction Clip
UV DTF Transfer Sticker Applications
UV DTF Printing Equipment Comparison
UVDTF420
$4,800.00
Printing Width (0 - 600mm)70%
Printing Speed (4Pass: 1 - 10m²/h)52%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)80%
Layer Printing (1 Layer Per 25%)75%
Operation Simplicity (1 - 10 Level)74%
Maintenance Freq. (Lower = Better)43%
Daily Output (10m²/h * 8h/day)47%
Stable Printing, Support More Color Output
Desktop machine with three printhead configuration. Multi-color printing and stable, suitable for expansion of printing business.
UVDTF300
$3,250.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)25%
Printing Stability (8h Continuous)63%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 25%)25%
Operation Simplicity (1 - 10 Level)82%
Maintenance Freq. (Lower = Better)65%
Daily Output (10m²/h * 8h/day)20%
Entry-Level Equipment, Cost-Effective
Small desktop tabletop, UV printing and laminating all-in-one machine. Can meet the needs of small batch production.
UVDTF600
$11,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 10m²/h)100%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)100%
Layer Printing (1 Layer Per 25%)100%
Operation Simplicity (1 - 10 Level)78%
Maintenance Freq. (Lower = Better)34%
Daily Output (10m²/h * 8h/day)94%
High-Speed, Multi-Color, Stable Printing
The first choice for large business orders to quickly increase productivity for timely delivery. Compatible with more business needs.
UVDTF420
$4,800.00
Printing Width (0 - 600mm)70%
Printing Speed (4Pass: 1 - 10m²/h)52%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)80%
Layer Printing (1 Layer Per 25%)75%
Operation Simplicity (1 - 10 Level)74%
Maintenance Freq. (Lower = Better)43%
Daily Output (10m²/h * 8h/day)47%
Stable Printing, Support More Color Output
Desktop machine with three printhead configuration. Multi-color printing and stable, suitable for expansion of printing business.
UVDTF300
$3,250.00
Printing Width (0 - 600mm)50%
Printing Speed (4Pass: 1 - 10m²/h)25%
Printing Stability (8h Continuous)63%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 25%)25%
Operation Simplicity (1 - 10 Level)82%
Maintenance Freq. (Lower = Better)65%
Daily Output (10m²/h * 8h/day)20%
Entry-Level Equipment, Cost-Effective
Small desktop tabletop, UV printing and laminating all-in-one machine. Can meet the needs of small batch production.
UVDTF600
$11,500.00
Printing Width (0 - 600mm)100%
Printing Speed (4Pass: 1 - 10m²/h)100%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)100%
Layer Printing (1 Layer Per 25%)100%
Operation Simplicity (1 - 10 Level)78%
Maintenance Freq. (Lower = Better)34%
Daily Output (10m²/h * 8h/day)94%
High-Speed, Multi-Color, Stable Printing
The first choice for large business orders to quickly increase productivity for timely delivery. Compatible with more business needs.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| UVDTF420 UV DTF Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Printhead XP600 | 3 Pcs |
| Waste Ink Device | 1 Set | Ink Damper | 18 Pcs (12 Included, 6 Spare) |
Bracket | 1 Set |
| Product Manuals | 1 Pcs | Product Certificate + Warranty Card | 2 Pcs | Continuous Ink Supply System | 1 Set (Built-In) |
| Accessories Kit | 1 Kit | 500ML Ink Set + Cleaning Fluid | 1 Set | Connector | 1 Set |
| Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line | Power Cable | 1 Line |
| Limit Sensor | 1 Pcs | Roll Paper Long Tube | 1 Set | Printhead Wiring | 1 Set (Install/Spare) |
💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does UVDTF420 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
Do I Get Film With The Purchase Of This Printer?
We do not support gifting films at this time, but may add them in subsequent events, so please keep an eye out for them.
Can I Customize This Printer To Replace Just The Printheads?
Yes, but there is an additional charge for replacing the corresponding print head. We will inform you of the details according to the corresponding price.
Are The Front And Rear Rollers Also Covered Under Warranty?
Yes, we will replace it once for free under warranty, but you will need to pay for shipping.
Can I Expand The Ink Cartridge Capacity Of This Printer?
Yes, please contact us for pricing.
What Should I Do If The Color Is Light After Printing?
This is usually related to the ICC curve for the print color being configured incorrectly, try replacing it. If the ICC is configured correctly, then it is a quality problem with the print head, please request a warranty.
What Should I Do If The Print Appears Blurry?
Please recalibrate the parameters to see the changes, and also prepare different patterns for testing, during which the software settings should be recorded.
What If I Print The Incorrect Number Of Passes?
Please replace the correct ICC curve configuration.
What Should I Do If I Get An Error In Printing?
Please try to adjust the software settings, if most of the software settings report an error, it means there is a problem with the hardware of the device. Please contact an engineer for warranty.
What Checks Need To Be Done Before Using A UV DTF Printer?
You should check the condition of the print head, the ink level, the adequacy of the cleaning fluid, the front and rear rollers, and the indicator lights to see if they are working properly.
What Are The Protective Measures When Using UV Lamps?
It is strictly prohibited to look directly at the UV light source, and you should wear anti-UV goggles; avoid opening the hatch cover when the machine is working.
How To Determine The UV Lamp Needs To Be Replaced?
When curing is degraded, colors are dark, or prints show signs of not drying, the lamp energy should be tested and replaced at the manufacturer's recommended intervals.
Can I Use Non-Original Ink?
Yes, but you need to use an ink that matches the UV light band.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does UVDTF420 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
Do I Get Film With The Purchase Of This Printer?
We do not support gifting films at this time, but may add them in subsequent events, so please keep an eye out for them.
Can I Customize This Printer To Replace Just The Printheads?
Yes, but there is an additional charge for replacing the corresponding print head. We will inform you of the details according to the corresponding price.
Are The Front And Rear Rollers Also Covered Under Warranty?
Yes, we will replace it once for free under warranty, but you will need to pay for shipping.
Can I Expand The Ink Cartridge Capacity Of This Printer?
Yes, please contact us for pricing.
What Should I Do If The Color Is Light After Printing?
This is usually related to the ICC curve for the print color being configured incorrectly, try replacing it. If the ICC is configured correctly, then it is a quality problem with the print head, please request a warranty.
What Should I Do If The Print Appears Blurry?
Please recalibrate the parameters to see the changes, and also prepare different patterns for testing, during which the software settings should be recorded.
What If I Print The Incorrect Number Of Passes?
Please replace the correct ICC curve configuration.
What Should I Do If I Get An Error In Printing?
Please try to adjust the software settings, if most of the software settings report an error, it means there is a problem with the hardware of the device. Please contact an engineer for warranty.
What Checks Need To Be Done Before Using A UV DTF Printer?
You should check the condition of the print head, the ink level, the adequacy of the cleaning fluid, the front and rear rollers, and the indicator lights to see if they are working properly.
What Are The Protective Measures When Using UV Lamps?
It is strictly prohibited to look directly at the UV light source, and you should wear anti-UV goggles; avoid opening the hatch cover when the machine is working.
How To Determine The UV Lamp Needs To Be Replaced?
When curing is degraded, colors are dark, or prints show signs of not drying, the lamp energy should be tested and replaced at the manufacturer's recommended intervals.
Can I Use Non-Original Ink?
Yes, but you need to use an ink that matches the UV light band.
Why Choose Us
Medium-Sized Package
Violence Collision Test
Small-Sized Package
Anti-Collision Test
Warranty
Two-year limited warranty for the entire unit (excluding easily damaged parts).
Support
Remote diagnostics and video guidance, with a 12-hour response time.
Training
Start-up installation and basic training; provide maintenance SOPs and video tutorials.
Production
Professionally managed assembly ensures flawless execution from the outside in.
Accreditation
Provide CE / RoHS / ISO / EMC / LVD / OEKO TEX Verified certificates.
Inspection
Comprehensive Testing to Ensure Reliable and Consistent Performance.
