Medium-Sized Package
Anti-Collision Test
| Model | DTG450 | Brand | ZYJJ | Print Width | 450 * 570mm | Ink Type | DTG Ink | Cartridge | Continuous Ink Supply System |
| Printhead | XC90 * 2 | Ink Capacity | 1000ML | Ink Color | K,C,M,Y,W | Board Type | Senyang | Print Thickness | 50mm |
| Print Direction | Bi / Uni-Direction | Printing Layers | Color/White Printing | Work Environment Requirements |
Temperature 15-32°C Humidity 45-70% |
Printing Software | Senyang ZY | Mapping Software | Xiaobai Impressions |
| Connection Port | 1000 Megabit Ethernet Port |
Print Method | Flatbed Printing | Operating System | Windows 7/10/11 | Package Size | 1300 * 1650 * 700mm | Body Size | 1145 * 1535 * 590mm |
| Gross Weight | 195kg | Net Weight | 180kg | Power Req. | AC220V / 110V +/-10% 50/60HZ 200-300W |
Printing Speed | 4Pass 960 * 2400dpi 90s / 450 * 570mm |
Maximum Print Resolution | 2400dpi |
Swipe →

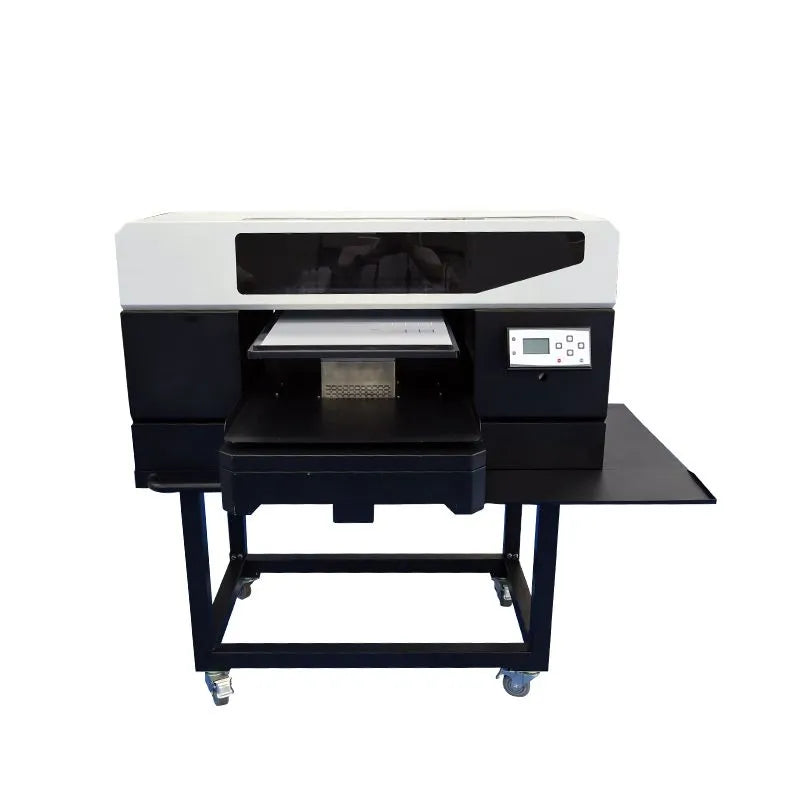

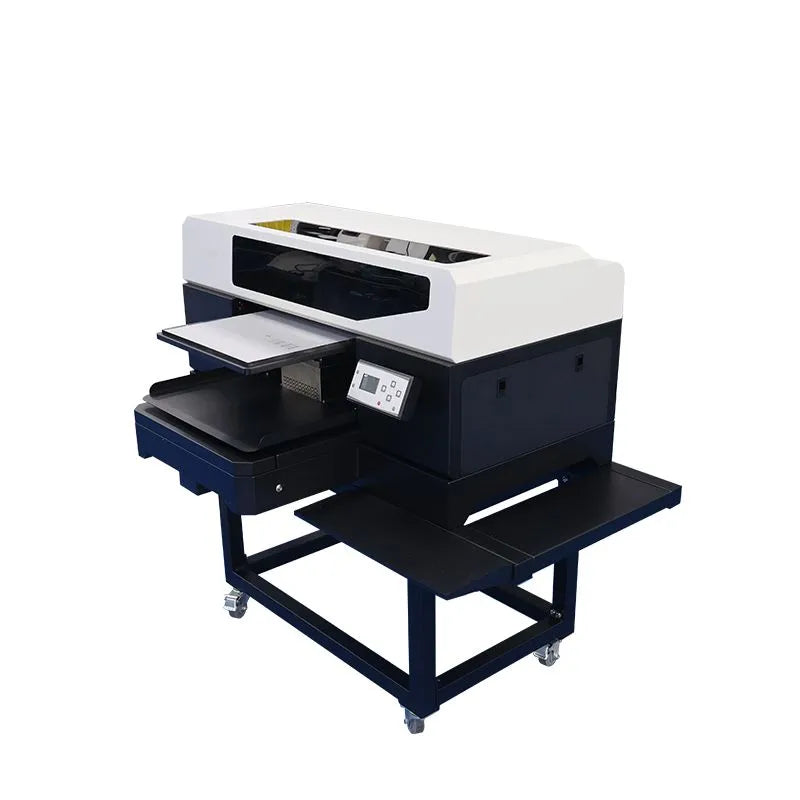

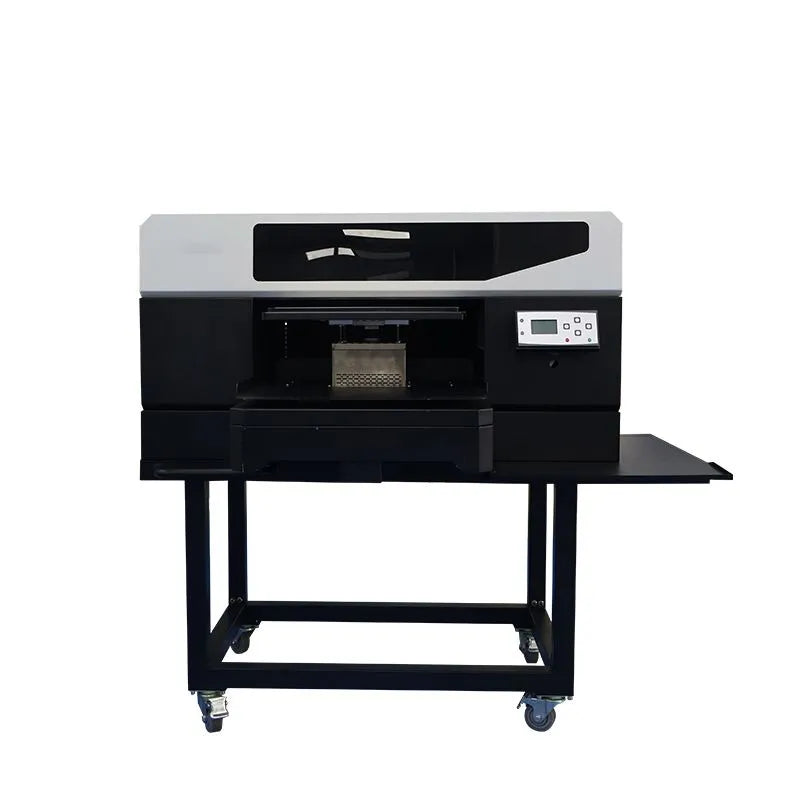

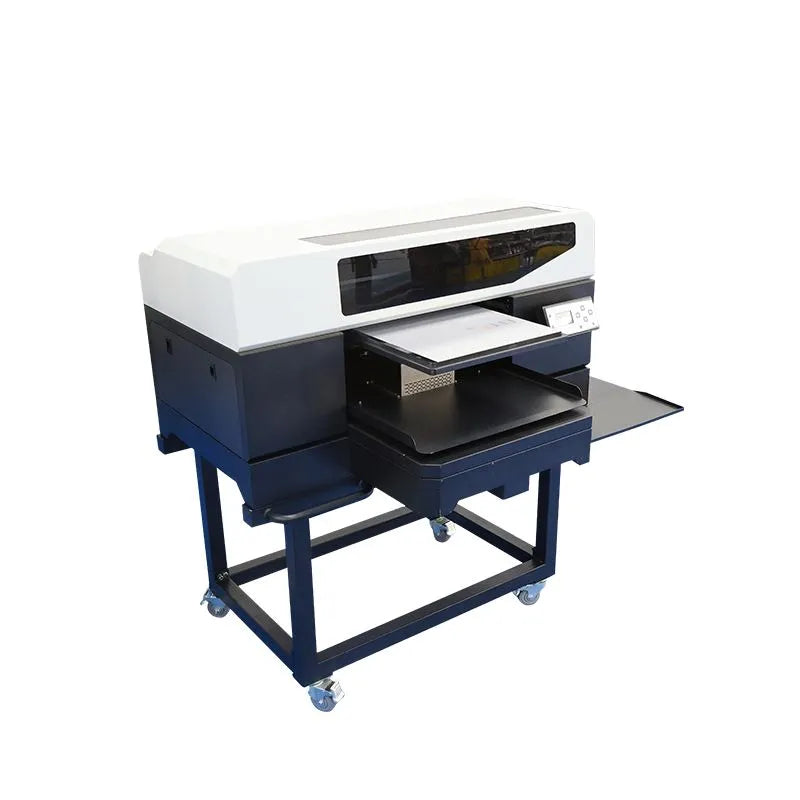

DTG450 Direct To Garment Printer Features
1
Ball Screw Linear Stage
Makes the printer's printhead move more accurately, smoothly, and durably. Stabilize printing.
2
High-Speed Dual Printheads
Offers performance comparable to the 13200, delivering fast printing speeds and excellent results.
3
Smart Printhead/Station Bin
Integrated, automated management to reduce residual ink and facilitate easier maintenance.
4
Enhanced Ink Supply System
Equipped with a 1000ml ink tank for longer printing; built-in white ink agitator.
5
Waste Ink Collection System
Automatically collects excess waste ink and provides automatic alerts when waste ink is full.
1
2
3
4
5
6
7
8
9
10
6
High-Precision Positioning System
High-precision servo motor, precise slide guide, screw four-axis linkage lifting and lowering.
7
High-Speed, Stable Board
Using the Senyang board, a high-precision, high-speed, and stable network port board.
8
One-Touch Start/Pause Switch
One-button start for printing, white ink circulation, and white ink mixing.
9
Smart Ink Circulation System
New negative pressure ink tube configuration improves ink flow and enhances nozzle fluidity.
10
Self-Contained Extension Workbench
There are areas for computers and supplies, with pre-wired holes for easy connections.
-

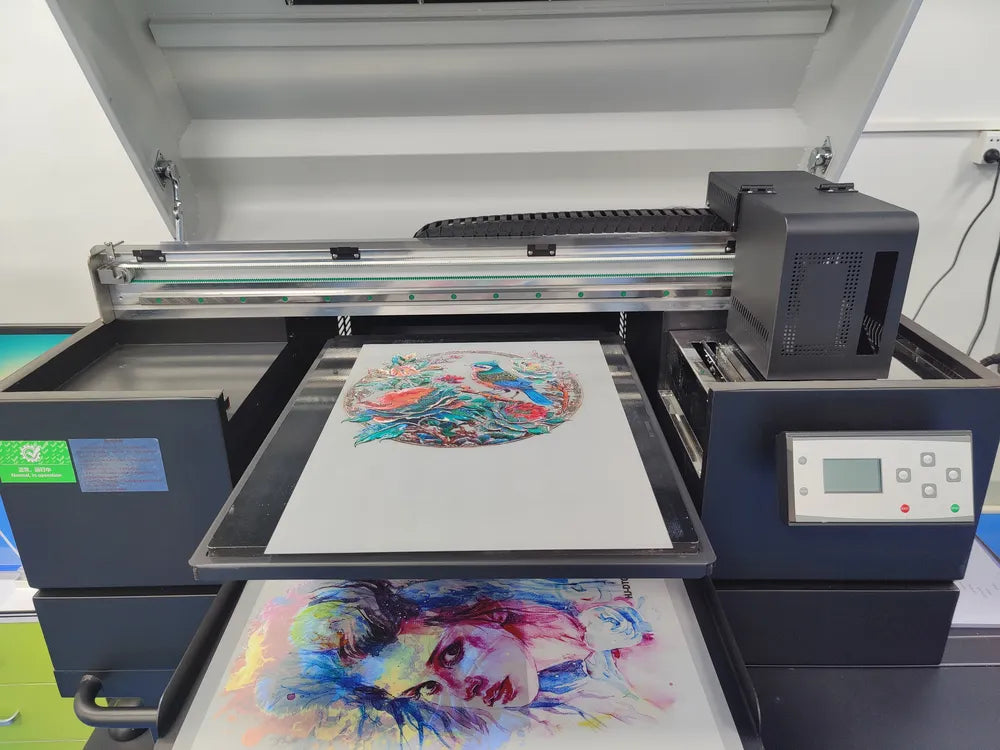

Enclosed Bin Design
Fully Enclosed Design For A More Aesthetically Pleasing Overall Appearance.
-

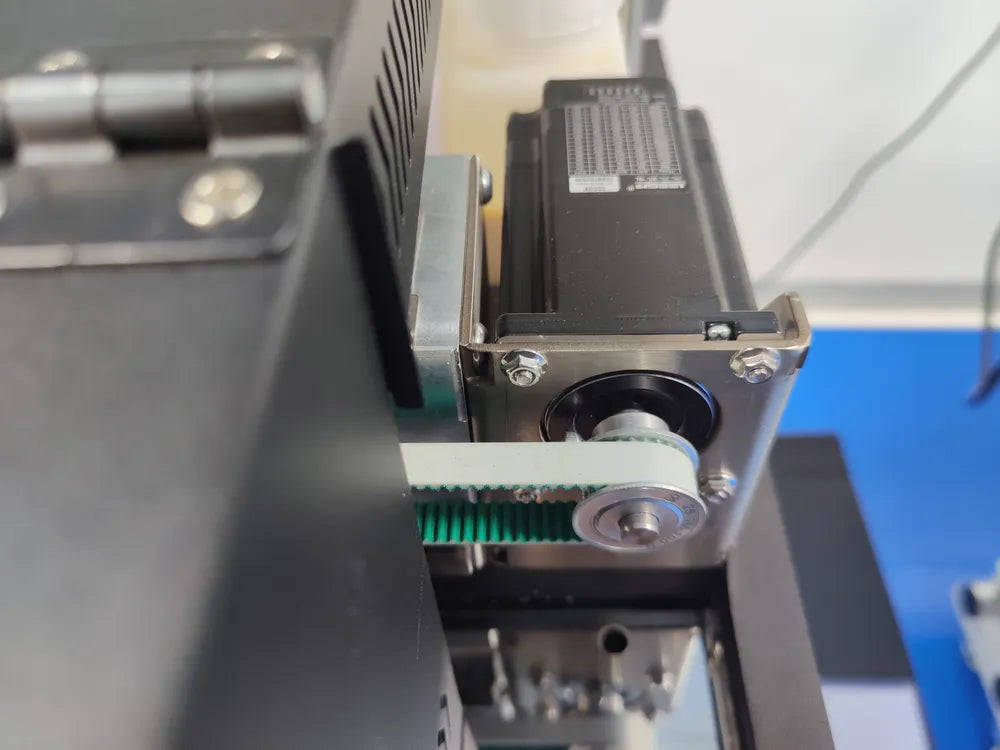

High Precision Motor
High-Speed Servo Motor Control For Improved Stability, Speed, And Efficiency.
-

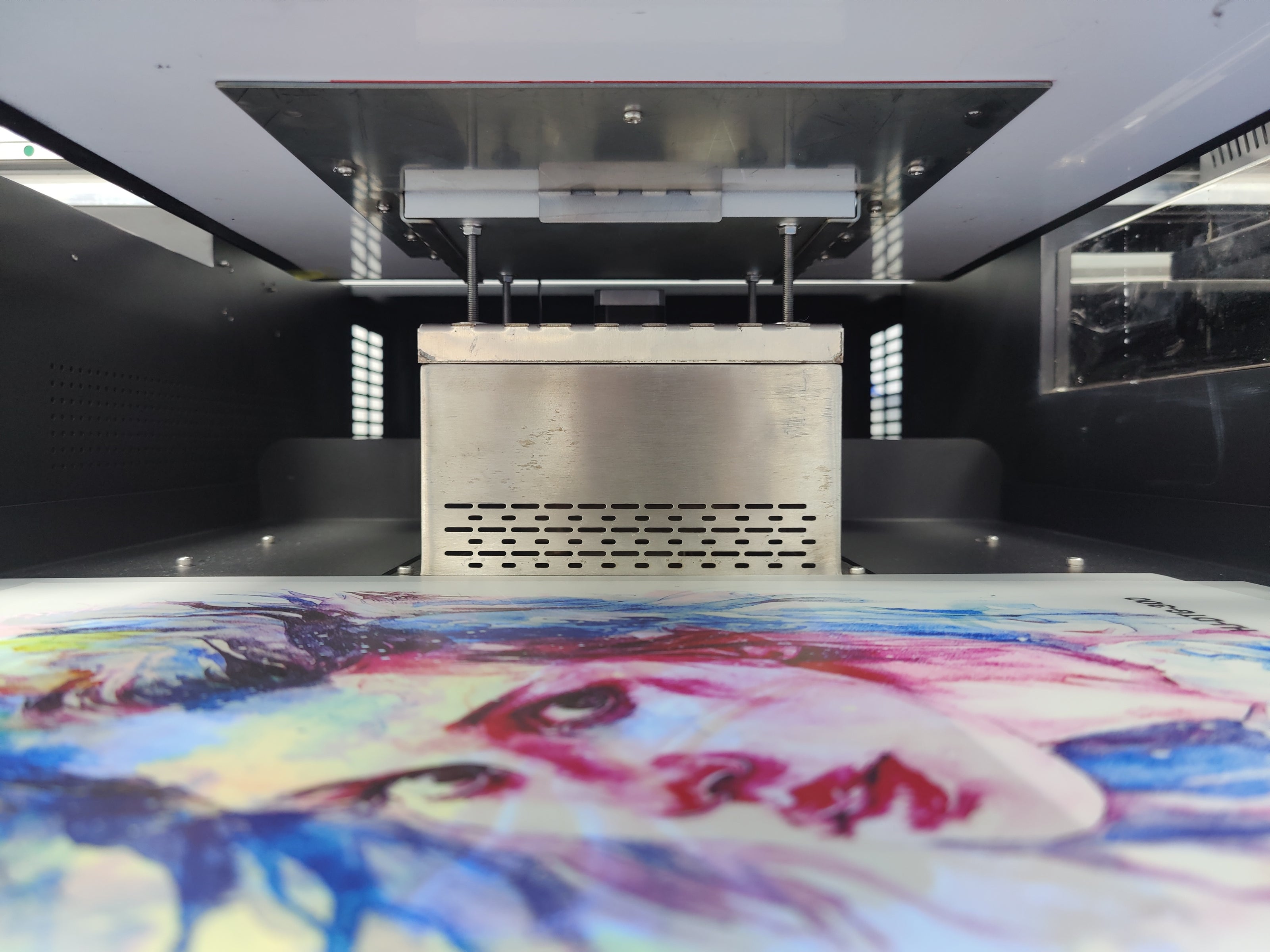

Four-Axis Ball Screw Lift
Four-Axis Stabilization With Lifting, Accurate To Within 0.05mm Deviation.
-

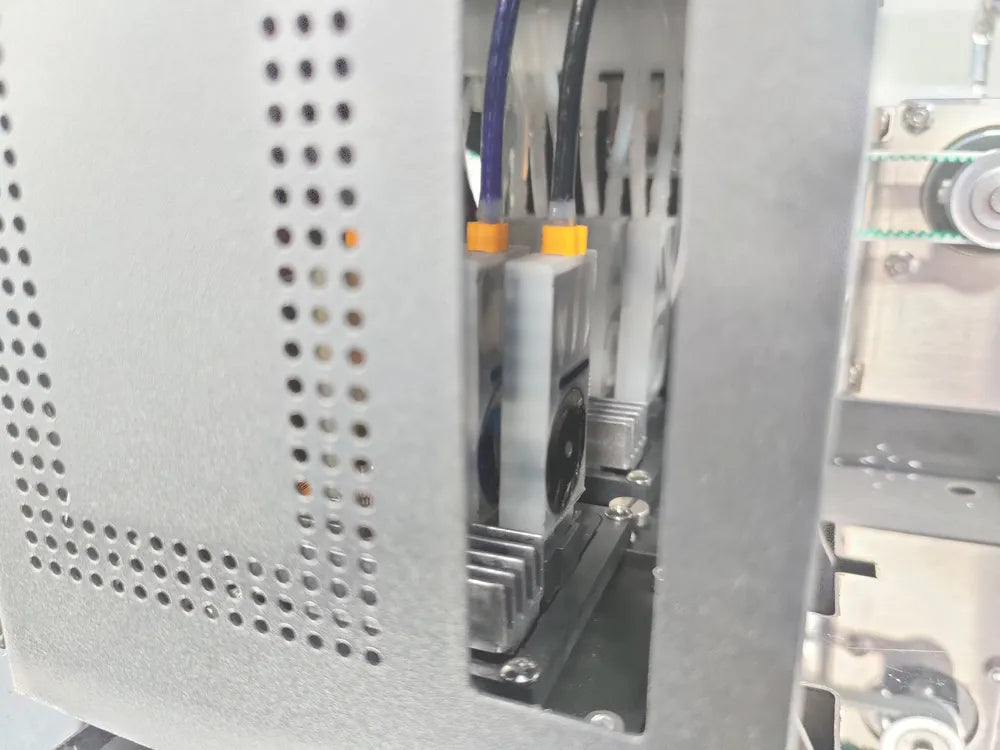

High-Speed Printheads
High-Performance Dual Printhead With Comparable To The I3200. Fast Printing.

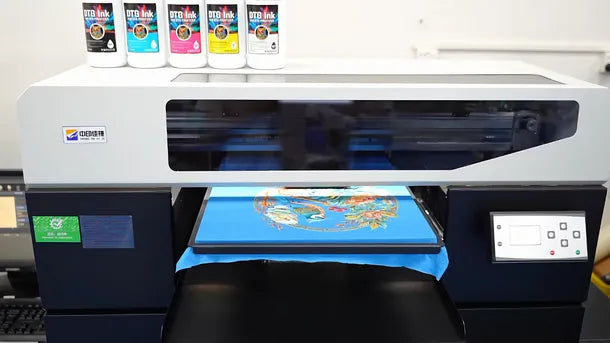

Product Video

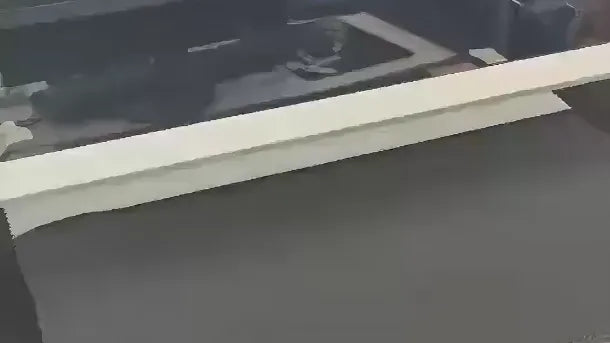

Full Printing Process
DTG Printing Process
Embroidery Effect Show
Full Printing Process
DTG Printing Process
Embroidery Effect Show
1
Color Channel Creation
2
RIP Image Maker
3
Processing Liquid Spraying
4
First Step Drying
5
Control Software Printing
6
Second Step Drying
7
Finished Product Printing
DTF or DTG Printer: Which Choose?
DTG450 450mm Direct to Garment Printer
VS
DTF600T 9 Color Commercial 600mm DTF Printer
The touch depends on the fabric itself
Finished Product Touch Feel
The surface feels like it's covered with a membrane
Pre-treatment spray required before printing
Substrate Pre-Treatment
Directly printed onto film, then transferred
Best with pure cotton or a cotton blend
Material Applicability
Cotton, Polyester, Blend, Leather, Nylon, Canvas
More natural transition of color levels
Nuance & Gradation
Excellent detail and sharp edges (Affected By Icc)
Drying ink is sufficient (need consider time)
Post-Printing Processing
Powder curing + heat pressing in two steps
Better suited to flatten the body position
Printing Material Requirements
Brims, bags, ready-to-wear, greater flexibility
Small single limited customization is better
Small Order / Personalization
Batch film preparation, transfer anytime
DTG Printing Equipment Comparison
DTG450
$7,680.00
Printing Width (0 - 600mm)75%
Printing Height (0 - 200mm)25%
Printing Speed (4Pass: 1 - 15m²/h)68%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)50%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)60%
Maintenance Freq. (Lower = Better)50%
Daily Output (15m²/h * 8h/day)60%
Steady Speed, Consistent Quality
Designed for those seeking consistent and reliable color output performance and stable daily output while ensuring accuracy.
DTG330
$9,000.00
Printing Width (0 - 600mm)63%
Printing Height (0 - 200mm)75%
Printing Speed (4Pass: 1 - 15m²/h)73%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)90%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)80%
Maintenance Freq. (Lower = Better)54%
Daily Output (15m²/h * 8h/day)66%
High Efficiency, Broad Color Mastery
Wider color gamut support and faster printing speeds, allowing for both high-end customization and mass production.
DTG450
$7,680.00
Printing Width (0 - 600mm)75%
Printing Height (0 - 200mm)25%
Printing Speed (4Pass: 1 - 15m²/h)68%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)50%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)60%
Maintenance Freq. (Lower = Better)50%
Daily Output (15m²/h * 8h/day)60%
Steady Speed, Consistent Quality
Designed for those seeking consistent and reliable color output performance and stable daily output while ensuring accuracy.
DTG330
$9,000.00
Printing Width (0 - 600mm)63%
Printing Height (0 - 200mm)75%
Printing Speed (4Pass: 1 - 15m²/h)73%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)90%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)80%
Maintenance Freq. (Lower = Better)54%
Daily Output (15m²/h * 8h/day)66%
High Efficiency, Broad Color Mastery
Wider color gamut support and faster printing speeds, allowing for both high-end customization and mass production.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| DTG450 DTG Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Printhead XC90 | 2 Pcs |
| Bracket | 1 Set | Ink Sac | 10 Pcs | Product Manuals | 1 Pcs |
| Continuous Ink Supply System | 1 Set (Built-In) |
Accessories Kit | 1 Kit | Product Certificate + Warranty Card | 2 Pcs |
| Ink Pad | 1 Pcs | Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line |
| 1000ML Ink Set (C/M/Y/K/W/R/G/B/OR) | 1 Set | Dark Processing Liquid | 1 Bottle (1000ml) |
Power Cable | 1 Line |
| Accessory Screw Bag | 1 Set | Waste Ink Device | 1 Set (Built-In) |
Cleaning Fluid | 1 Bottle (500ml) |
💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does DTG450 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
What Are the Space Requirements?
Two square meters of space should be enough, as this is an integrated device with no extension equipment.
Is Professional Engineer Installation Required?
You can do this remotely by following the manual/video, and if you need to come to your home, you can make an appointment (depending on area arrangements). Don't worry, we provide very detailed information.
Is Professional Electrician Installation Required?
Ordinary factory/studio power is sufficient; wiring and leveling according to the manual is sufficient to turn on the machine.
Does A Built-In Computer Need An Operating System?
No need. The built-in computer already has a fully compatible operating system, and the relevant printing software will be installed and configured as well. Everything will be fully debugged.
Ink Bleed Occurred In The Fabric Intended For Printing
This is usually caused by incompatible or expired developing solution, failure to dry the surface, or insufficient spray application. Try applying more.
The Colors In The Print Are Slightly Off
This is usually related to incorrect ICC profiles, wrong settings, or incorrect ink firing order. Adjustments can be made accordingly based on these possible causes.
The Print Doesn't Look Good On The Fabric
Please ensure you are printing on the appropriate fabric, generally 100% cotton is recommended. Other materials may cause this issue.
The Color Fades With Light Wiping
This is usually related to insufficient drying or excessive ink output. Try adjusting the drying time and ink output to see if that makes a difference.
Tips for Caring for Dark Clothing
When using white ink as an underbase for dark-colored garments, increase the ink volume by 30-45% to ensure vibrant colors in the top layer.
Notice Regarding Washing Printed Products
You need to allow 24 hours of cooling time after drying and curing to prevent the pattern from peeling off. To reduce the waiting time for cooling, you need better ink.
Pretreatment Solution Spraying Problem Prevention
The pretreatment solution needs to be sprayed evenly and dried. Avoid excessive spraying, which can lead to hardening or yellowing and affect the printing results of the ink.
Color Channel Configuration Issues
We recommend using the color channel configuration we've provided. If you're interested in learning how to configure it yourself, we can provide a tutorial.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does DTG450 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
What Are the Space Requirements?
Two square meters of space should be enough, as this is an integrated device with no extension equipment.
Is Professional Engineer Installation Required?
You can do this remotely by following the manual/video, and if you need to come to your home, you can make an appointment (depending on area arrangements). Don't worry, we provide very detailed information.
Is Professional Electrician Installation Required?
Ordinary factory/studio power is sufficient; wiring and leveling according to the manual is sufficient to turn on the machine.
Does A Built-In Computer Need An Operating System?
No need. The built-in computer already has a fully compatible operating system, and the relevant printing software will be installed and configured as well. Everything will be fully debugged.
Ink Bleed Occurred In The Fabric Intended For Printing
This is usually caused by incompatible or expired developing solution, failure to dry the surface, or insufficient spray application. Try applying more.
The Colors In The Print Are Slightly Off
This is usually related to incorrect ICC profiles, wrong settings, or incorrect ink firing order. Adjustments can be made accordingly based on these possible causes.
The Print Doesn't Look Good On The Fabric
Please ensure you are printing on the appropriate fabric, generally 100% cotton is recommended. Other materials may cause this issue.
The Color Fades With Light Wiping
This is usually related to insufficient drying or excessive ink output. Try adjusting the drying time and ink output to see if that makes a difference.
Tips for Caring for Dark Clothing
When using white ink as an underbase for dark-colored garments, increase the ink volume by 30-45% to ensure vibrant colors in the top layer.
Notice Regarding Washing Printed Products
You need to allow 24 hours of cooling time after drying and curing to prevent the pattern from peeling off. To reduce the waiting time for cooling, you need better ink.
Pretreatment Solution Spraying Problem Prevention
The pretreatment solution needs to be sprayed evenly and dried. Avoid excessive spraying, which can lead to hardening or yellowing and affect the printing results of the ink.
Color Channel Configuration Issues
We recommend using the color channel configuration we've provided. If you're interested in learning how to configure it yourself, we can provide a tutorial.
Why Choose Us
Medium-Sized Package
Violence Collision Test
Small-Sized Package
Anti-Collision Test
Warranty
Two-year limited warranty for the entire unit (excluding easily damaged parts).
Support
Remote diagnostics and video guidance, with a 12-hour response time.
Training
Start-up installation and basic training; provide maintenance SOPs and video tutorials.
Production
Professionally managed assembly ensures flawless execution from the outside in.
Accreditation
Provide CE / RoHS / ISO / EMC / LVD / OEKO TEX Verified certificates.
Inspection
Comprehensive Testing to Ensure Reliable and Consistent Performance.
