Medium-Sized Package
Anti-Collision Test
| Model | UFL330 | Brand | ZYJJ | Print Width | 330 * 450mm | Ink Type | UV Ink |
| Printhead | XP600 * 2 | Ink Capacity | 250ML | Ink Color | K,C,M,Y,W+V | Maximum Height | 150mm |
| Work Environment Requirements |
Temperature 25-28°C Humidity ≤50% |
Printing Software | FlexiPRINT MainTop |
Mapping Software | Photoshop | Power Req. | AC220V / 110V +/-10% 50/60HZ 450W |
| Print Method | Flatbed Printing | Operating System | Windows 7/8/10/11 | Package Size | 920 * 875 * 750mm | Body Size | 800 * 780 * 560mm |
| Gross Weight | 90kg | Net Weight | 80kg | Printing Speed | 8Pass: 3m²/h 12Pass: 2m²/h |
Maximum Print Resolution | 1440dpi |
Swipe →

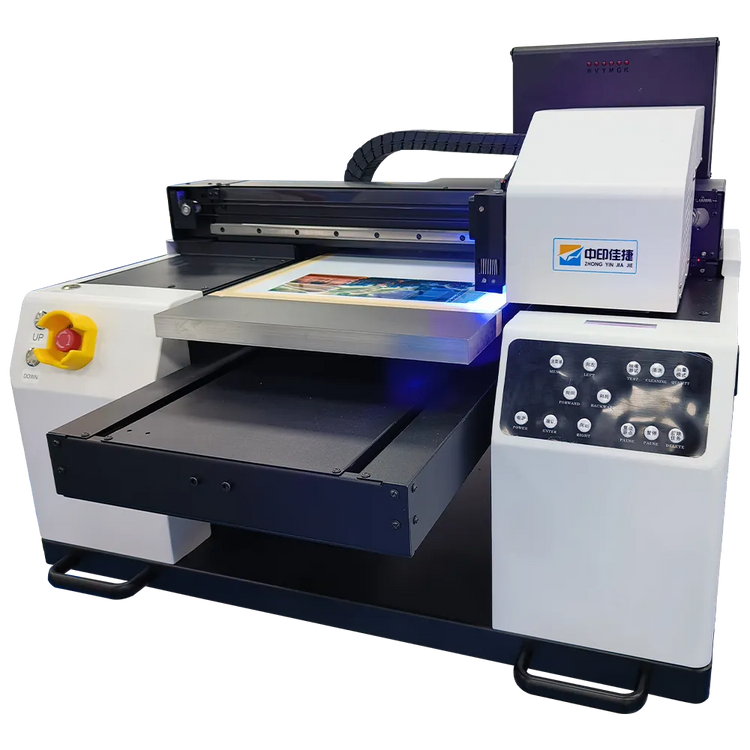

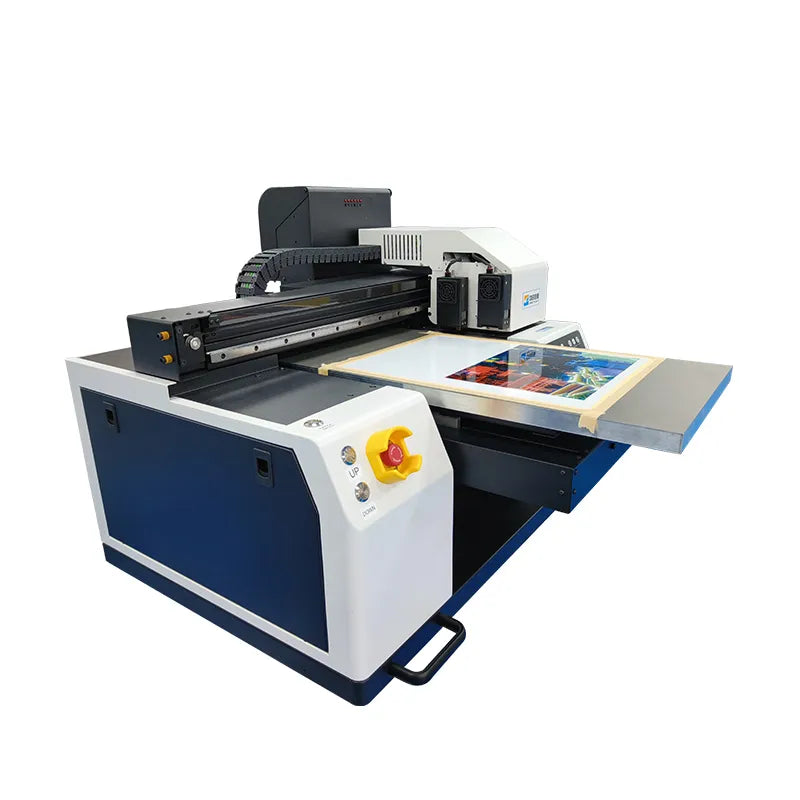

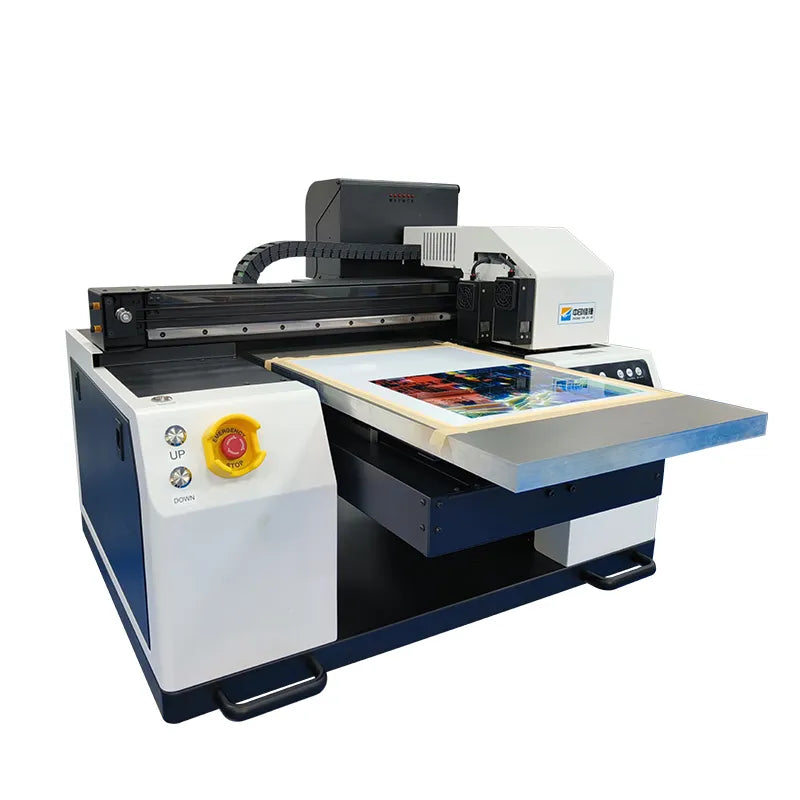

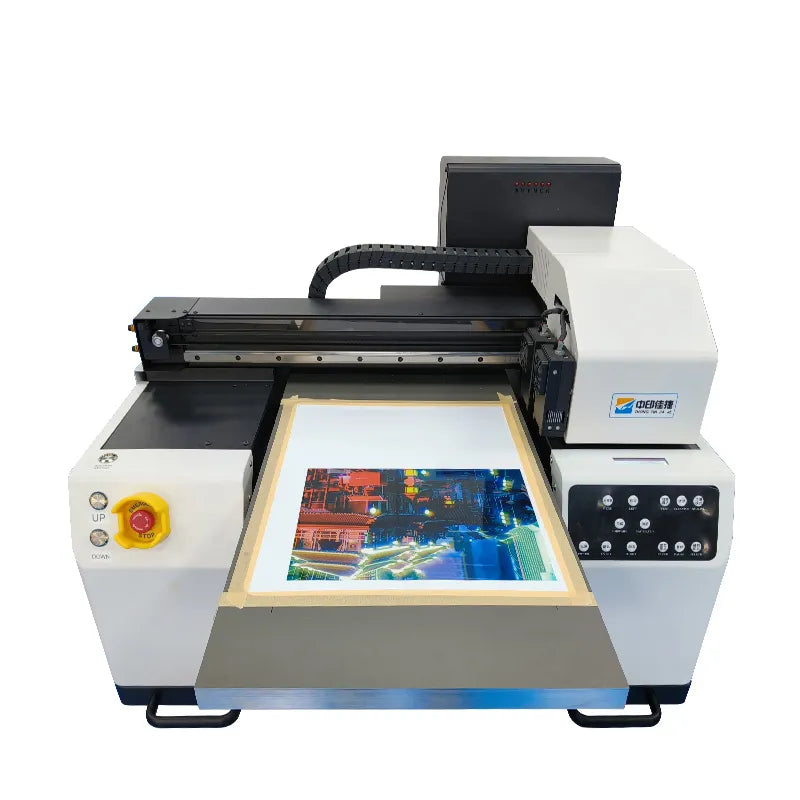

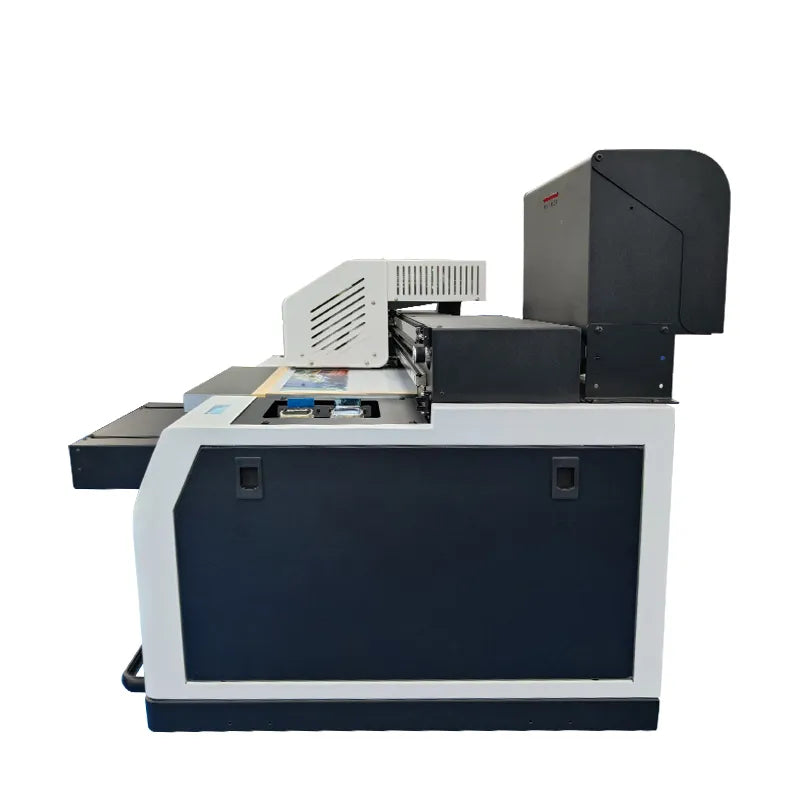

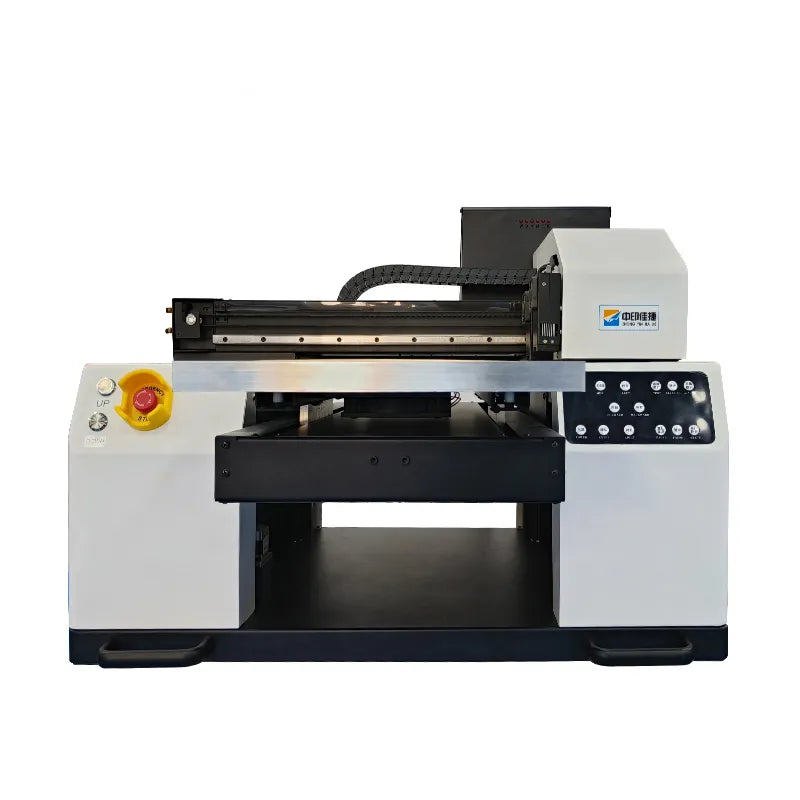

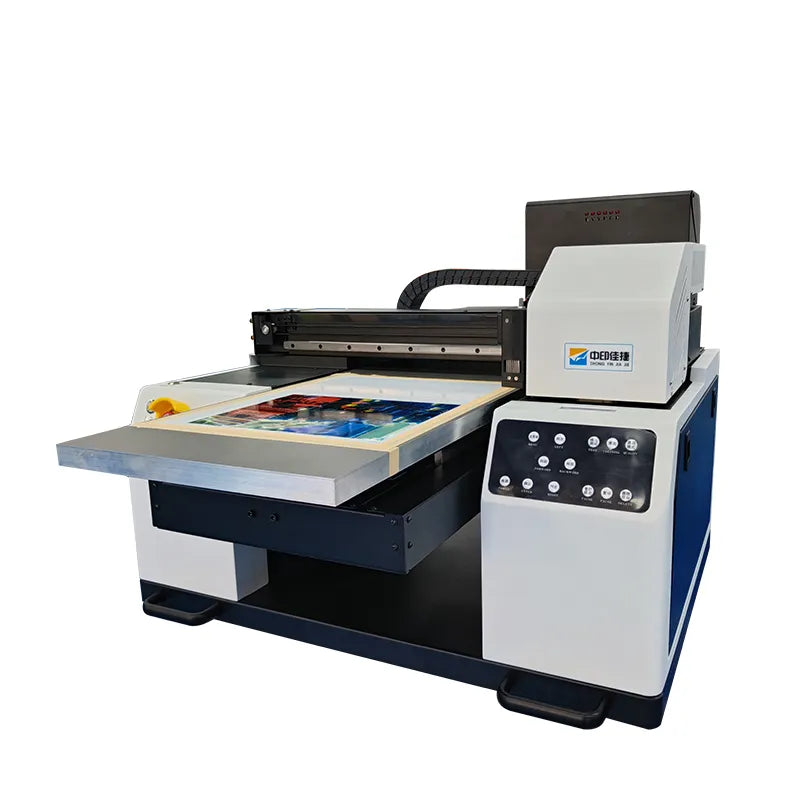

UFL330 UV Flatbed Printer Features
1
Dual Printhead Configurations
Equipped with 2 XP600 printheads and a fixed-lock carriage, ensuring stable and smooth printing.
2
High-Pressure Suction Fan
The built-in, high-pressure suction fan at the base of the platform ensures substrate stays in place.
3
Low Ink Alert System
Automatic audible alerts when ink levels run low, so you don't have to worry about printing out of ink.
1
2
3
4
5
6
4
One-Way Dual UV Lamp Layout
Adopt single side double UV lamp layout, stabilize curing ink and reduce undrying phenomenon.
5
Self-Elevating Printing Platform
Global control of Y-axis movement, easy disassembly. Stable, reduces print overlap.
6
One-Touch Switch Panel
One key can manually turn on the platform lifting, platform adsorption, and forced stop function.
Product Video

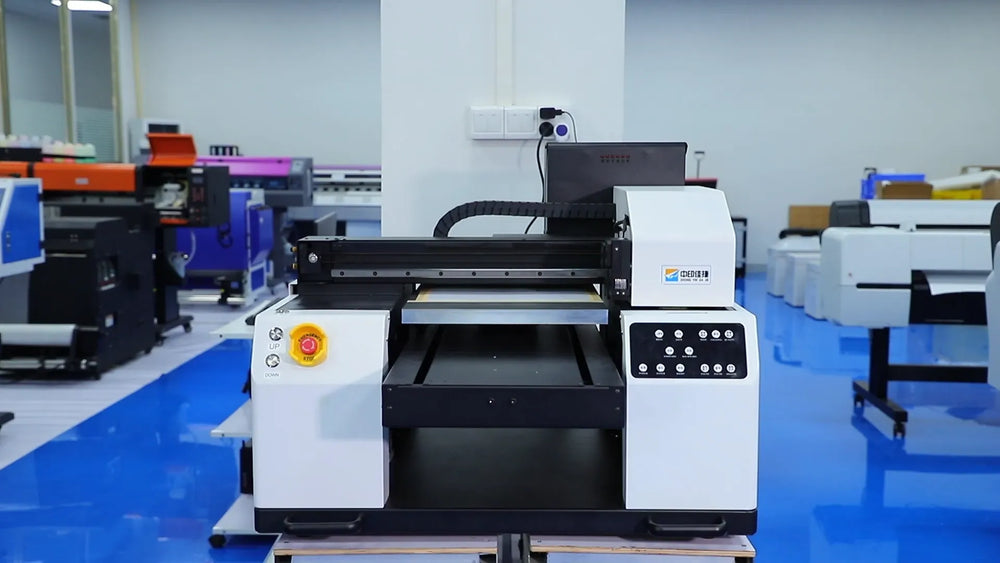

Decorative Painting Printing

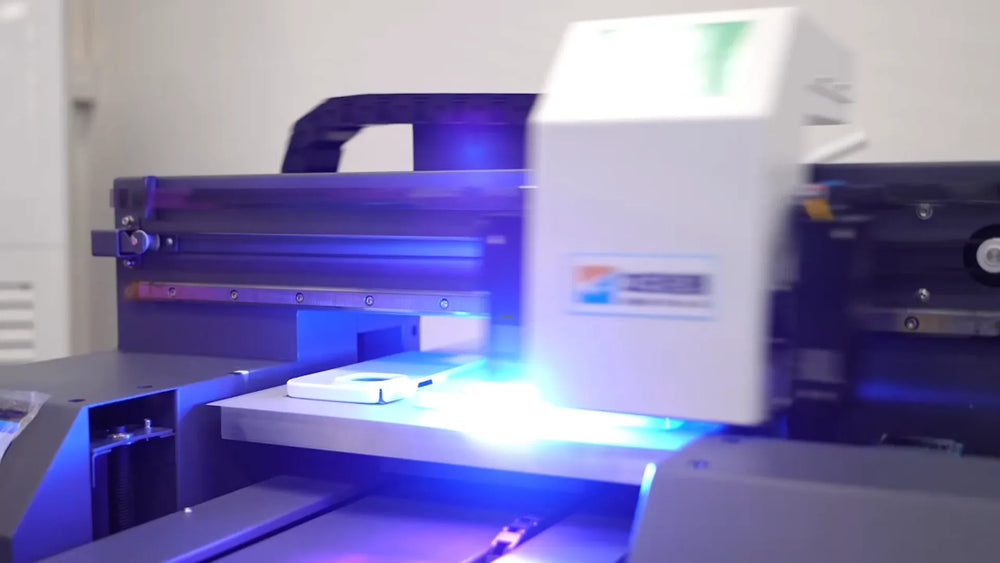

Cell Phone Case Printing
Decorative Painting Printing
Cell Phone Case Printing

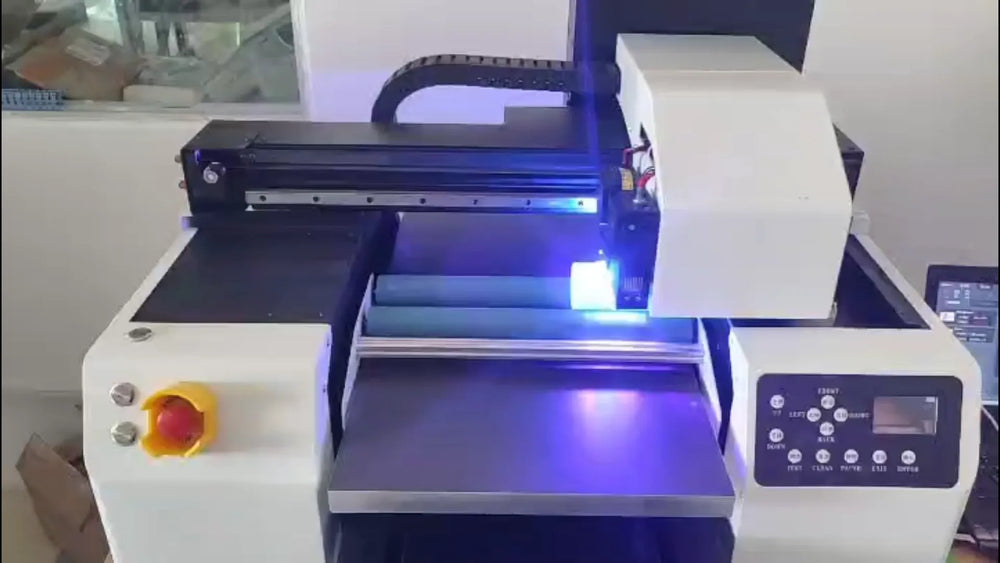

Cylindrical Bottle Printing

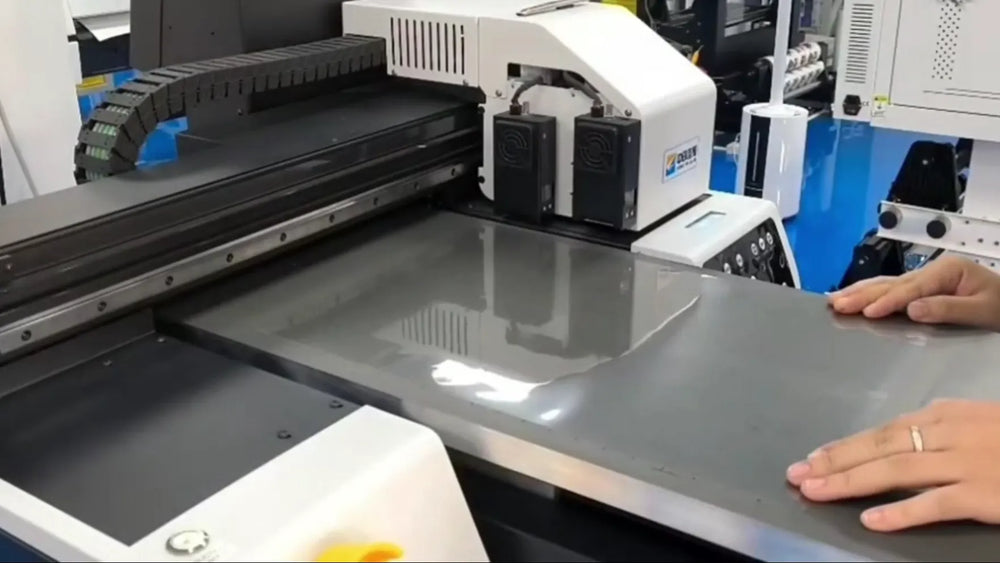

Hot Stamping Foil Process
Cylindrical Bottle Printing
Hot Stamping Foil Process
UV Printing Machines Applications
Metal Product
Silicone Product
Glass Product
Ceramic Crafts
Acrylic Product
Logo, Signage
Packaging Supplies
Personalized Gifts
Stationery, Sports Equipment
UV Flatbed Printing Equipment Comparison
UFL330
$3,050.00
Printing Width (0 - 600mm)55%
Printing Height (0 - 300mm)50%
Printing Speed (8Pass: 1 - 5m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)52%
Daily Output (5m²/h * 8h/day)52%
Mold Scalability (1 Molds Per 10%)40%
Entry-Level Versatility, Big Value Start
Small footprint, quick configuration, and easy material switching to create customized one-offs or small batches.
FRYA3
$3,000.00
Printing Width (0 - 600mm)55%
Printing Height (0 - 300mm)45%
Printing Speed (8Pass: 1 - 5m²/h)25%
Printing Stability (8h Continuous)70%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)80%
Maintenance Freq. (Lower = Better)43%
Daily Output (5m²/h * 8h/day)18%
Mold Scalability (1 Molds Per 10%)60%
Cloud-Based Expansion, Online Printing
It can be used with AI cloud-based intelligent design for printing. Offering expansion, it can even print on clothing.
UFL6090
$8,900.00
Printing Width (0 - 600mm)100%
Printing Height (0 - 300mm)100%
Printing Speed (8Pass: 1 - 5m²/h)80%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 33%)100%
Operation Simplicity (1 - 10 Level)84%
Maintenance Freq. (Lower = Better)40%
Daily Output (5m²/h * 8h/day)72%
Mold Scalability (1 Molds Per 10%)60%
Industrial-Scale Precision, Premium Versatility
Easy to integrate into production lines. Accommodates diverse expansion to meet the printing needs of more products.
UFL330
$3,050.00
Printing Width (0 - 600mm)55%
Printing Height (0 - 300mm)50%
Printing Speed (8Pass: 1 - 5m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)52%
Daily Output (5m²/h * 8h/day)52%
Mold Scalability (1 Molds Per 10%)40%
Entry-Level Versatility, Big Value Start
Small footprint, quick configuration, and easy material switching to create customized one-offs or small batches.
FRYA3
$3,000.00
Printing Width (0 - 600mm)55%
Printing Height (0 - 300mm)45%
Printing Speed (8Pass: 1 - 5m²/h)25%
Printing Stability (8h Continuous)70%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)80%
Maintenance Freq. (Lower = Better)43%
Daily Output (5m²/h * 8h/day)18%
Mold Scalability (1 Molds Per 10%)60%
Cloud-Based Expansion, Online Printing
It can be used with AI cloud-based intelligent design for printing. Offering expansion, it can even print on clothing.
UFL6090
$8,900.00
Printing Width (0 - 600mm)100%
Printing Height (0 - 300mm)100%
Printing Speed (8Pass: 1 - 5m²/h)80%
Printing Stability (8h Continuous)80%
Color Support (1 Color Per 10%)60%
Layer Printing (1 Layer Per 33%)100%
Operation Simplicity (1 - 10 Level)84%
Maintenance Freq. (Lower = Better)40%
Daily Output (5m²/h * 8h/day)72%
Mold Scalability (1 Molds Per 10%)60%
Industrial-Scale Precision, Premium Versatility
Easy to integrate into production lines. Accommodates diverse expansion to meet the printing needs of more products.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| UFL330 UV Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Printhead XP600 | 2 Pcs |
| Waste Ink Device | 1 Set | Ink Damper | 18 Pcs (12 Included, 6 Spare) |
Ink Pad | 1 Pcs |
| Product Manuals | 1 Pcs | Product Certificate + Warranty Card | 2 Pcs | Continuous Ink Supply System | 1 Set (Built-In) |
| Accessories Kit | 1 Kit | 500ML Ink Set | 1 Set | Cleaning Fluid Moisturizer Liquid | 2 Bottle (1000ml Each) |
| Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line | Power Cable | 1 Line |
💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does UFL330 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
Are Additional Modules Included In This Product?
Adding additional modules requires you to contact us to purchase them, or you can purchase the corresponding modules on your own. The products on this page are for printing devices only and do not include modules.
How Do I Install Additional Expansion Device Modules?
Different modules have different installation methods, if you buy the corresponding module from us, we will help you install it and ship it to you. If the module is bigger, we will also provide the corresponding installation video so that you can install it by yourself.
Does This Product Have A Visual Recognition Extension?
This product also has a visual recognition extension, so if you need it, please contact us for a purchase negotiation.
Does Installing Mods Not Provided By This Product Affect The Warranty?
If a third-party module causes damage to a part covered by the warranty, then it is not eligible for warranty service. If the problem is with the part itself and not the module, then it can be covered under warranty.
What If The Printed Ink Is Not Drying?
This is usually because the parameters of the UV lamp are not set properly, try setting the wavelength to match the UV ink.
What Should I Do If My Printing Appears Blurry?
Please readjust the software settings if you experience blurring. If no blurring occurs with other settings, consider replacing the print pattern.
What If There Is A Lag In The Printing Process?
Please make sure that the data cable is connected properly and that there are no problems with the network.
What Should I Do If I Get An Error In Printing?
This is usually related to the print software settings, please adjust the software settings. If the problem persists after the software settings have been adjusted, the pattern does not meet the output requirements of the software.
What Checks Need To Be Done Before Using A UV Flatbed Printer?
You should check the status of the printhead, the ink level, whether the cleaning fluid is sufficient, whether the printing platform is flat, and whether the lamp is lit normally.
What Are The Protective Measures When Using UV Lamps?
It is strictly prohibited to look directly at the UV light source, and you should wear anti-UV goggles; avoid opening the hatch cover when the machine is working.
How To Determine The UV Lamp Needs To Be Replaced?
When curing is degraded, colors are dark, or prints show signs of not drying, the lamp energy should be tested and replaced at the manufacturer's recommended intervals.
Can I Use Non-Original Ink?
Yes, but you need to use an ink that matches the UV light band.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Does UFL330 Support OEM/ODM?
Supports customization of appearance, color scheme, logo, interface language, nameplate and packaging; with MOQ and lead time requirements. For more information, please contact us.
Does It Support Installment?
This item is not eligible for installment payments.
Do You Offer Expedited Shipping?
It is available, but will incur different shipping costs depending on the area. Please consider this and contact us for clarification.
Are Additional Modules Included In This Product?
Adding additional modules requires you to contact us to purchase them, or you can purchase the corresponding modules on your own. The products on this page are for printing devices only and do not include modules.
How Do I Install Additional Expansion Device Modules?
Different modules have different installation methods, if you buy the corresponding module from us, we will help you install it and ship it to you. If the module is bigger, we will also provide the corresponding installation video so that you can install it by yourself.
Does This Product Have A Visual Recognition Extension?
This product also has a visual recognition extension, so if you need it, please contact us for a purchase negotiation.
Does Installing Mods Not Provided By This Product Affect The Warranty?
If a third-party module causes damage to a part covered by the warranty, then it is not eligible for warranty service. If the problem is with the part itself and not the module, then it can be covered under warranty.
What If The Printed Ink Is Not Drying?
This is usually because the parameters of the UV lamp are not set properly, try setting the wavelength to match the UV ink.
What Should I Do If My Printing Appears Blurry?
Please readjust the software settings if you experience blurring. If no blurring occurs with other settings, consider replacing the print pattern.
What If There Is A Lag In The Printing Process?
Please make sure that the data cable is connected properly and that there are no problems with the network.
What Should I Do If I Get An Error In Printing?
This is usually related to the print software settings, please adjust the software settings. If the problem persists after the software settings have been adjusted, the pattern does not meet the output requirements of the software.
What Checks Need To Be Done Before Using A UV Flatbed Printer?
You should check the status of the printhead, the ink level, whether the cleaning fluid is sufficient, whether the printing platform is flat, and whether the lamp is lit normally.
What Are The Protective Measures When Using UV Lamps?
It is strictly prohibited to look directly at the UV light source, and you should wear anti-UV goggles; avoid opening the hatch cover when the machine is working.
How To Determine The UV Lamp Needs To Be Replaced?
When curing is degraded, colors are dark, or prints show signs of not drying, the lamp energy should be tested and replaced at the manufacturer's recommended intervals.
Can I Use Non-Original Ink?
Yes, but you need to use an ink that matches the UV light band.
