Medium-Sized Package
Anti-Collision Test

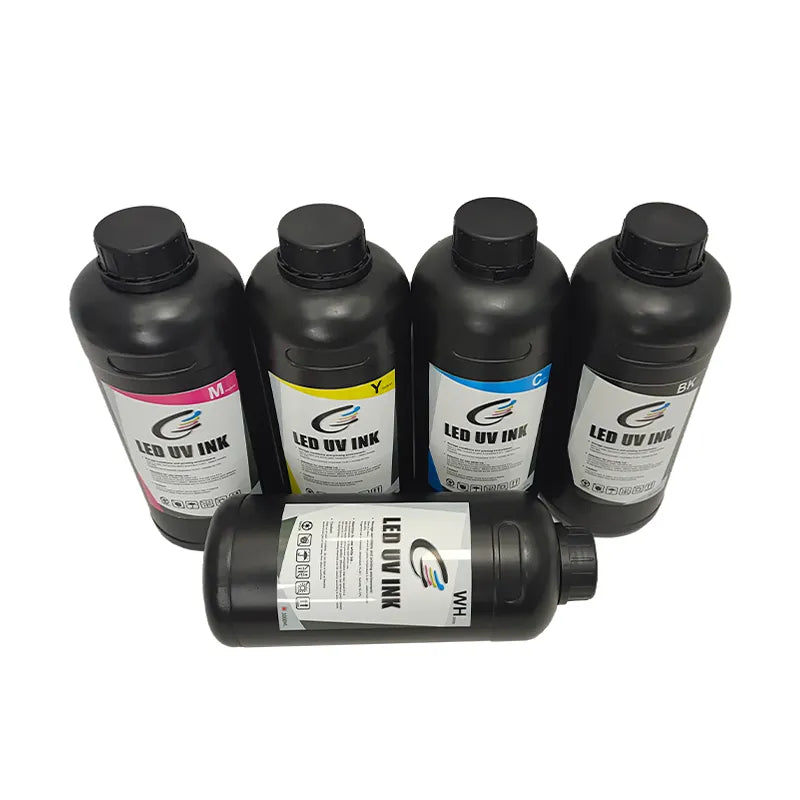

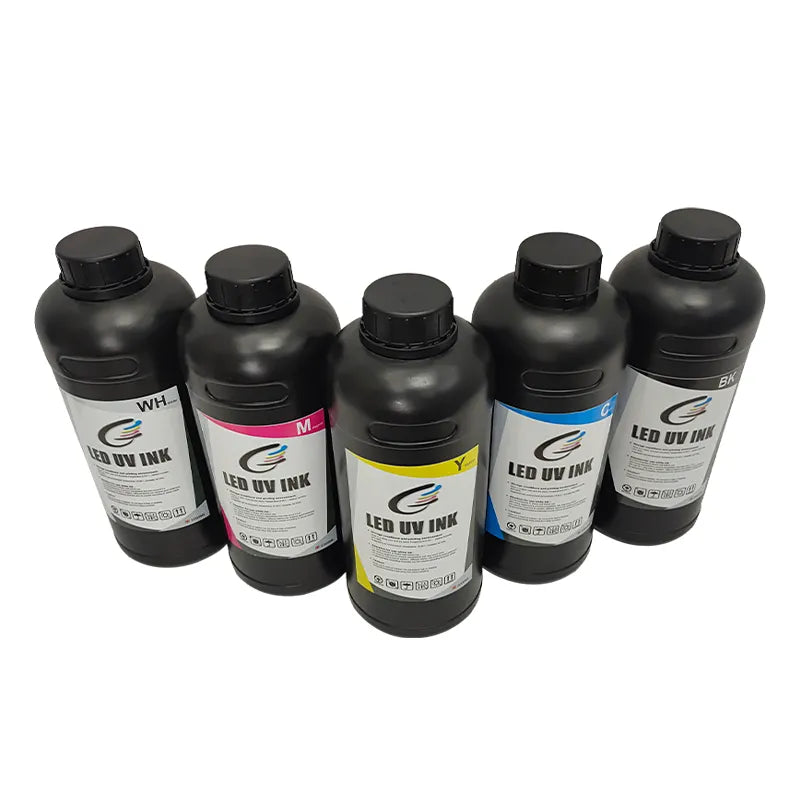

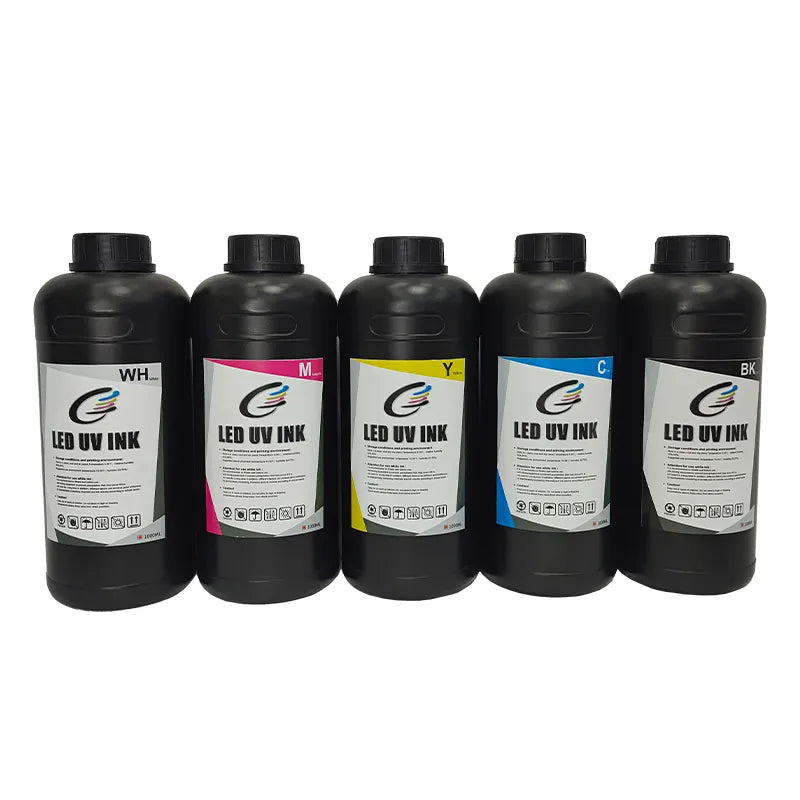

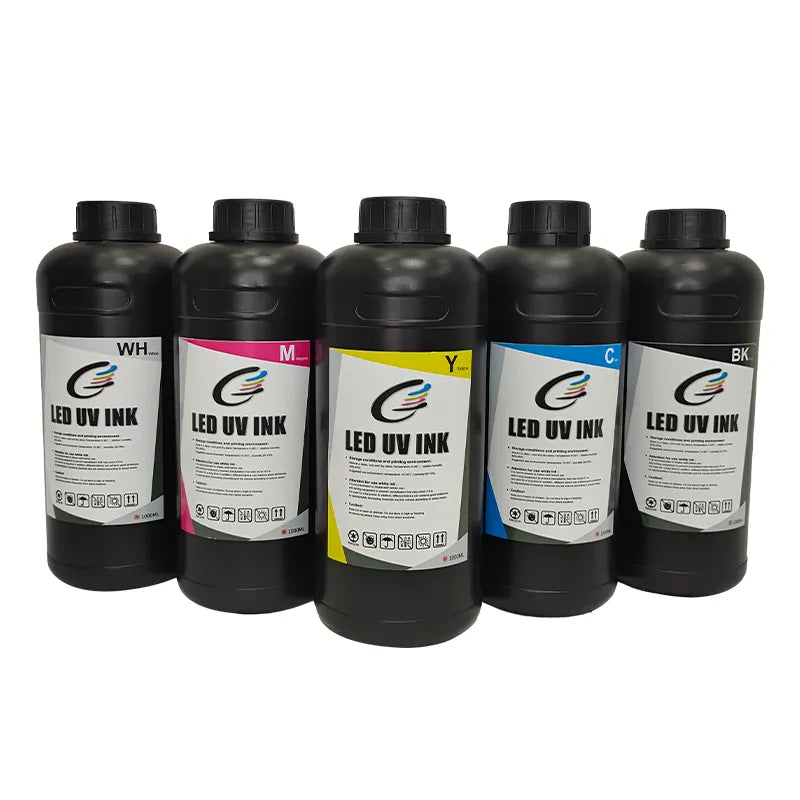

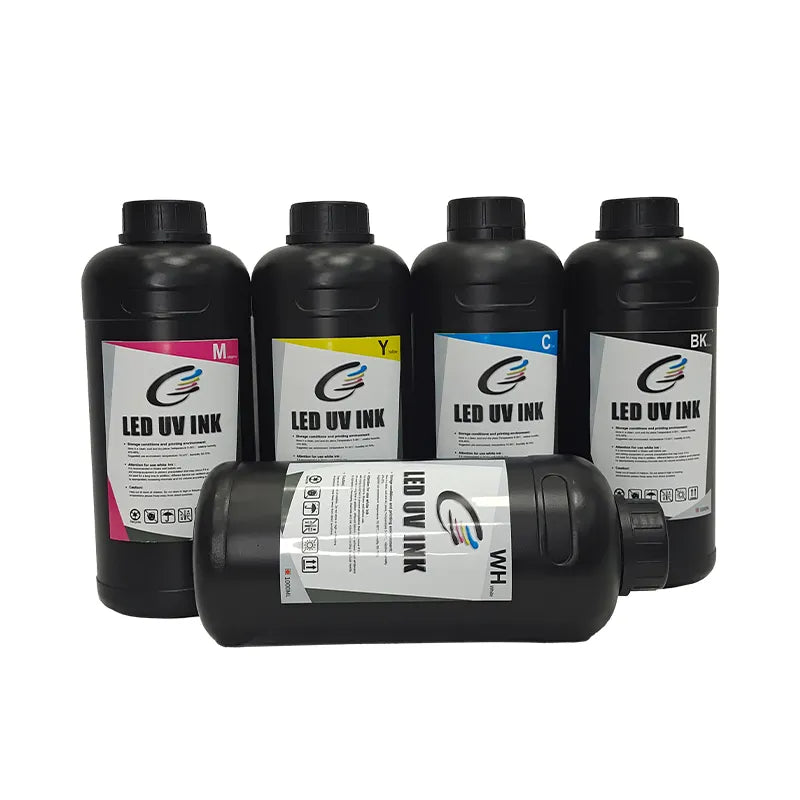

| Model | UV8010 | Brand | ZYJJ / OEM | Ink Type | UV Curable Rigid Ink | Color | Black, Cyan, Magenta, Yellow, White, Varnish | Printhead Applicable | XP600, I3200, TX800, DX5, DX7, GEN5, GEN6 |
| Curing Wavelength | 395 nm ± 5 nm | Lamp Intensity | ≥ 4 W/cm² | Viscosity | 10 - 20 cps (45°C) | Surface Tension | 25 - 32 mN/m | Particle Size | ≤ 0.3 μm |
| Curing Hardness | 3H - 5H | Operating Temperature | 15 - 35°C | Shelf Life | 12 Months | Capacity | 1000ml | Net Weight | 1.125kg/bottle |
Swipe →
Our Hard UV Ink Features
1
Full Exterior Customization
Everything, from the bottle itself to the label, is customizable. You can provide us with the label, or we can create one for you. The bottle's appearance and capacity can also be specified.
2
Curing & Adhesion Optimization
Utilizing high-purity photoinitiators and optimized oligomers ensures clean curing and uniform film formation. It exhibits high curing efficiency under the appropriate wavelength of light.
3
Ink Anti-Settling Optimization
The UV monomers and dispersants are optimized to keep the ink stable during long-term storage without sedimentation or viscosity fluctuation. Reduce clogging after long-term storage.
1
2
3
4
5
6
4
High Hardness, Strong Resistance
The ink cures into a high-hardness coating, providing excellent scratch resistance and surface durability. The ink's viscosity curve is optimized to minimize nozzle clogging.
5

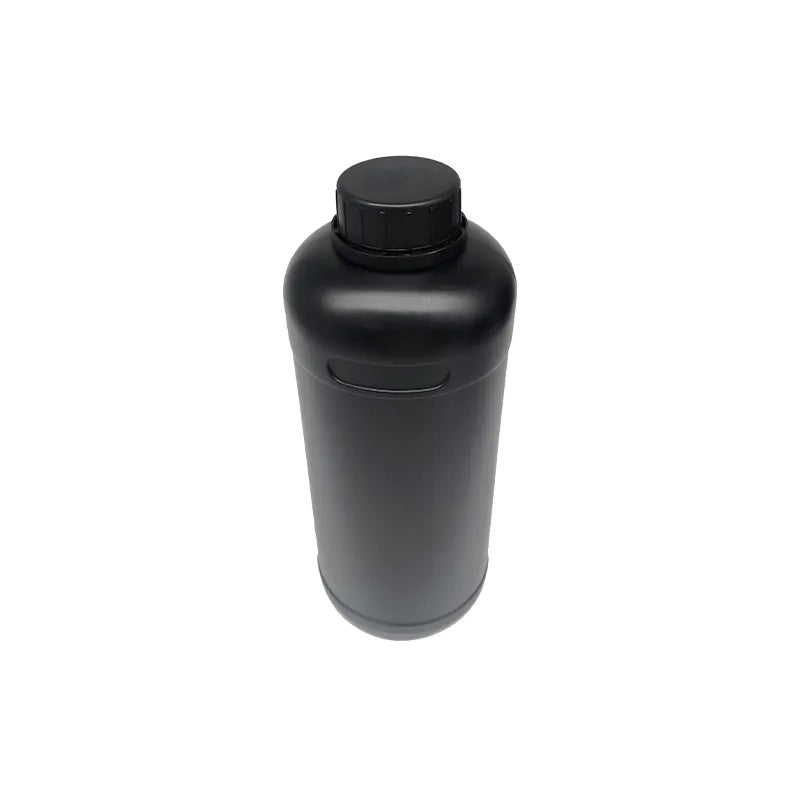

UV Varnish Compatibility Optimization
Optimized for UV varnish compatibility, it works with the base color coat to achieve higher levels of abrasion and chemical resistance, significantly improving surface hardness and durability.
6
Quality Testing, Complete Certificates
We can provide all quality inspection reports for easy comparison with other suppliers. We also have various certifications to facilitate customs declaration and standard recognition.
Product Video

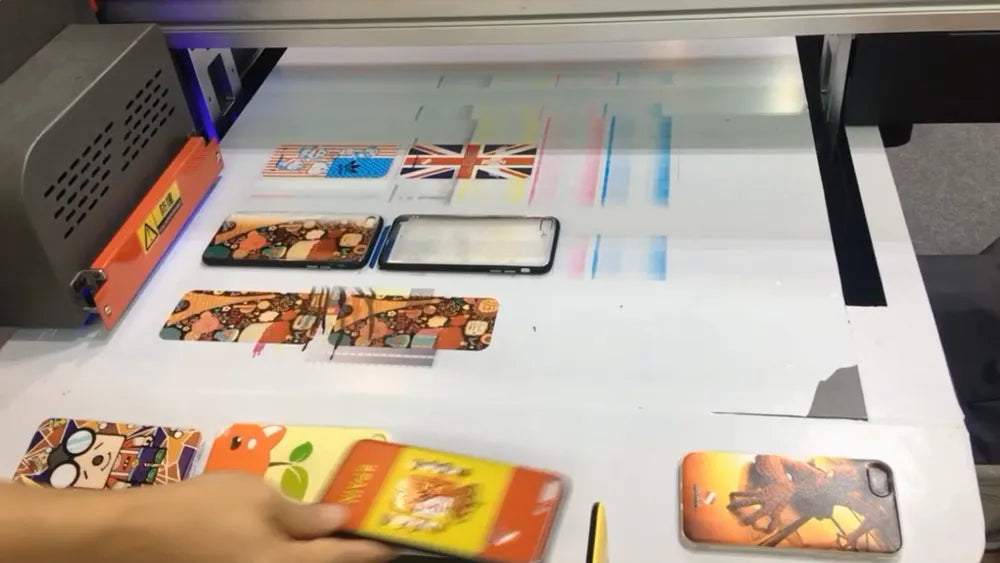

Phone Case Printing Video
Ink Printing Detail Display
Phone Case Printing Video
Ink Printing Detail Display

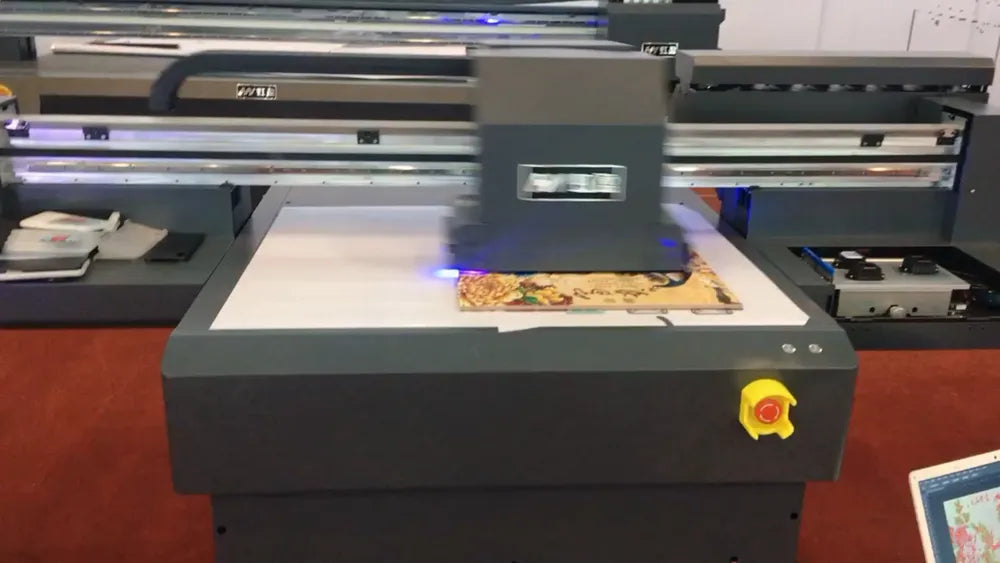

Decorative Painting Printing Video 1
Decorative Painting Printing Video 2
Decorative Painting Printing Video 1
Decorative Painting Printing Video 2
Ink Application
Customize Your Own Unique Ink Packaging!
We can customize ink bottle labels just for you. You can just provide us with a Logo, and we will create a corresponding label for you based on your Logo information. Of course, if you are not satisfied with the label made, you can contact us for a replacement.
Customizable Independent Main Label
Provides styling of the main label.
Offers Multiple Bottle Appearance Options
You can choose the look according to your preference.
Customization Of Box Appearance
Customized box packaging allows you to forward the goods directly.
Support 1L - 20L
7 Days Fast Shipping
Minimum Order Req.
Provide Complete Testing Reports & Product Certifications
We can provide various third-party accredited product test reports and third-party certification certificates. If you don't find the certificate you need, please let us know and we will arrange for certification.
Our Testing Reports Include …
- CE-EMC Test
- CE-LVD Test
- RoHS Test
- VOCs Test
- Air Transport Inspection Report
- Marine Transport Inspection Report
Our Certifications Include …
- CE Certification
- RoHS Certification
- OEKO-TEX® STANDARD 100
- GRS (Global Recycled Standard)
- BSCI Certification
- ISO 9001
- TRCU/EAC Certification
MSDS, TDS Complete
Certified Traceable
Number Traceability
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Is There A Warranty On This UV Ink?
There is no concept of warranty for consumables such as ink. But we will provide long-term after-sales service support. As long as you use our ink problems, we will be for you to solve. Using other brands of ink will not enjoy this after-sales service support.
Why Is Varnish Sold Separately From Ink?
Varnish and ink do not have the same cost per bottle and consider the process. Varnish can be used with other brands, ink takes into account the ICC curve and it needs to come in sets to ensure an accurate curve.
What Should I Do If The Ink Is Not Dry And Yellowish?
This has to do with the power value of the UV lamp, not dry is too low power, yellowish is too high power.
What Should I Do If There Is A Broken Line Or Brush Bar In Printing?
This is usually caused by a blockage in the print head, you can solve this by cleaning the print head. At the same time check whether the ink cart has been collision.
What If The Printed Colors Don't Match?
Please ensure that the ICC profile for the ink is loaded correctly and that the ink cartridges are installed in the correct order.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Is There A Warranty On This UV Ink?
There is no concept of warranty for consumables such as ink. But we will provide long-term after-sales service support. As long as you use our ink problems, we will be for you to solve. Using other brands of ink will not enjoy this after-sales service support.
Why Is Varnish Sold Separately From Ink?
Varnish and ink do not have the same cost per bottle and consider the process. Varnish can be used with other brands, ink takes into account the ICC curve and it needs to come in sets to ensure an accurate curve.
What Should I Do If The Ink Is Not Dry And Yellowish?
This has to do with the power value of the UV lamp, not dry is too low power, yellowish is too high power.
What Should I Do If There Is A Broken Line Or Brush Bar In Printing?
This is usually caused by a blockage in the print head, you can solve this by cleaning the print head. At the same time check whether the ink cart has been collision.
What If The Printed Colors Don't Match?
Please ensure that the ICC profile for the ink is loaded correctly and that the ink cartridges are installed in the correct order.
