| Model | DTF330B | Brand | ZYJJ | Appearance | Light Blue | Ink Type | DTF Ink | Cartridge | Continuous Ink Supply System |
| Printhead | XP600 * 2 | Ink Capacity | 250ML | Ink Color | K,C,M,Y,LC,LM,W | Paper Type | PTE Membrane | Heating Method | Two-Stage Heating |
| Print Direction | Bi / Uni-Direction | Nozzle Config | 1080 / 6 Rows | Print Size | 310mm | Print Software | Wellprint | Mapping Software | Maintop |
| Connection Port | 3.0USB Port | Print Method | Continuous Roll | Operating System | Windows 7/10/11 | Package Size | 920 * 620 * 560mm | Body Size | 780 * 510 * 450mm |
| Gross Weight | 42.8kg | Net Weight | 28.8kg | Power Req. | AC220V / 110V +/-10% 50/60HZ 100W |
Printing Speed | 4Pass: 4m²/h 6Pass: 3㎡/h 8Pass: 2㎡/h |
Print Resolution | 4Pass: 540dpi 6Pass: 720dpi 8Pass: 1440dpi |
Swipe →

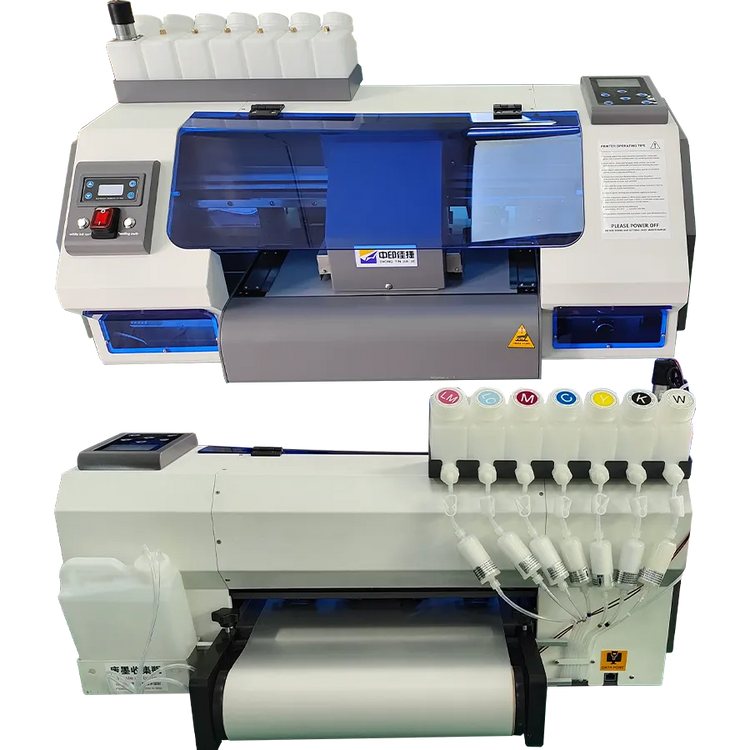

DTF330 DTF Printing Machine Features
1

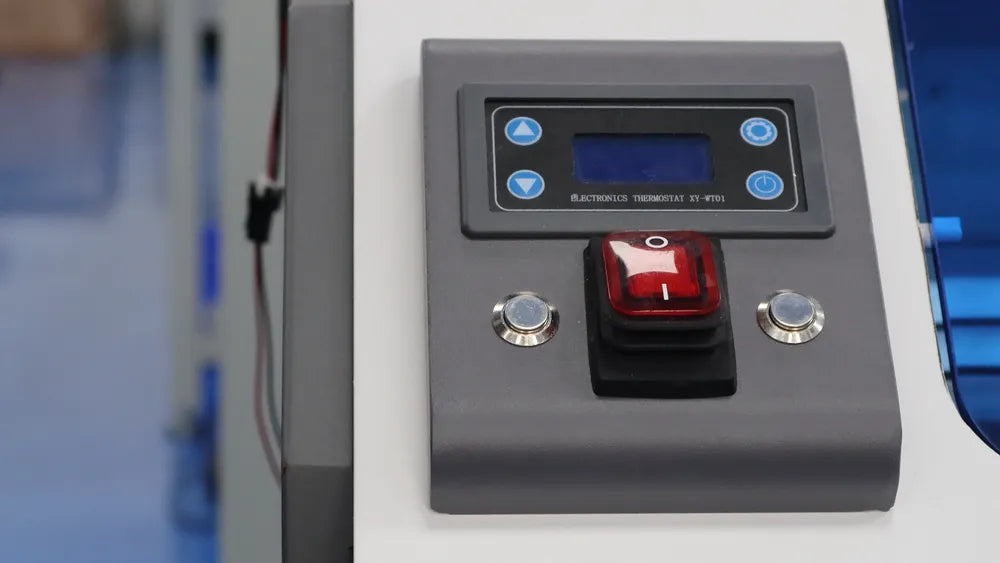

Intelligent Switch Control System
Combines a heat switch, white ink circulation switch, power switch and heat controller in one unit to quickly manage the actual needs of the printing process.
2
Adjustable Ink Supply System
Adjustable ink supply system, 5-color and 7-color mode can be switched at will. Can also be changed to 6-color output, double white ink output to increase efficiency.
3
Autonomous Maintenance Warehouse
Designed with maintenance stations on both the left and right sides. The ink stack is periodically cleaned after the white ink circulation is enabled. Cleaning can be performed automatically or manually.
1
2
3
4
5
6
4
Gigabit Network Transport Interface
Offers Gigabit Ethernet connectivity, working with printing software to achieve greater output and efficiency. Enables faster data transmission response.
5
Smart Ink Circulation System
The built-in ink cart structure includes an ink circulation system, different from the white ink circulation, which keeps the ink flowing continuously and reduces nozzle clogging.
6
Smart Adsorption/Heating Platform
The adsorption and heating functions are automatically turned on during printing to ensure that the film is free of water and the ink is sufficiently dry, and can be turned off by itself.
Product Video

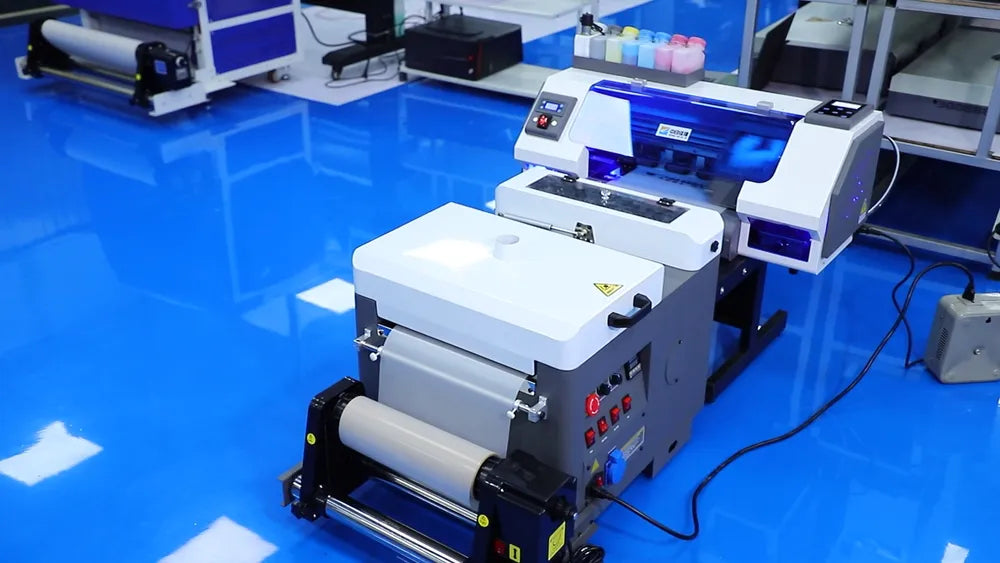

Full Printing Process Show
Equipment Particulars Show
DTF Printing Process Show
Full Printing Process Show
Equipment Particulars Show
DTF Printing Process Show
Differences Compared to A3/A4 DTF Printers
DTF330 Dual Printhead Roller DTF Printer
VS
DTF18050R A3 Desktop Roll DTF Printer
White Ink Mixing System
Printhead Cooling System
Vacuum Adsorption System
Constant Pressure System
White Ink Circulation System
Desktop DTF Machines Comparison
DTF330
$2,300.00
Printing Width (0 - 600mm)52%
Printing Speed (4Pass: 1 - 10m²/h)40%
Printing Stability (8h Continuous)72%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)48%
Daily Output (10m²/h * 8h/day)36%
Premium Color, High Precision
Wide color set and strong multilayer control deliver crisp details and opaque whites.
DTF350
$1,680.00
Printing Width (0 - 600mm)58%
Printing Speed (4Pass: 1 - 10m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)50%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)67%
Maintenance Freq. (Lower = Better)71%
Daily Output (10m²/h * 8h/day)54%
Cost-Effective, High Speed
High-speed printing at a low cost. Experience the advantages of skyrocketing daily production.
DTF18050R
$1,000.00
Printing Width (0 - 600mm)52%
Printing Speed (4Pass: 1 - 10m²/h)25%
Printing Stability (8h Continuous)64%
Color Support (1 Color Per 10%)50%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)56%
Maintenance Freq. (Lower = Better)50%
Daily Output (10m²/h * 8h/day)21%
A3 Entry-Level, Multi-Style Options
Entry-level roll printer, available in multiple colors and appearances. Strong personalization.
DTF330
$2,300.00
Printing Width (0 - 600mm)52%
Printing Speed (4Pass: 1 - 10m²/h)40%
Printing Stability (8h Continuous)72%
Color Support (1 Color Per 10%)70%
Layer Printing (1 Layer Per 33%)66%
Operation Simplicity (1 - 10 Level)65%
Maintenance Freq. (Lower = Better)48%
Daily Output (10m²/h * 8h/day)36%
Premium Color, High Precision
Wide color set and strong multilayer control deliver crisp details and opaque whites.
DTF350
$1,680.00
Printing Width (0 - 600mm)58%
Printing Speed (4Pass: 1 - 10m²/h)60%
Printing Stability (8h Continuous)60%
Color Support (1 Color Per 10%)50%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)67%
Maintenance Freq. (Lower = Better)71%
Daily Output (10m²/h * 8h/day)54%
Cost-Effective, High Speed
High-speed printing at a low cost. Experience the advantages of skyrocketing daily production.
DTF18050R
$1,000.00
Printing Width (0 - 600mm)52%
Printing Speed (4Pass: 1 - 10m²/h)25%
Printing Stability (8h Continuous)64%
Color Support (1 Color Per 10%)50%
Layer Printing (1 Layer Per 33%)33%
Operation Simplicity (1 - 10 Level)56%
Maintenance Freq. (Lower = Better)50%
Daily Output (10m²/h * 8h/day)21%
A3 Entry-Level, Multi-Style Options
Entry-level roll printer, available in multiple colors and appearances. Strong personalization.
What’s In The Box
| Item | Qty | Item | Qty | Item | Qty |
|---|---|---|---|---|---|
| DTF330 DTF Printer | 1 Unit | Cleaning Kit + Hose + Spare Tube Fitting | 1 Set | Limiter | 1 Pcs |
| Printhead XP600 | 2 Pcs | Ink Damper |
16 Pcs (6 Included, 10 Spares) |
Product Manuals | 1 Pcs |
| Feeder System | 1 Set | Accessories Kit | 1 Kit | Product Certificate + Warranty Card | 2 Pcs |
| Waste Ink Device | 1 Set | Card USB Drive (Drivers/Software/Tutorials) |
2 Pcs (Software + Information) |
Data Cable | 1 Line |
| 250ML Ink Set (C/M/Y/K/W*2) | 1 Set | Accessory Screw Bag | 1 Set | Power Cable | 1 Line |

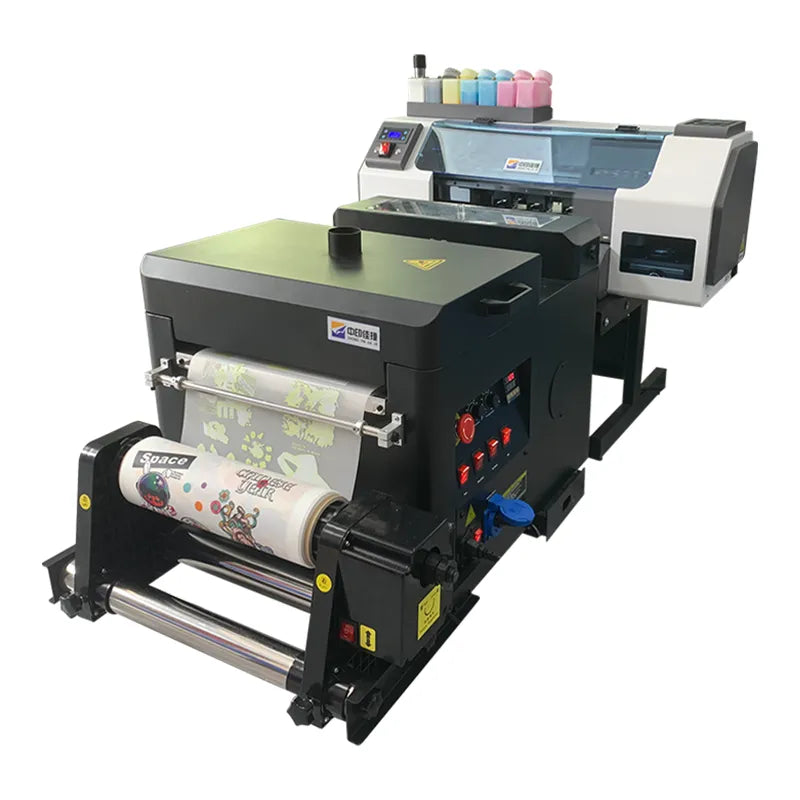

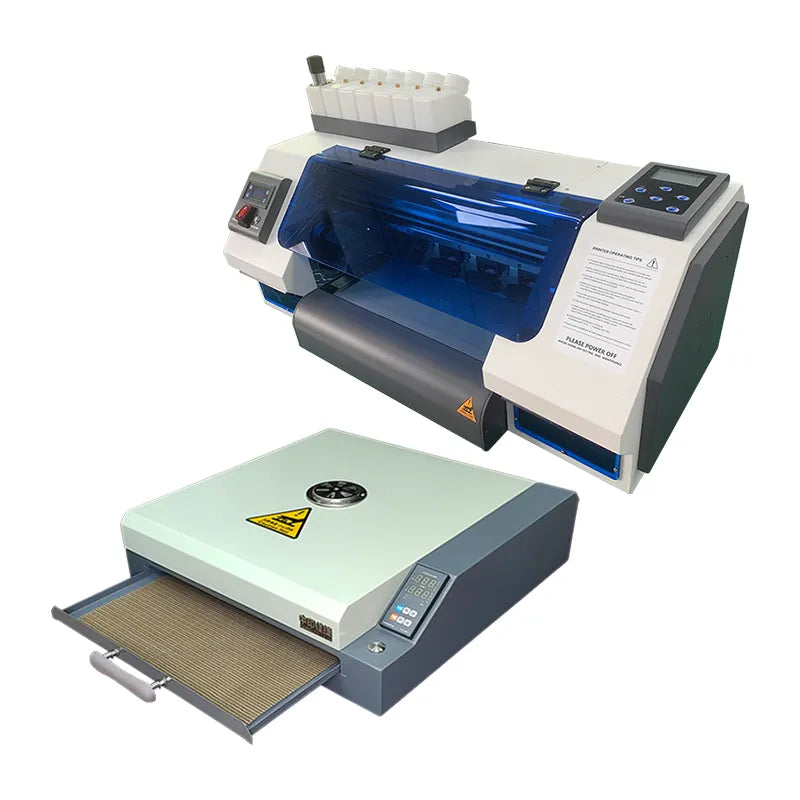

💡 If buying a kit with a Powder Shaker or Oven, check its product page for the full list. This list applies to one printer only.
FAQ
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Do You Offer Discounts For Bulk Purchases?
If you buy more than 10 units, we can offer discount to you, please contact us for details.
Are There Other Ways To Purchase This?
We have an online store on Alibaba where you can make your purchase.
Can I Replace It With Another Device After Purchase?
It is not allowed to replace the current equipment with other equipment once purchased, please look after it before purchasing.
Is In-Home Installation Available?
In-home installation service is available, but not available in individual countries or regions. You can consult us for details.
Is It Difficult To Install On My Own?
It's not big at all, and you can easily install the unit according to our manuals and guides.
Are There Any Electrical Standard Requirements?
Normally no, just meet the basic household electricity. Special needs can be found by consulting us.
Is The Whole Set Of Equipment Difficult To Install?
It's straightforward. The printer needs installation, just follow the guide. The powder shaker is plug-and-play.
How Long Does It Take From Power Up To Complete Printing?
First power-up (with printhead wetting/nozzle check) is about 10-15 minutes; daily re-power-up is faster. Printing averages 3-5 minutes depending on software settings.
Do You Provide ICC Profiles?
Provides ICC and RIP presets for commonly used materials; redoing linearity and ICC is recommended when using third-party inks/films.
Can I Use Third-Party Ink?
It is recommended to use supplies and ICCs that have been verified by the machine; unverified inks may affect stability and warranty terms.
Which Design Software Is Supported?
AI / PS / CorelDRAW export common formats (PNG / TIFF / PDF); RIP import can be.
How To Prevent White Ink Printhead Clogs?
Built-in circulation and automatic agitation; daily/weekly maintenance according to SOPs significantly reduces risk.
Daily/Weekly/Monthly Maintenance Tips?
Day: nozzle inspection, wiping nozzle scraper; week: waste ink bin/cover station deep cleaning; month: line/pump inspection and datum calibration.
What Is The Lifespan Of Various Wear Parts?
Squeegees/sponges are replaced according to wear and tear, and dampers/ink tubes are replaced according to length and condition; printheads are precision parts, and their life and maintenance are related to ink quality.
What If The Downtime Exceeds One Week?
Perform long term shutdown moisturizing/sealing process as per manual, do line and nozzle restoration before restart.
Frequently Asked Questions About Purchases
Check out our FAQ page where we've put together all the questions related to your purchase.
Do You Offer Discounts For Bulk Purchases?
If you buy more than 10 units, we can offer discount to you, please contact us for details.
Are There Other Ways To Purchase This?
We have an online store on Alibaba where you can make your purchase.
Can I Replace It With Another Device After Purchase?
It is not allowed to replace the current equipment with other equipment once purchased, please look after it before purchasing.
Is In-Home Installation Available?
In-home installation service is available, but not available in individual countries or regions. You can consult us for details.
Is It Difficult To Install On My Own?
It's not big at all, and you can easily install the unit according to our manuals and guides.
Are There Any Electrical Standard Requirements?
Normally no, just meet the basic household electricity. Special needs can be found by consulting us.
Is The Whole Set Of Equipment Difficult To Install?
It's straightforward. The printer needs installation, just follow the guide. The powder shaker is plug-and-play.
How Long Does It Take From Power Up To Complete Printing?
First power-up (with printhead wetting/nozzle check) is about 10-15 minutes; daily re-power-up is faster. Printing averages 3-5 minutes depending on software settings.
Do You Provide ICC Profiles?
Provides ICC and RIP presets for commonly used materials; redoing linearity and ICC is recommended when using third-party inks/films.
Can I Use Third-Party Ink?
It is recommended to use supplies and ICCs that have been verified by the machine; unverified inks may affect stability and warranty terms.
Which Design Software Is Supported?
AI / PS / CorelDRAW export common formats (PNG / TIFF / PDF); RIP import can be.
How To Prevent White Ink Printhead Clogs?
Built-in circulation and automatic agitation; daily/weekly maintenance according to SOPs significantly reduces risk.
Daily/Weekly/Monthly Maintenance Tips?
Day: nozzle inspection, wiping nozzle scraper; week: waste ink bin/cover station deep cleaning; month: line/pump inspection and datum calibration.
What Is The Lifespan Of Various Wear Parts?
Squeegees/sponges are replaced according to wear and tear, and dampers/ink tubes are replaced according to length and condition; printheads are precision parts, and their life and maintenance are related to ink quality.
What If The Downtime Exceeds One Week?
Perform long term shutdown moisturizing/sealing process as per manual, do line and nozzle restoration before restart.
